CHECKING THE COOLANT
IN THE RADIATOR
RadiatorCapacity:8.1ℓ
AuxiliaryCoolantTankCapacity:1ℓ
The auxiliary coolant tank con-
nected to the radiator will auto-
matically add coolant to the radia-
tor when the radiator needs more
coolant. Please check the coolant
level in the auxiliary coolant tank.
The coolant level between “LOW”
and “FULL,” is acceptable. If the
level is below “LOW,” add enough
coolant to raise the level within the
LOW-FULL range. Do not overfill
coolant above the FULL line.

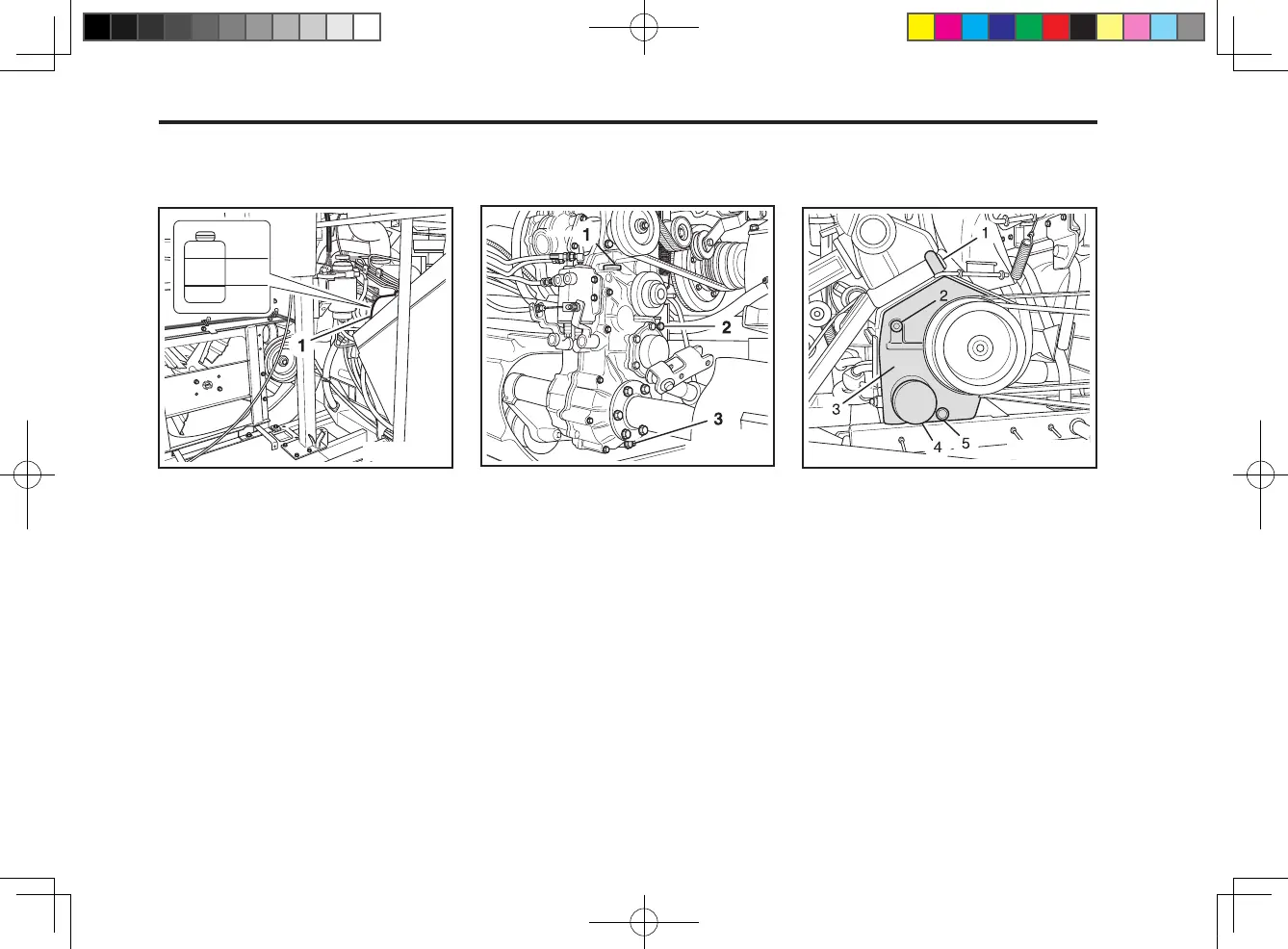

(1) Auxiliary Coolant Tank
(A) FULL (B) LOW
417O844A
CHECKING THE TRANSMIS-
SION CASE OIL
If oil c o m es o u t w h e n th e oil
checking bolt (M8) is loosened,
the oil amount is proper. If not,
use a funnel to pour the oil upto a
proper amount.
(1) Oil Filler Cap (3) Drainage Plug
(2) Oil Checking Bolt
417O845A
CHECKING THE HYDRAULIC
OIL
If a little amount of oil comes out
when the oil checking bolt (M8) is
loosened, the oil amount is proper.
If not, use a funnel to pour the oil
upto a proper amount.
(1) Oil Filler Cap
(2) Oil Checking Bolt
(3) Oil Tank
(4) Hydraulic Oil Filter
(5) Drain Plug
