When adjusting or inspect-
ing the reaping clutch, set
the clutch lever to STOP.
•
CAUTION
417O852A 417O853A

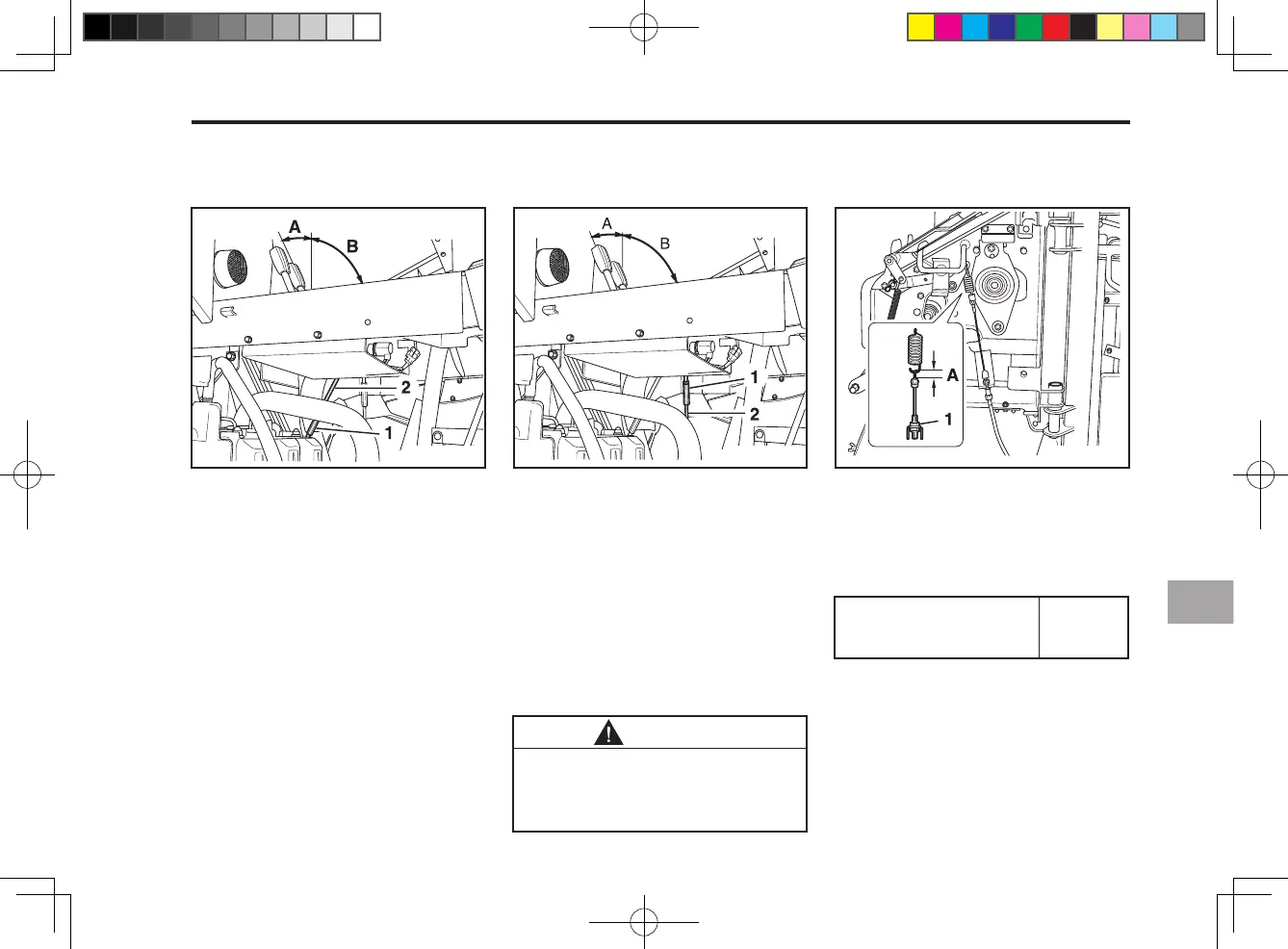

THRESHING CLUTCH ROD
(1) Holding Bracket
(2) Threshing Clutch Rod
(A) Clearance for Free Movement
(B) Operating Range (90°)
Disengage the threshing clutch
and raise up its clutch lever verti-
cally. Then, adjust the length of
the rod to have some clearance
for free movement.
REAPING CLUTCH ROD
Disengage the reaping clutch and
raise up its clutch lever vertically.
Then, adjust the holding bracket
to have some clearance for free
movement.
When the clutch is engaged, the
spring length is 102 mm.
(1) Holding Bracket
(2) Reaping Clutch Rod
(A) Clearance for Free Movement
(B) Operating Range (90°)
B21O866A
ADJUSTING THE STRAW
DISCHARGE SELECTION
CABLE
THE STRAW CUTTER UNIT
(1) Adjusting Bolt (2) Elongation: 5 mm
Elongation of the Return
Spring
5 mm
