417O849A
(1) Oil Cooler Fins
417O850A

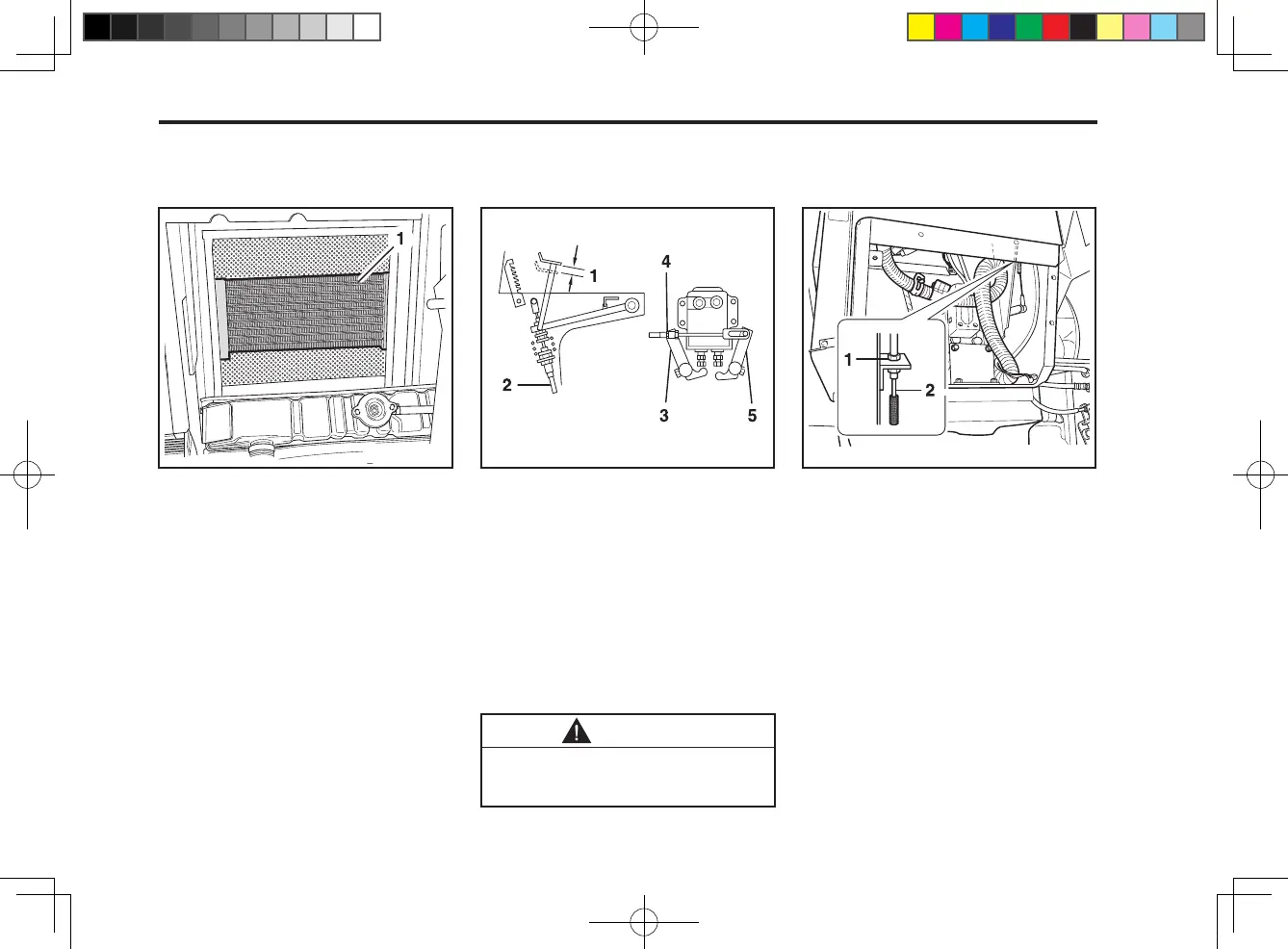

ADJUSTING THE PARKING
BRAKE CABLE
(1) Clearance for Free Moving: 0~5 mm
(2) Parking Brake Cable
(3) Side Clutch Lever (Right)
(4) Holding Bracket
(5) Side Clutch Lever (Left)
Adjust the cable to allow the park-
ing brake to move freely between
0~5 mm.
During the adjustment, never pull
out the side clutch levers.
Replace the cable at every
300 hours or every 2 years.
•
CAUTION
ADJUSTING THE POWER
BRAKE CABLE
417O851B
(1) Holding Bracket
(2) Power Brake Cable
If you want a quick responding
brake to the power steering lever,
adjust the brake cable length.
However, a too quickly responding
brake may bring an excessive im-
pact on the combine because the
brake will stop the combine right
after the clutch’s disengagement.
Maintain a proper cable length.
To Next Page
