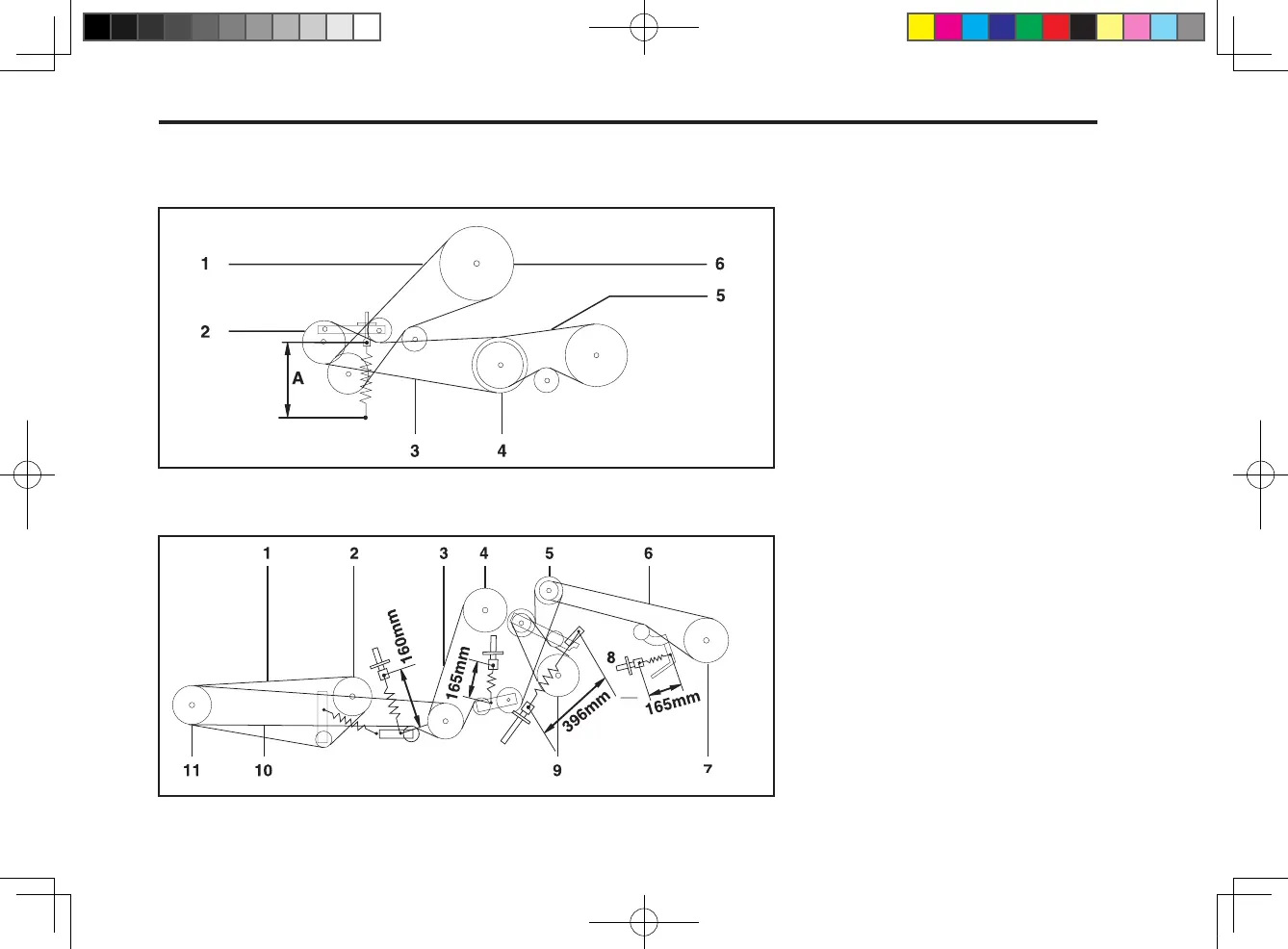

AROUND THE ENGINE
(1) HST Pulley
(2) Reaping Drive Belt LB54
(3) Reaping Pulley
(4) Threshing Drive Belt C385 (2 EA.)
(5) Engine Pulley
(6) Transmission Drive Belt REC B49
(A) 193 mm
LEFT SIDE OF THE THRESHING
UNIT
(1) LB66 (A) 160 mm
(2) Blower (B) 165 mm
(3) LB108 (C) 396 mm
(4) Separator (D) 165 mm
(5) Dust Discharge Fan
(6) LB55
(7) Straw Cutter
(8) Oscillation
(9) LB42
(10) LB101
(11) Counter
