417O862A 417O863A 417O864A

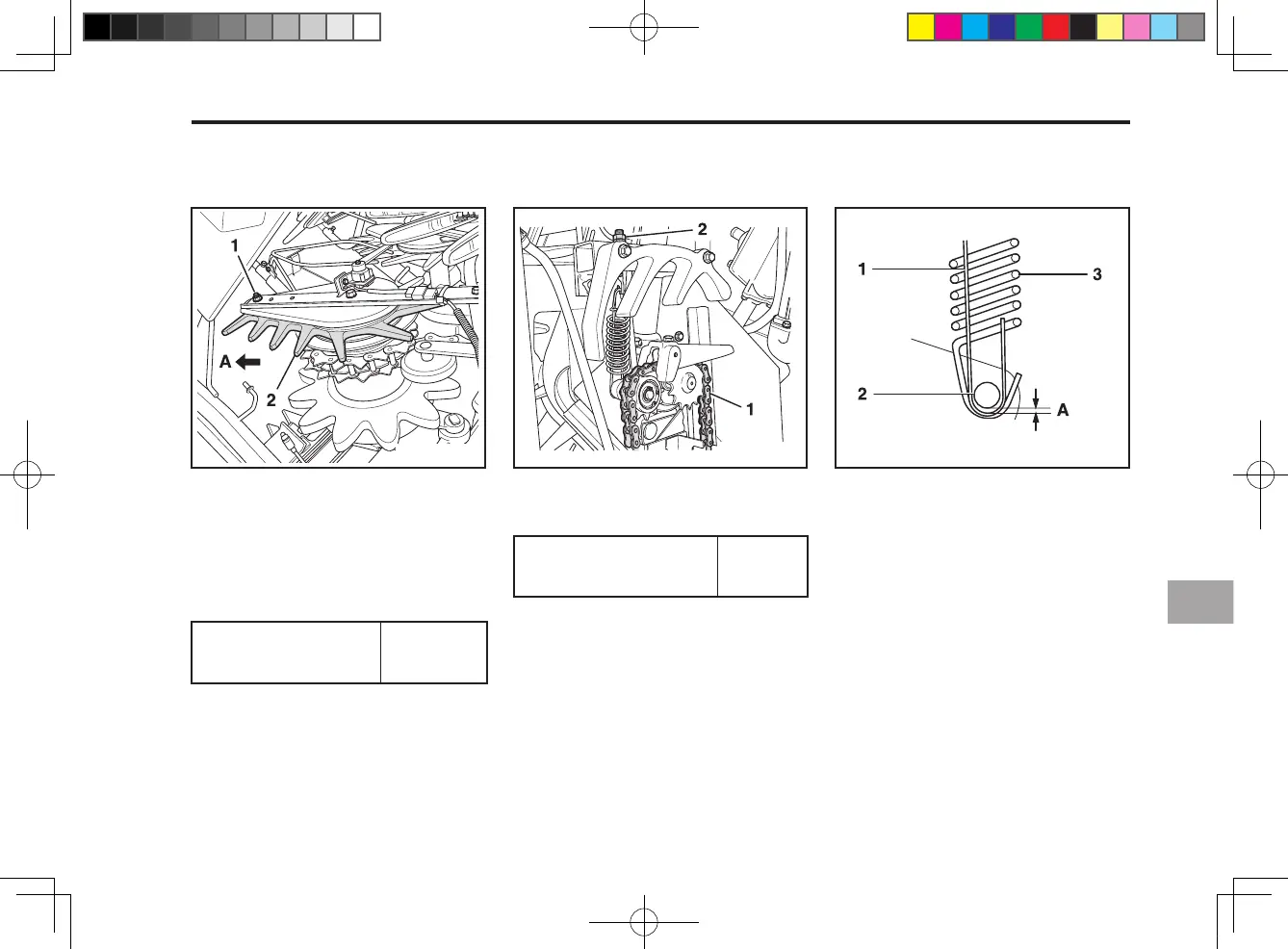

(1) Nut (2) Conveyor Belt
(A) Pull
Loosen the mounting bolt of the
master pulley and adjust the belt
tension. Then, tighten up the bolt.
ADJUSTING THE CONVEY-
OR BELT
(1) Elevator Chain
(2) Elevator Chain Tension Bolt
ADJUSTING THE ELEVATOR
CHAIN
(1) Elevator Tension Hook
(2) Bolt
(3) Elevator Tension Spring
(A) Adjust the gap to be 0 ~ 2 mm with the
tension bolt.
AcceptableDeection 5 ~ 10 mm
Gap (A) 0 ~ 2 mm
To Next Page
