6. Lower the ear side shaft sup-
porter and remove the cutter
shaft assembly.

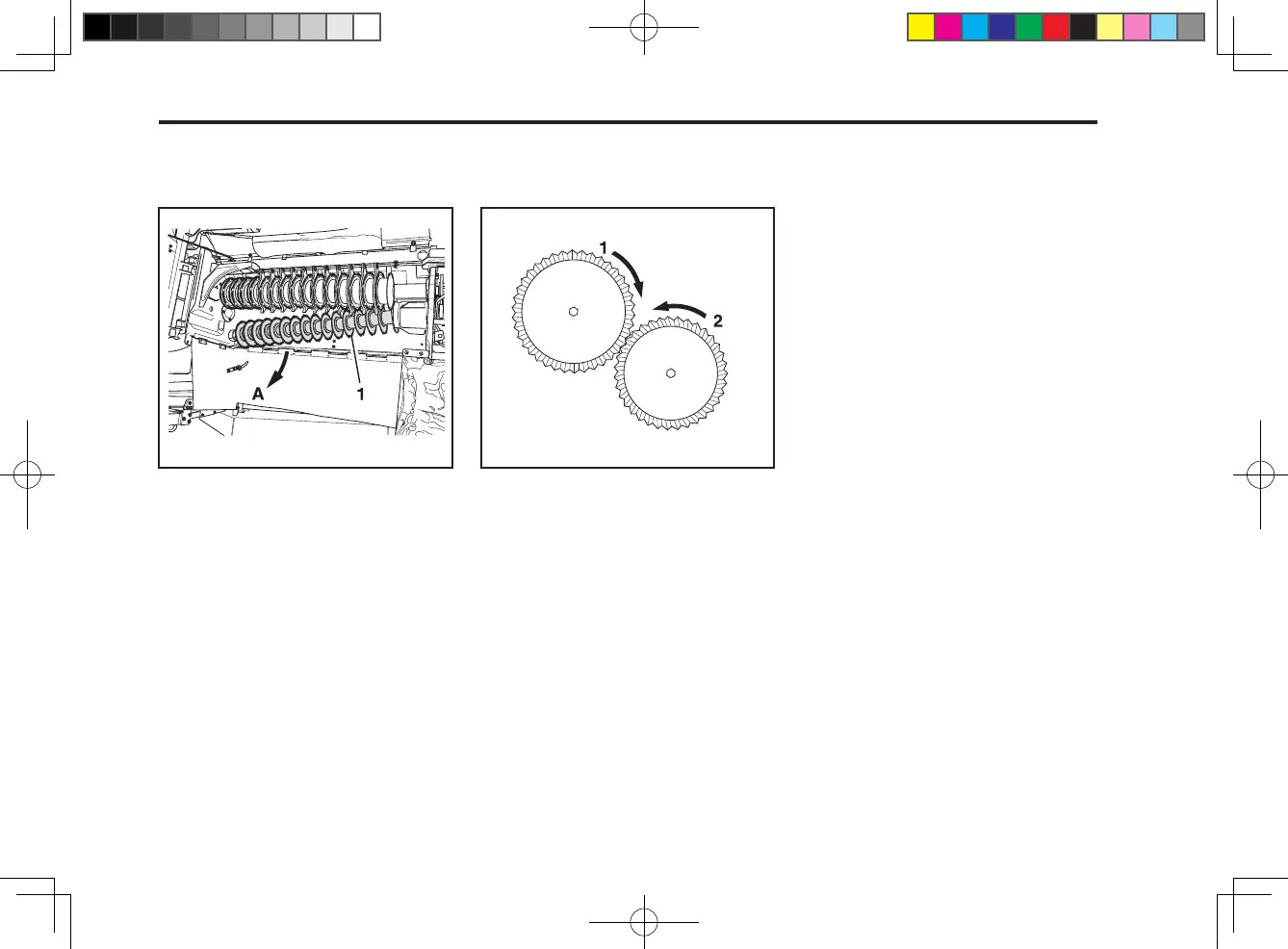

417O894A
(1) Cutter Shaft Assembly
(A) Pull forward
7.Puttheassemblydownonaat
and stable surface. Loose the
hex nuts.
8. After replacing the cutter blades,
install the blades by reversing
the previous steps. The direc-
tions of the blades and their
rotation are shown in the above
gure.
417O895A
(1) Direction of Rotation
(2) Direction of Rotation
