3. Remove the dust proof plate (2
M8 bolts).

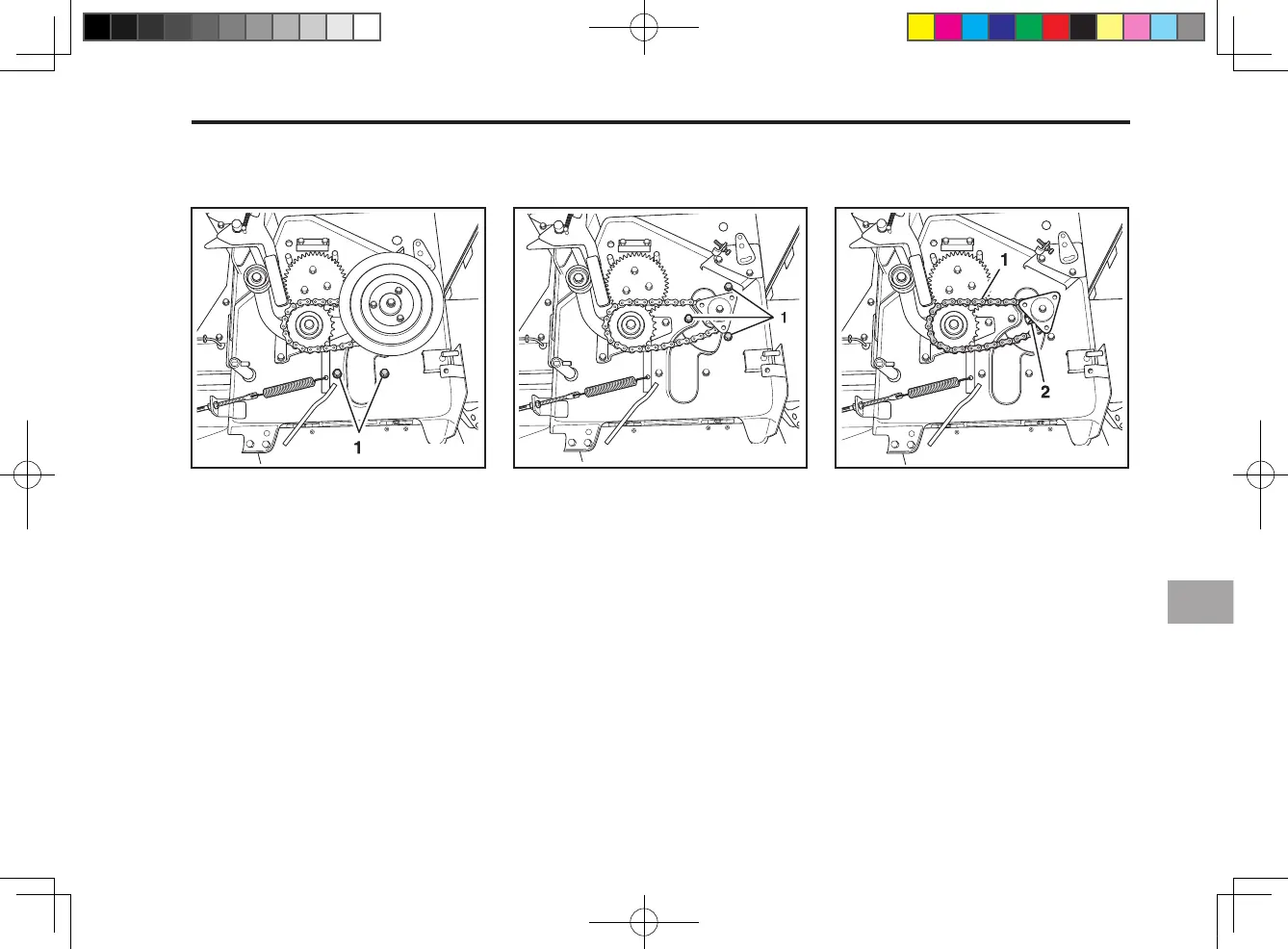

417O891A
(1) M8 Bolt
4. Remove the M8 bolts of the
shaft supporter. (3 from the ear-
side and 3 from the plant-side)
417O892A
(1) M8 Bolt (3 EA)
417O893A
(1) Chain 41 (2) Sprocket 12
5. Remove the Sprocket 12, Chain
41 and Spacer Tube 16 while
pulling the shaft supporter down.
