MAINTENANCE 8-63
8
TIPS FOR ASSEMBLING
When assembling the vertical au-
ger unit, place the auger to the fol-
lowingspeciedpositions.
1. Set the end of the first auger
blade in the middle of the com-
bine.
2.Settheattipoftheverticalau-
ger to be parallel to the horizon-
tal direction of the combine.
3. After installing the auger unit,
turn the auger once to check its
free rotation.

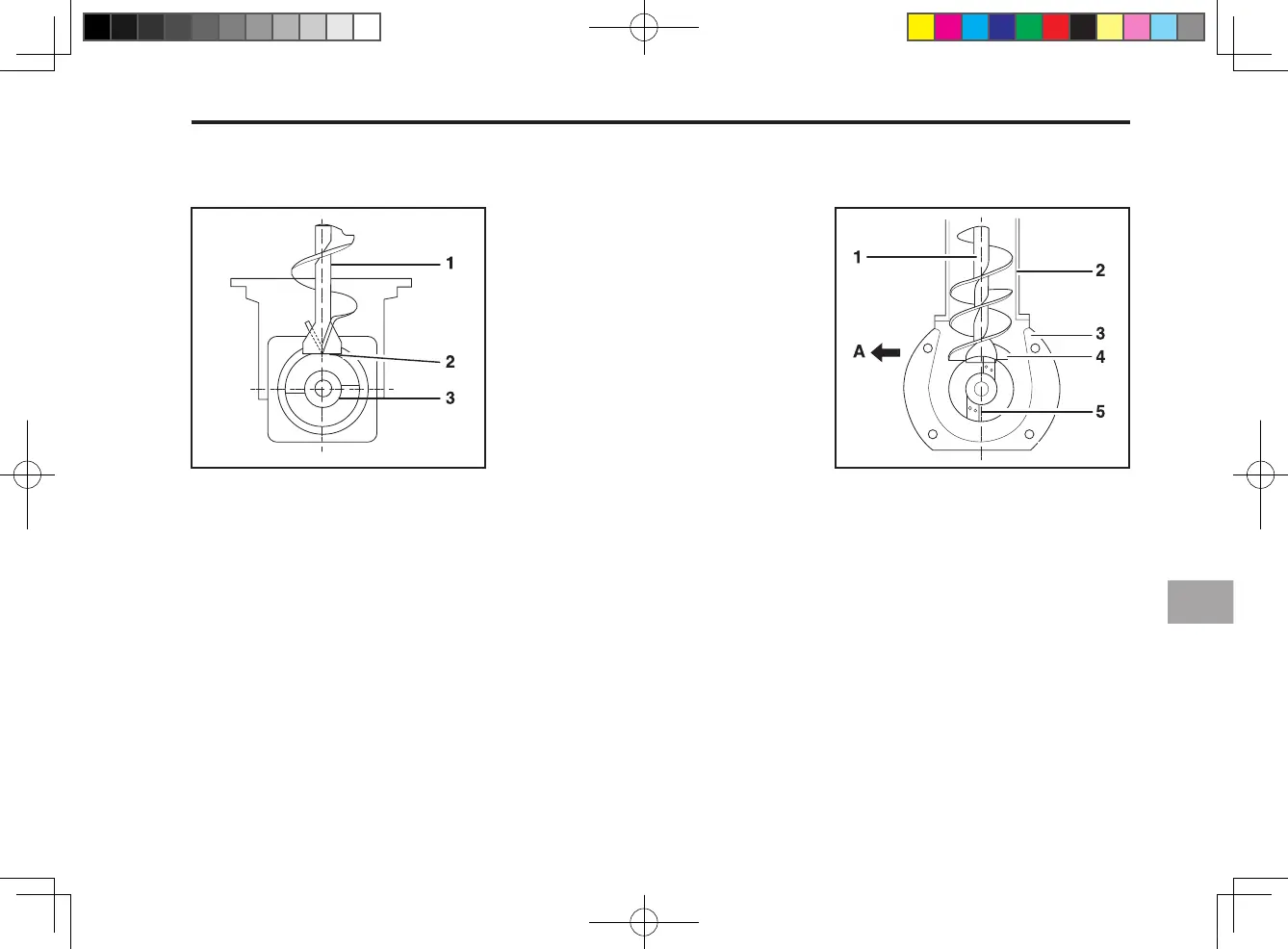

417O8A7A
(1) 1
st
auger shaft
(2) End of 1
st
Discharging Auger Blade
(3) Flat Tip of Vertical Auger
ASSEMBLING THE VERTI-
CAL AUGER UNIT
417O8A8A
(1) Vertical Auger Shaft
(2) Vertical Auger Case
(3) 1
st
Bevel Case
(4) Flar Tip of Vertical Auger
(5) End of 1
st
Discharging Auger Blade
(A) Front of the combine
