(1) Fuel Gauge (3) Coolant Meter
(2) Engine Tachometer (4) Run-Hour Meter

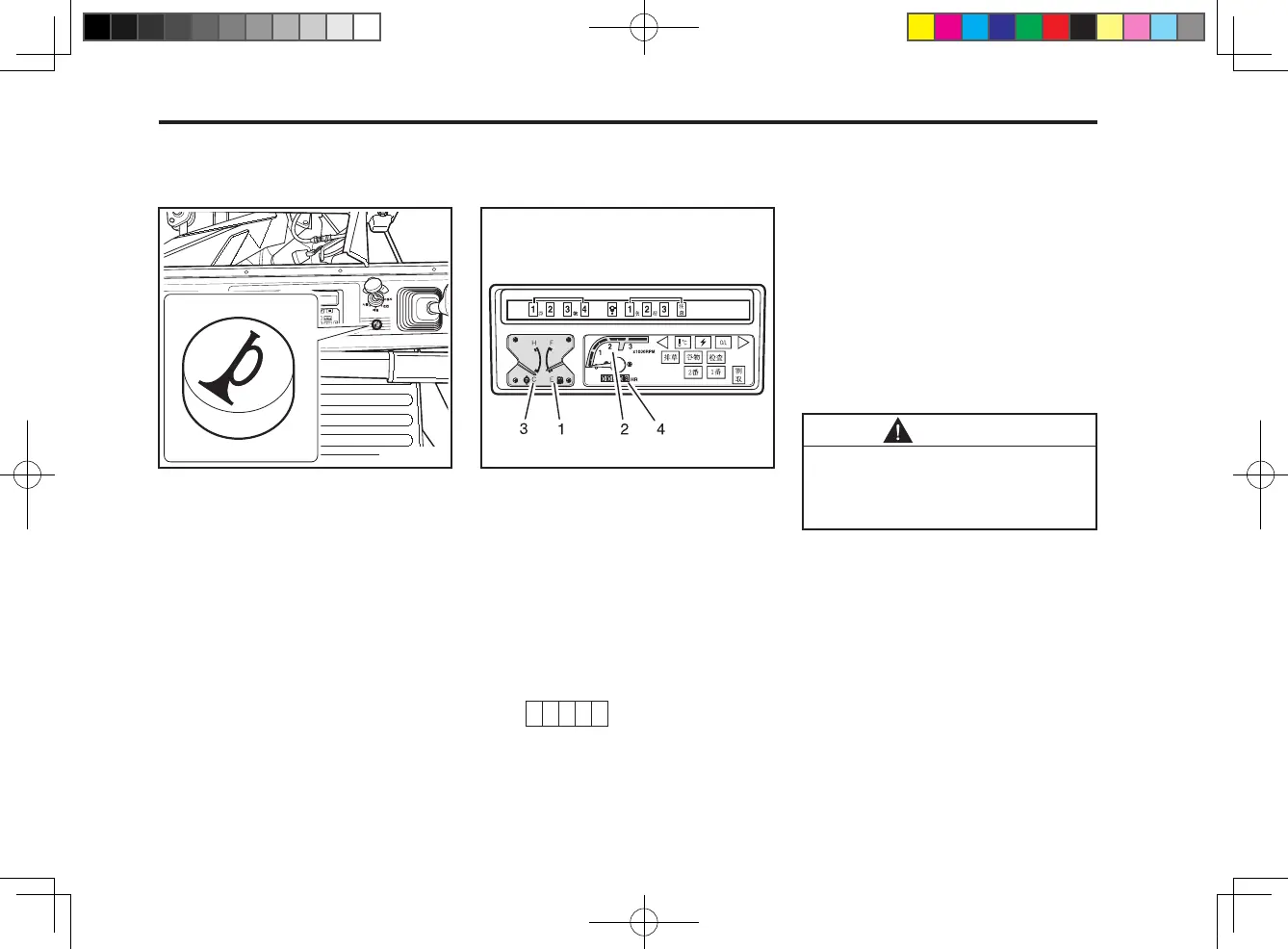

COMBINE STATUS PANEL
417O405A
If you press the horn button when
the main switch is ON, the horn
will sound.
If you press the horn switch when
the grain alarm sounds, the alarm
will stop.
HORN BUTTON
(1) Horn Button
417O404A
RUN-HOUR METER
The meter shows the cumulative
operating time of the engine. If
you multiply the number within the
white box by 6, you will get the ac-
tual operating time to the minute
level.
E.g.)
That is, 12 hours and 24 minutes.
It indicates the engine’s speed in
revolutions per minute.
FUEL GAUGE
If the main switch is at ON, it
shows the amount of fuel in the
tank. If it is placed on other posi-
tions than ON, the indicator of the
gauge will be below E.
COOLANT TEMPERATURE ME
-
TER
If the main switch is on ON, it indi-
cates the coolant temperature.
If the switch is placed on other po-
sitions than ON, the needle of the
meter will go below C.
If coolant overheats, the overheat-
ing alarm will sound and the cool-
ant temperature lamp will icker.
ENGINE TACHOMETER
If the indicator is close to
E, replenish fuel as soon as
possible.
•
CAUTION
0 0 1 2 4
扌
4x6=24min
