Do not only rely on these
service alert lamps for your
routine checkups. Conduct
other checkup as specified
in this manual.
•
CAUTION
GRAIN GAUGE
The gauge shows the amount of
the grain when turning the main
switch to ON. If the hopper is full,
the lamp will be on. Empty the
grain hopper right away.
LOAD GAUGE
The gauge tells the load of the
threshing unit.
The larger the number, the greater
the load.
LEVEL INDICATING LAMPS

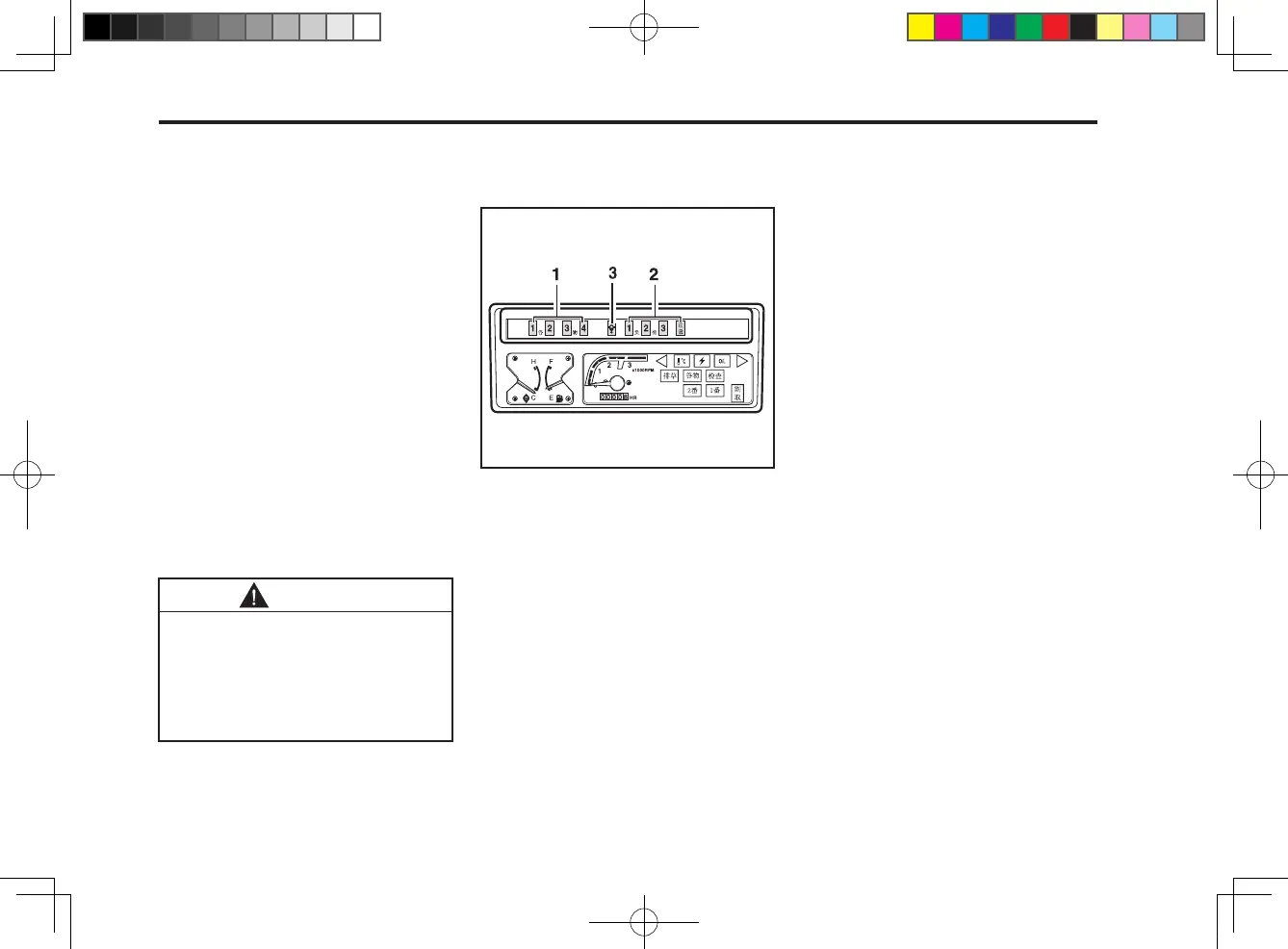

(1) Grain Gauge (2) Load Gauge
(3) Oil-Water Separation Warning Lamp
417O407A
OIL-WATER SEPARTION WARN-
ING LAMP
If water goes into the fuel filter,
this warning lamp comes on. If it
happens, take out the lamp sensor
from the lter and drain the water
out. (See 8-51 in Maintenance)
SELF-DIAGNOSIS ALARM LAMP (B)
This lamp is on when the micro
computer detects any malfunc
-
tions among the automated sys-
tems.
HOW TO USE
1. If you turn the main switch to
“ON,” with the engine off, the
lamp comes on. Then, it goes
off if no malfunction is detected.
2. If there is any malfunction with
the engine running, the lamp
comes on to indicate the mal-
function.
3. For detail, ref to the page 4-18.
