417O411A

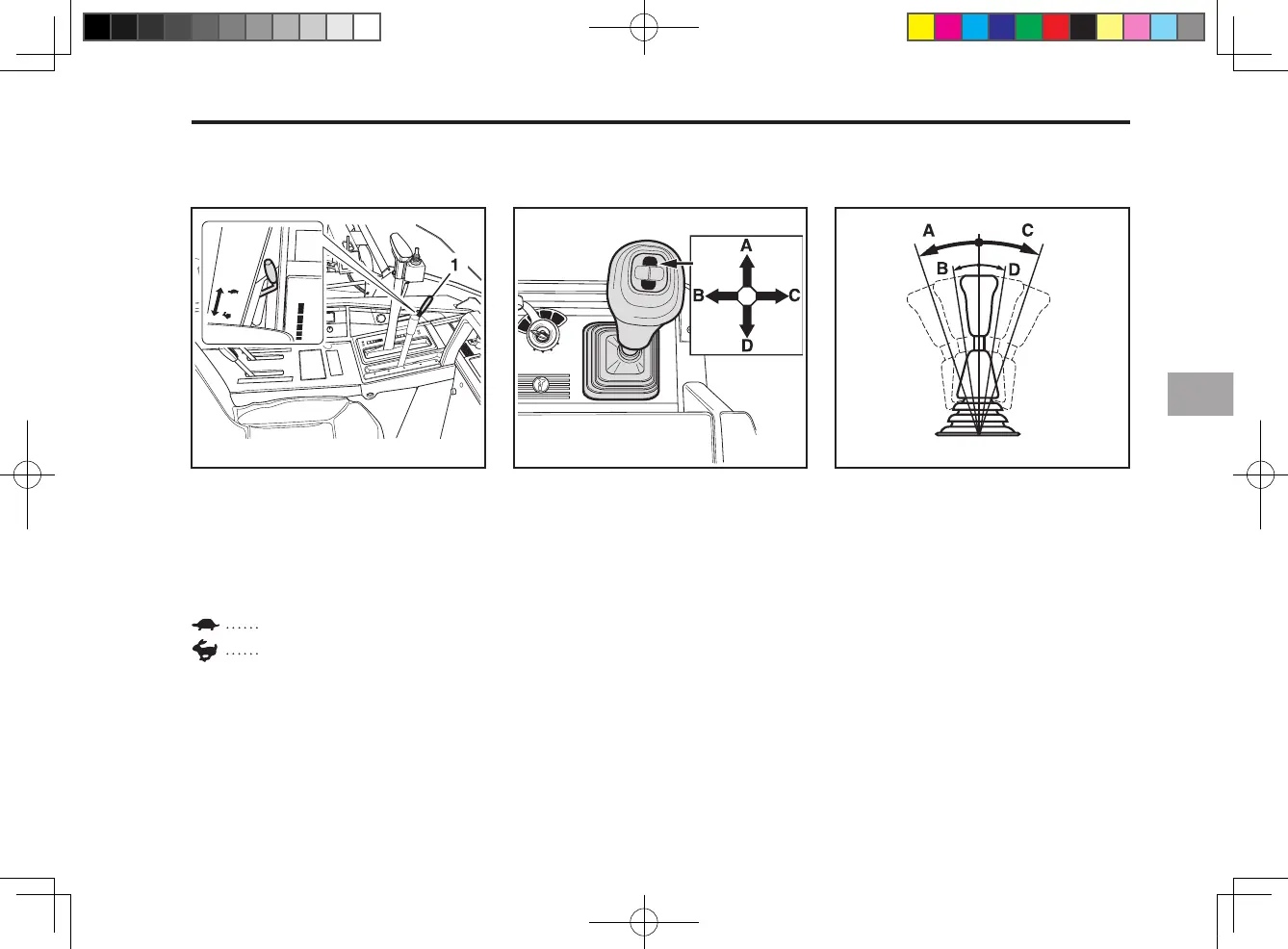

POWER STEERING LEVER
(A) Lowering the reaping unit
(B) Turning left
(C) Turning right
(D) Raising the reaping unit
With this one lever, you can raise
or lower the reaping unit, turn the
combine, or perform them at the
same time.
1. Tilting the lever back or forth
raises or lowers the reaping
unit.
(A) Turning left
(B) Turn to the left slightly
(C) Turning right
(D) Turn to the right slightly
2. The moving direction of the
combine is controlled by tilting
the lever. You can change the
moving direction completely or
slightly to the left or right.
Slight turn- tilt it slightly to the
desired direction
Complete turn-tilt it completely
to the desired direction.
•
•
417O412A 417O413B
This lever is to control the engine
speed.
Slow
Fast
