Working state Adjustment method
Normal The second slot
Too many scattering crops Adjust the lever upward
Too many crushed grains Adjust the lever downward
ADJUSTMENT OF FAN POWER
Location of adjustment lever Working condition
Weak
When there is considerable loss and poor
harvest
When the working speed is slow
Standard When under general working condition
Strong
When separation is bad and the drying
state of crops is not good
When the working speed is fast for lodged
crops
Weak
Standard
Strong
The adjustment lever should be changed when the threshing
unit is running.
Nozzle adjustment lever should be operated under the “engage”
state of threshing clutch. Never operate when the threshing
unit is shut off.
•
•
CAUTION
TREATING ADJUSTMENT
LEVER
T R E AT I N G A D J U S T M E N T
METHOD
Adjust according to the working
state as follows.
E32O701A

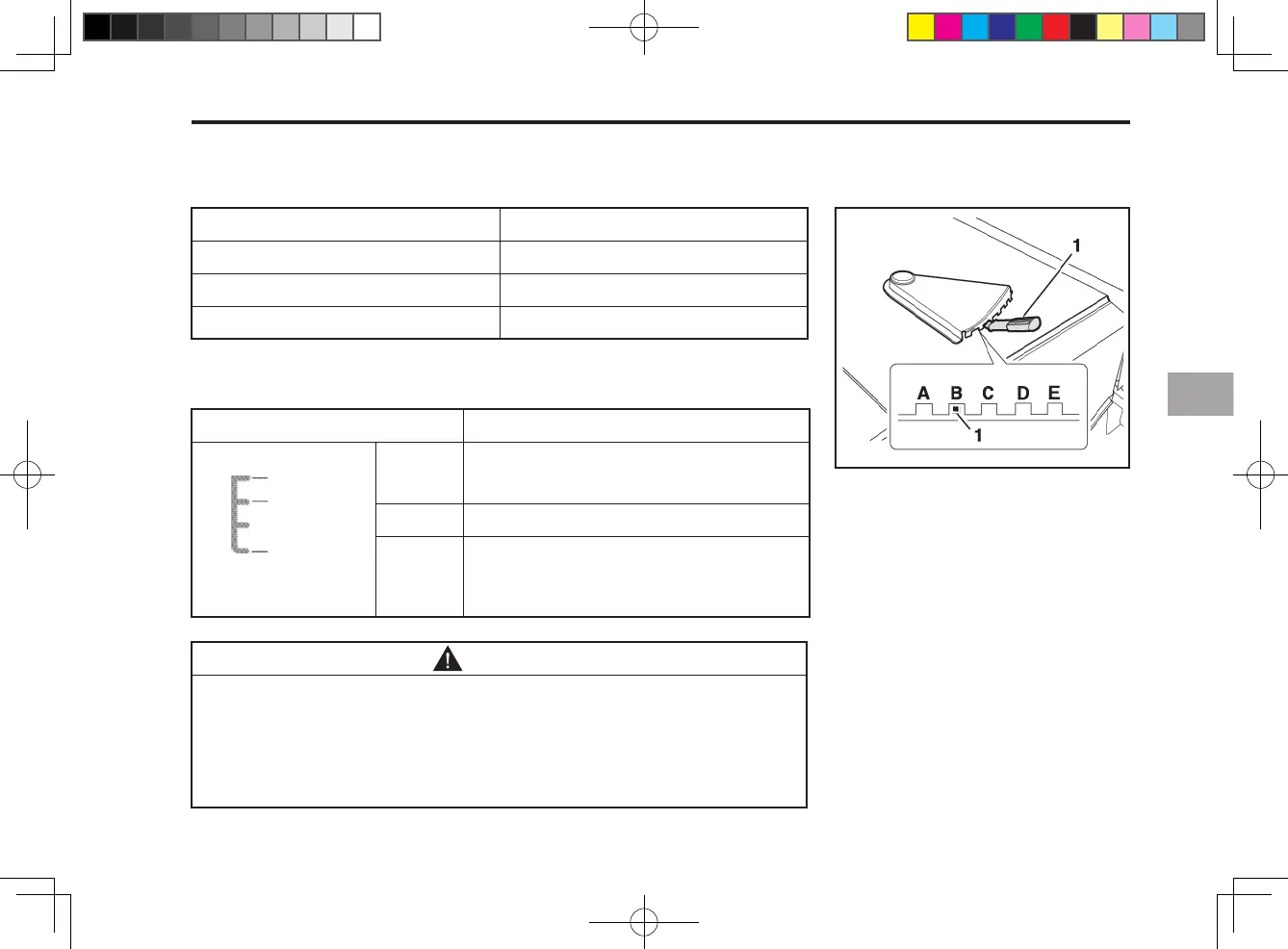

(1) Treating adjustment lever
(A) Close (B) Standard (C) Open gear 1
(D) Open gear 2 (E) Open gear 3
