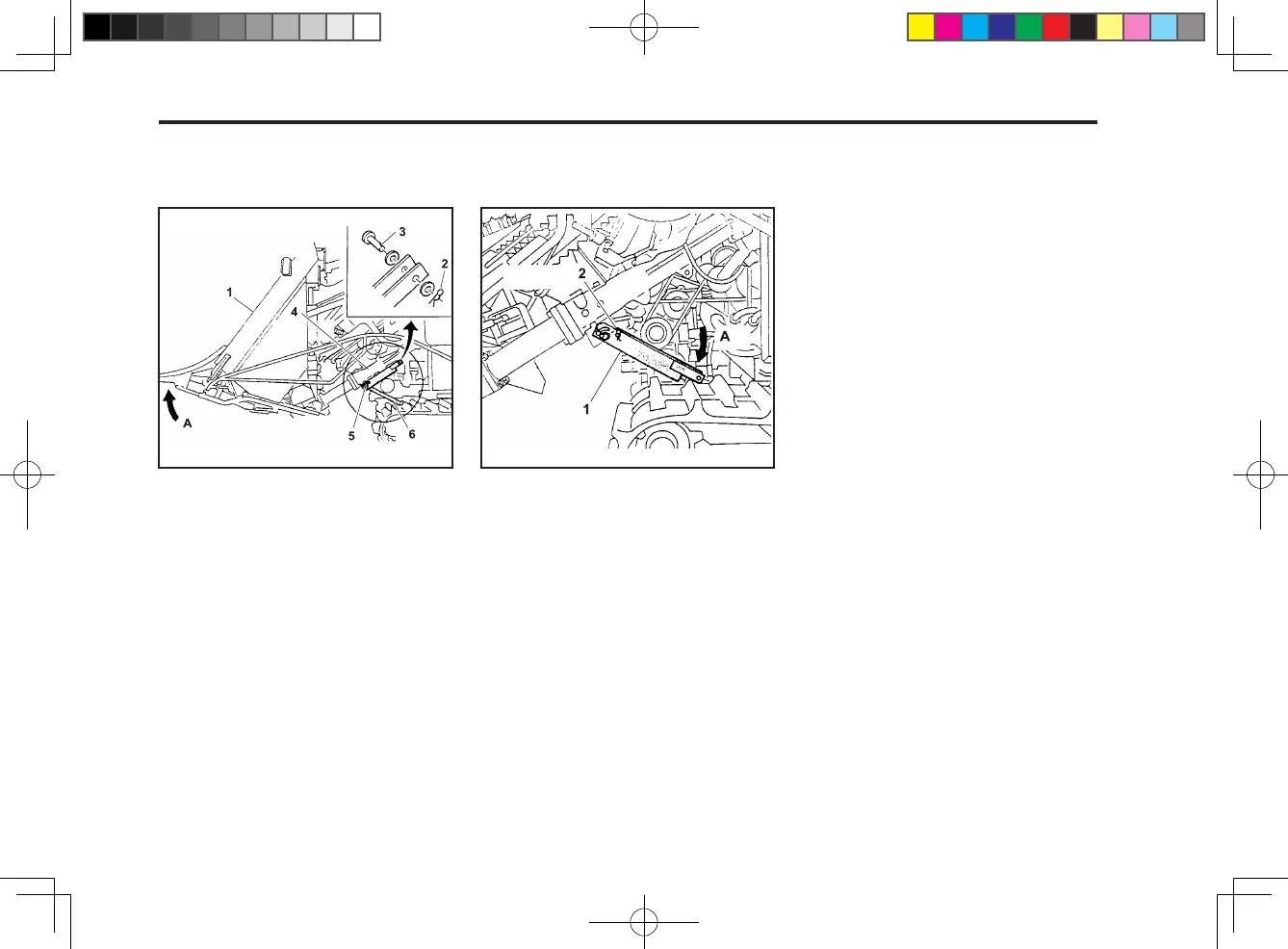

(1) Latch pin
(2) Locking pin and capped pin.
(A) Release
3. Apply the capped pin and lock-
ing pin that have been removed
in the positions shown in the
diagram below.
REMAVAL OF LATCH PIN
Operate in reverse order to pre
-
vent the header from lowering
(1) Hydraulic steering
shaft
(2) Locking pin
(3) Capped pin
(4) Harvester gear box
(5) Latch pin
(6) Oil cylinder
(A) Lift up
