5. Adjust the feeding depth con-
trol switch so that the end of
grain ears can be aligned with
“Threshing Depth Indicating
Mark.” You need to adjust it
once or twice in a eld.
6. When the plant sensors are
off at the end of the reaping
process, the automatic feed-
ing depth control stops and
the feeding depth will be main-
tained.
417O427A

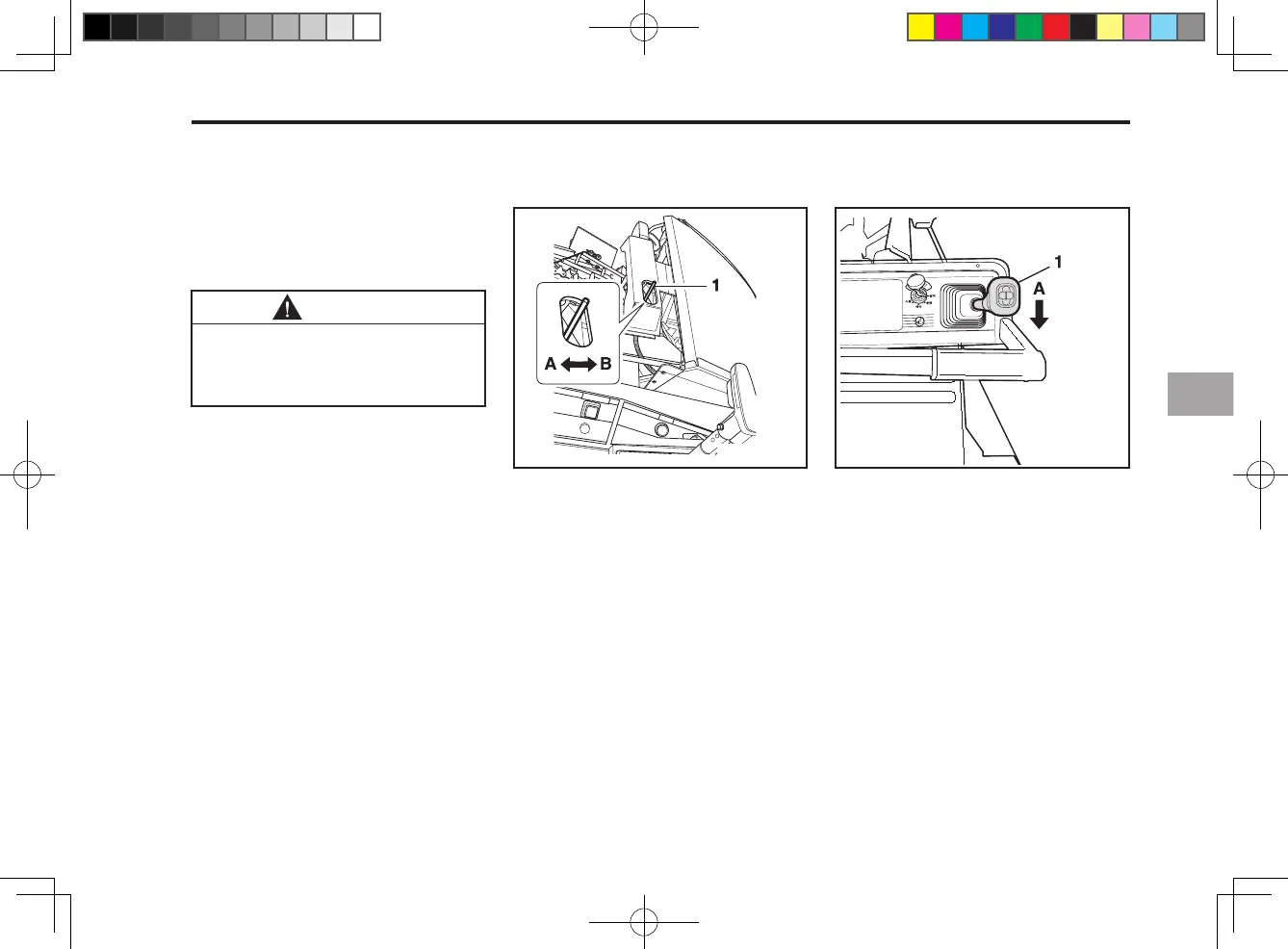

(1) Position Control Lever for the Feeding
Depth Control
(A) SHALLOW (B) DEEP
POSITION CONTROL LEVER
F O R T H E F E E D I N G D E P T H
CONTROL
1. Usually place it in the middle.
2. If the lever is pulled toward
“DEEP,” feeding depth becomes
deep.
3. If the lever is pushed toward
“SHALLOW”, feeding depth re-
mains shallow.
The plant sensor is located
at the top of the left convey-
er belt.
•
CAUTION
4. As the reaping process begins,
the automatic control will be ini-
tiated by contact with the crops.
417O430A
WAY TO PREVENT THE
HEADER FROM LOWERING
(1) Hydraulic steering shaft
(A) Pull
STA ND A RD AP PR O AC H TO
PREVENT THE HEADER FROM
LOWERING
1. Pull the hydraulic steering shaft
backwards to raise the header
to its maximum height.
2. Remove the locking pin and
capped pin of the safety lock
at the lower portion of the har-
vester gearbox. Place the safety
lock by the side of the oil cylin-
der to ensure that the oil cylin-
der is in a locked position.
To Next Page
