417O428A
MANUAL CONTROL SWITCH
(MANUALLY ADJUSTING FEED-
ING DEPTH)
1. It is used to manually control
feeding depth.
2. When the switch is moved to
“DEEP,” the depth will become
deep.
3. If the switch turned to “SHAL-
LOW,” feeding depth will be-
come shallow.

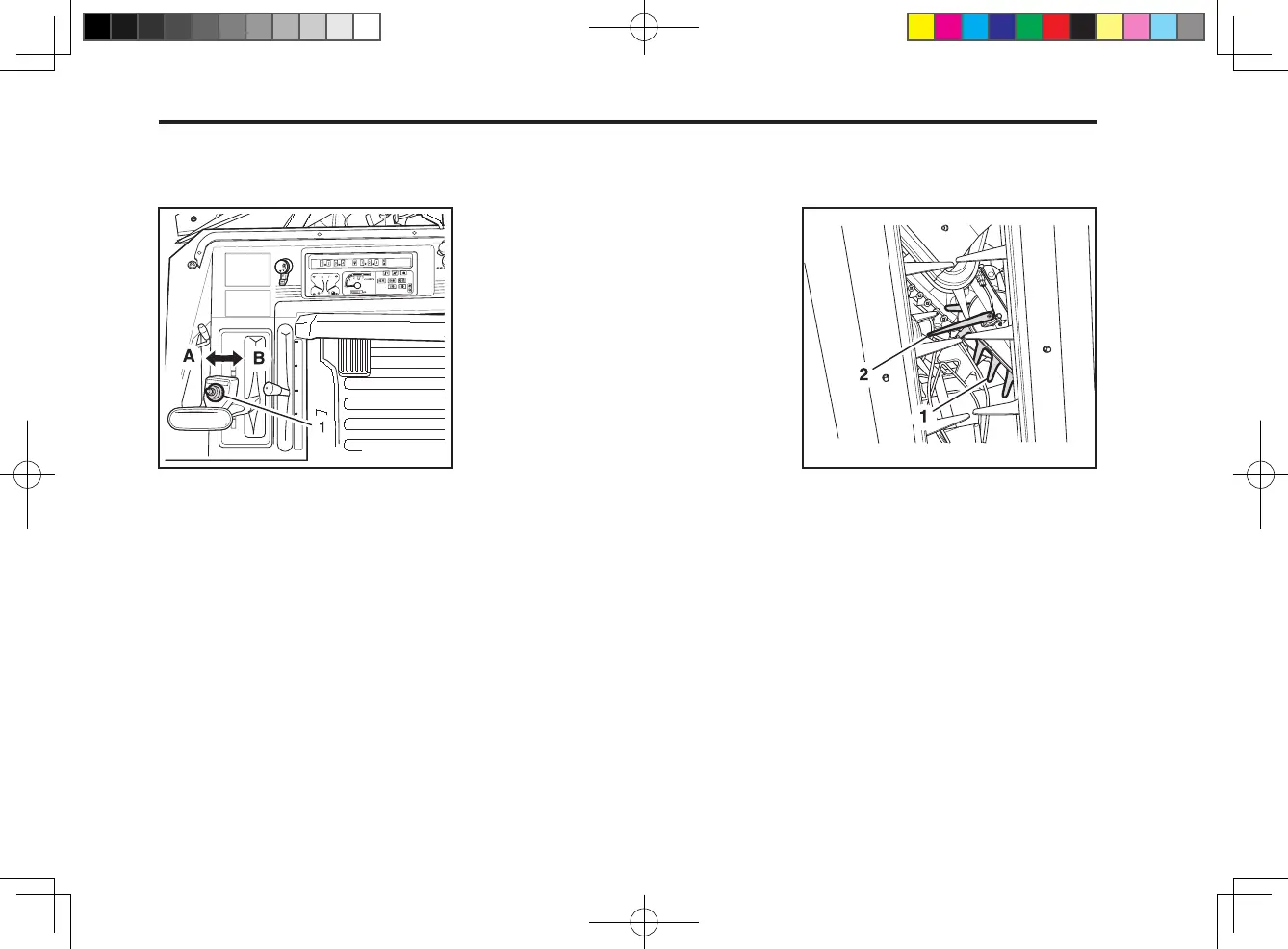

(1) Manual Control Switch
(A) Shallow (B) Deep
4. If the manual feeding depth
control is turned on when the
automatic control system is al-
ready performing, the automatic
control is superseded by the
manual control and the auto-
matic mode indicator goes off.
417O426A
(1) Conveyer Belt (2) Plant Sensor
HOW TO OPERATE
1. Set the threshing clutch lever
engaged.
2. Set the reaping clutch lever
engaged and lower the reaping
unit.
3. Set the automatic selection but-
ton to “AUTOMATIC” and check
whether the automatic indicating
lamp is on.
To Next Page
