AUTOMATIC FEEDING DEPTH CONTROL DEVICE
417O425A

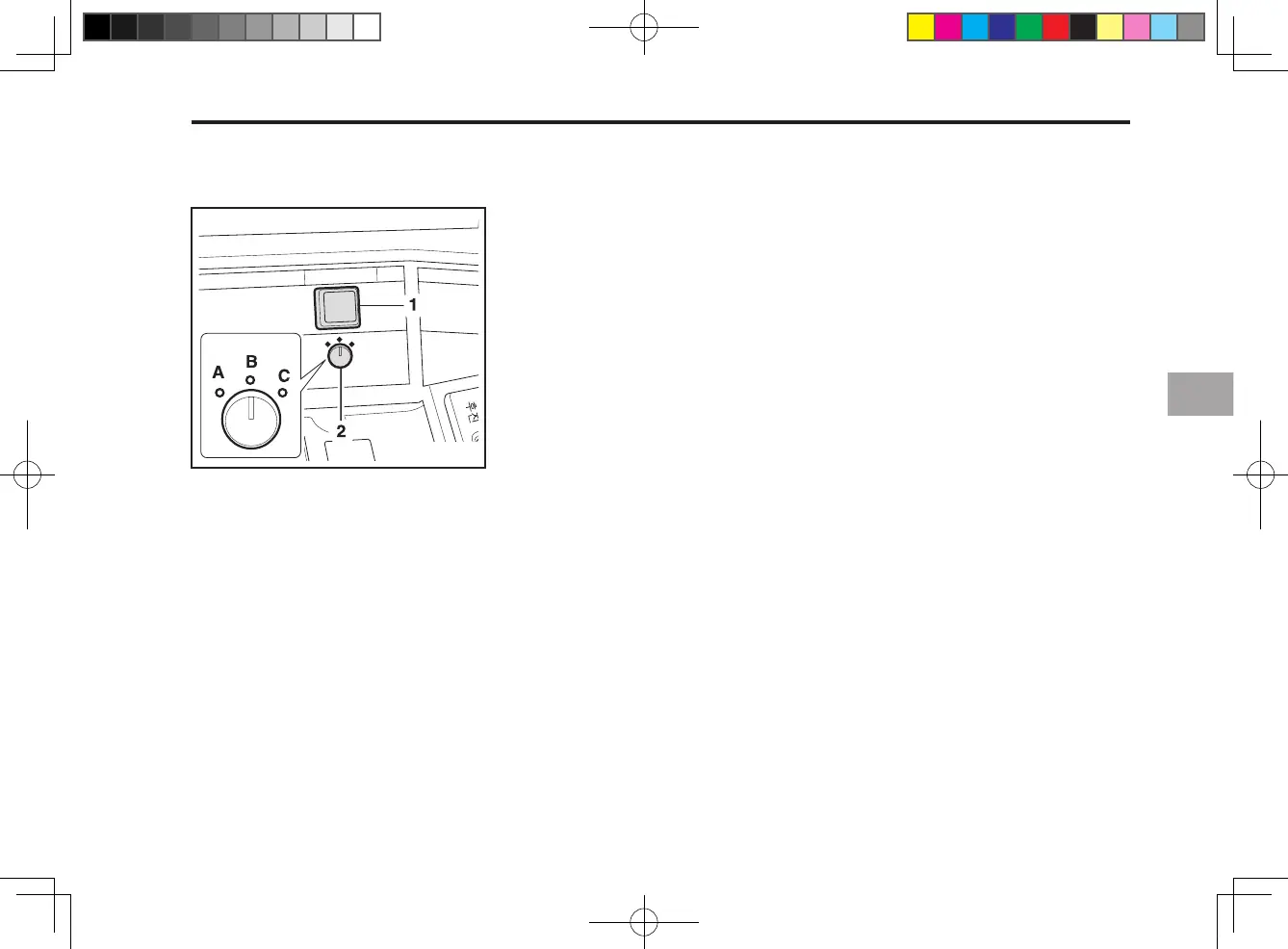

(1) Automatic Selection Switch
(2) Feeding Depth Selection Switch
(A) Shallow (B) Standard (C) Deep
Advantages of the automatic
feeding depth control device
1. At the beginning of reaping, it
adjusts the feeding depth de
-
pending on the crop’s height.
2. During reaping, it adjusts the
de pt h as th e cr o p’s he ig h t
changes.
3. By adopting the two grain sen
-
sors, it stably controls the depth.
4. The feeding depth selection
switch can adjust the depth.
This can let the operator set up
the best feeding depth.
Automatic Selection Switch
Automatic.... When the switch is
pressed once and
fixed, the automatic
selection indicting
lamp comes on and
feeding depth control
will be automatically
performed.
Manual ........ When the switch is
p r e s s e d a g a i n , i t
pops up and disen-
gages the automatic
m o d e . T h e l a m p
goes out.
FEEDING DEPTH SELECTION
SWITCH (FOR FINE ADJUST-
MENT)
1. Usually set the dial to “Standard”
2. If the switch turned to “DEEP,”
feeding depth will become deep.
When reaping barley or lodged
cr o p s or work i n g on weedy
elds, select this mode.
3. If the switch turned to “SHAL-
LOW,” feeding depth will be-
come shallow.
