417O607A
417O606A

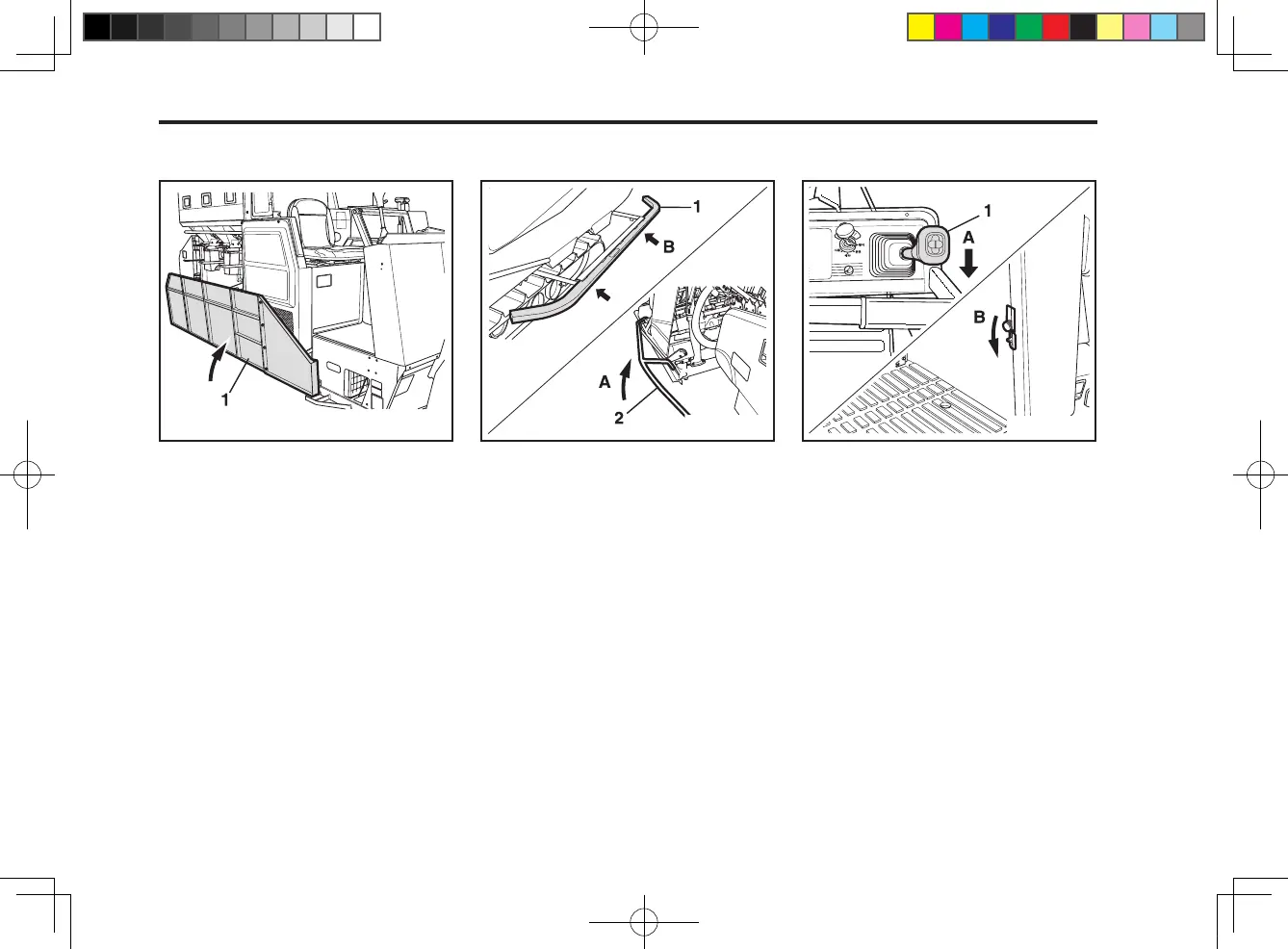

(1) Side Deck (1) Left Foothold (A) Fold up
(2) Left Dividing Pipe (B) Push in
2. Push in the left foothold and fold
up the left dividing pipe.
DRIVING
1. Fold up the side deck.
417O608A
(1) Power Steering Lever
(A) Hitch (B) Fix
3. Test the rear-view mirrors, turn
signal lights, horn, and head-
lamps.
4. Disenga ge the reaping and
threshing clutches and put the
ma in sh i ft le v er in t o STOP.
Then, start the engine.
Maintain 2,000 rpm or higher.
(Unless the main shift lever is
engaged into STOP, the engine
does not start.)
5. Raise up the reaping unit by
pulling the steering lever. Then,
Leave the unit lifted.
To Next Page
