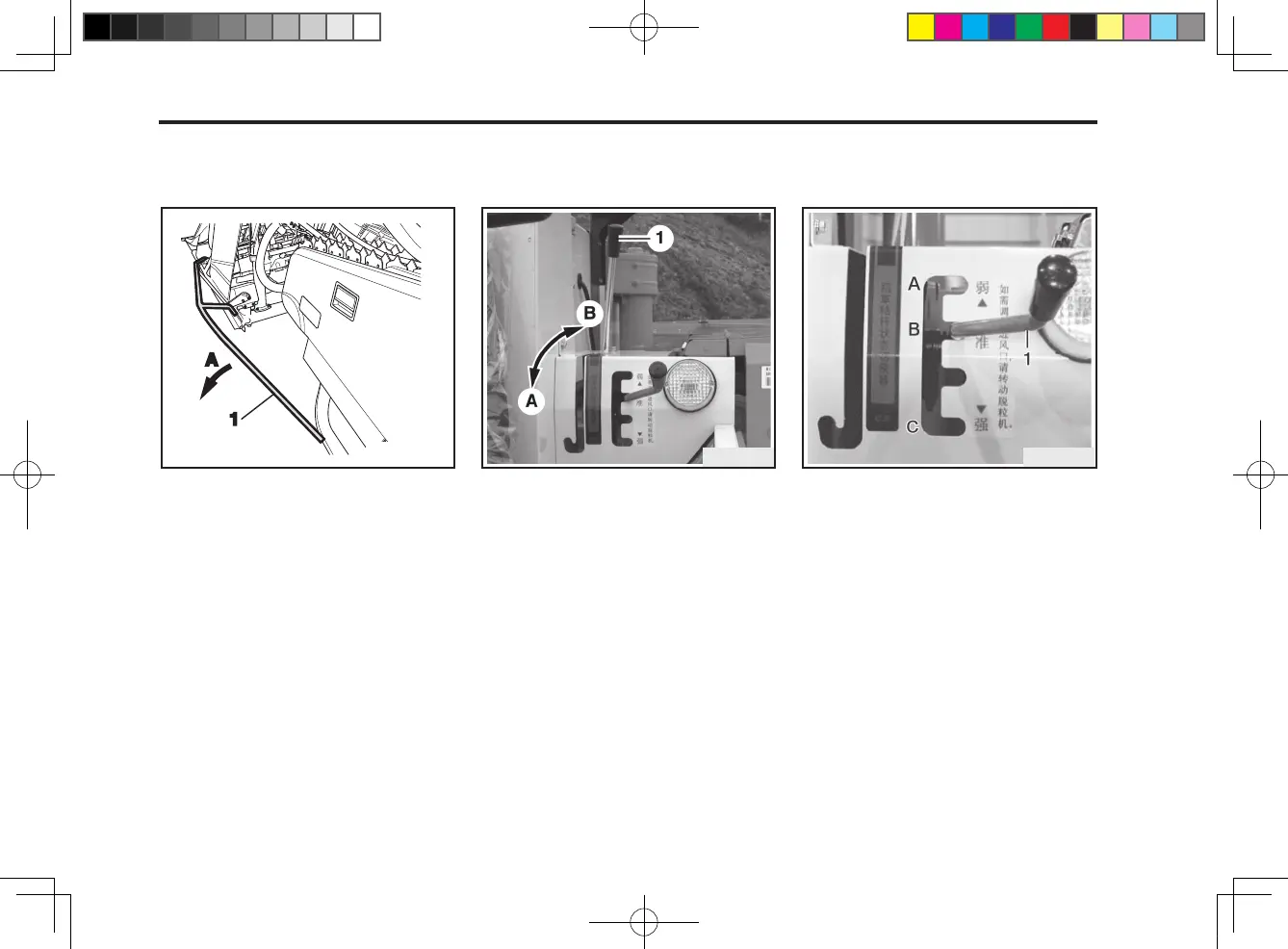

(1) Dividing Pipe (A) Open (1) Straw Discharge Selection Lever
(A) Cutter (B) Dropper
LEFT DIVIDING PIPE
Take out the left dividing pipe.
SELECTION OF STRAW DIS-
CHAGE METHOD
You can select the cutter or drop-
per with this lever. To switch the
lever, you must pull the lever out
to the most, move it to the desired
selection, and then push it back.
417O707A
(1) Fan adjustment lever (A) Weak
(B) Standard (C) Strong
AIR VOLUME ADjUSTMENT
LEVER
The status of the adjusting lever
shall be standard.
E32O404A
417O708A
PREPARATION BEFORE OPERATION
