(1) Sieve Case Support
(2) Grain Sieve
(3) Sieve Bolts (4 ea.)
(A) Front of the combine
(B) Rear of the combine
4. After adjustment, assemble
the parts in the reverse order
(3-2-1).
417O724A

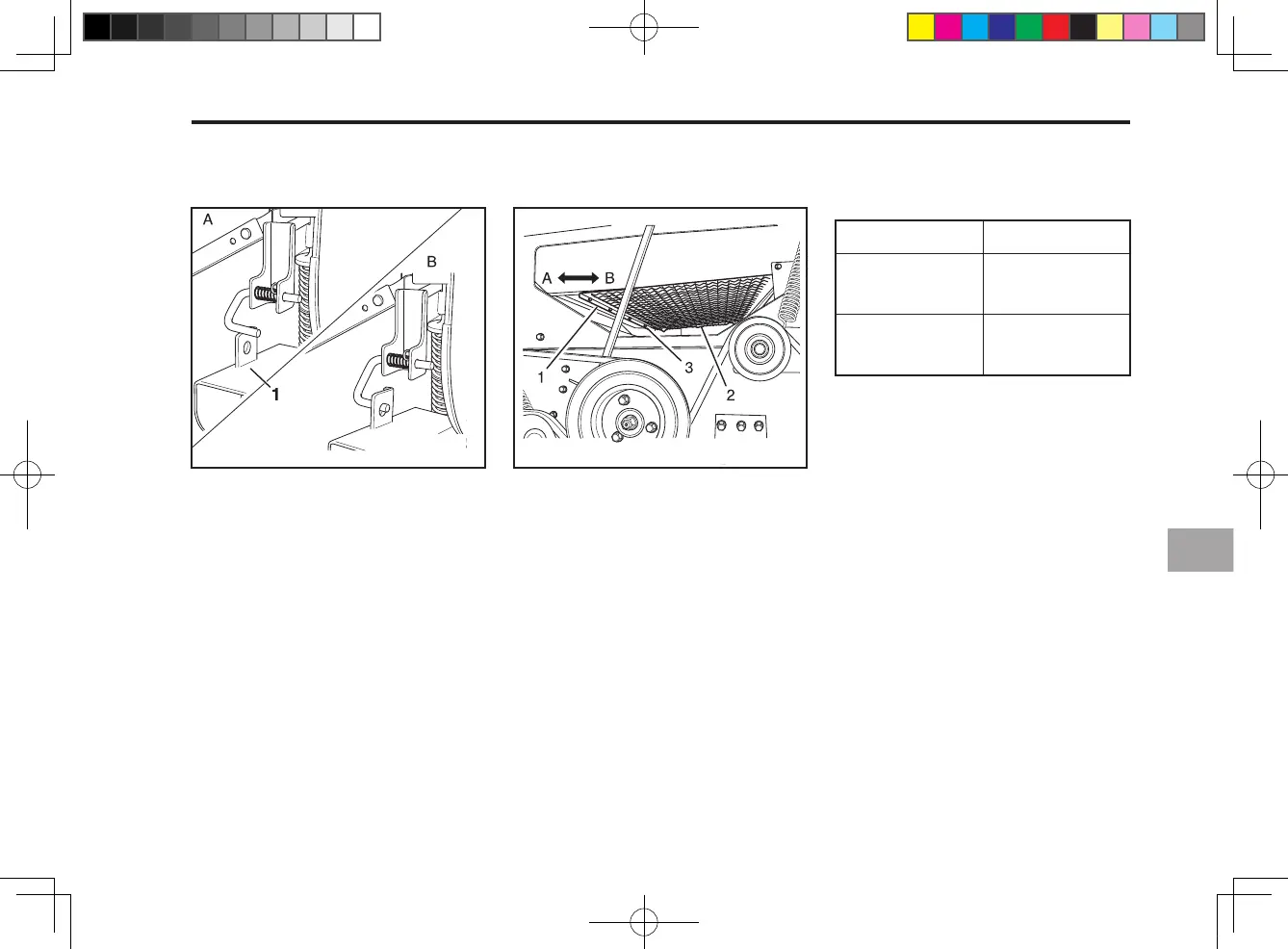

(1) Upper rail for threshing
(A) Manual feeding (B) Normal
SETTING THE RAIL HOLDER FOR
MANUAL FEEDING OF CROP
Pleas e s e t th e rail h o l d e r as
shown in the above gure.
417O723A
ADjUSTING SIEVE CASE SUP-
PORT
1. Remove the left side cover and
open the cleaning cover of the
No.1 screw auger.
2. Open the control window.
3. Remove the sieve bolts (4 ea.)
and adjust the sieve case sup-
port.
Normal Move it to the
rear of the com
-
bine.
Considerable
grain loss or bro
-
ken ear
Move it to the
front of the com-
bine.
To Next Page
