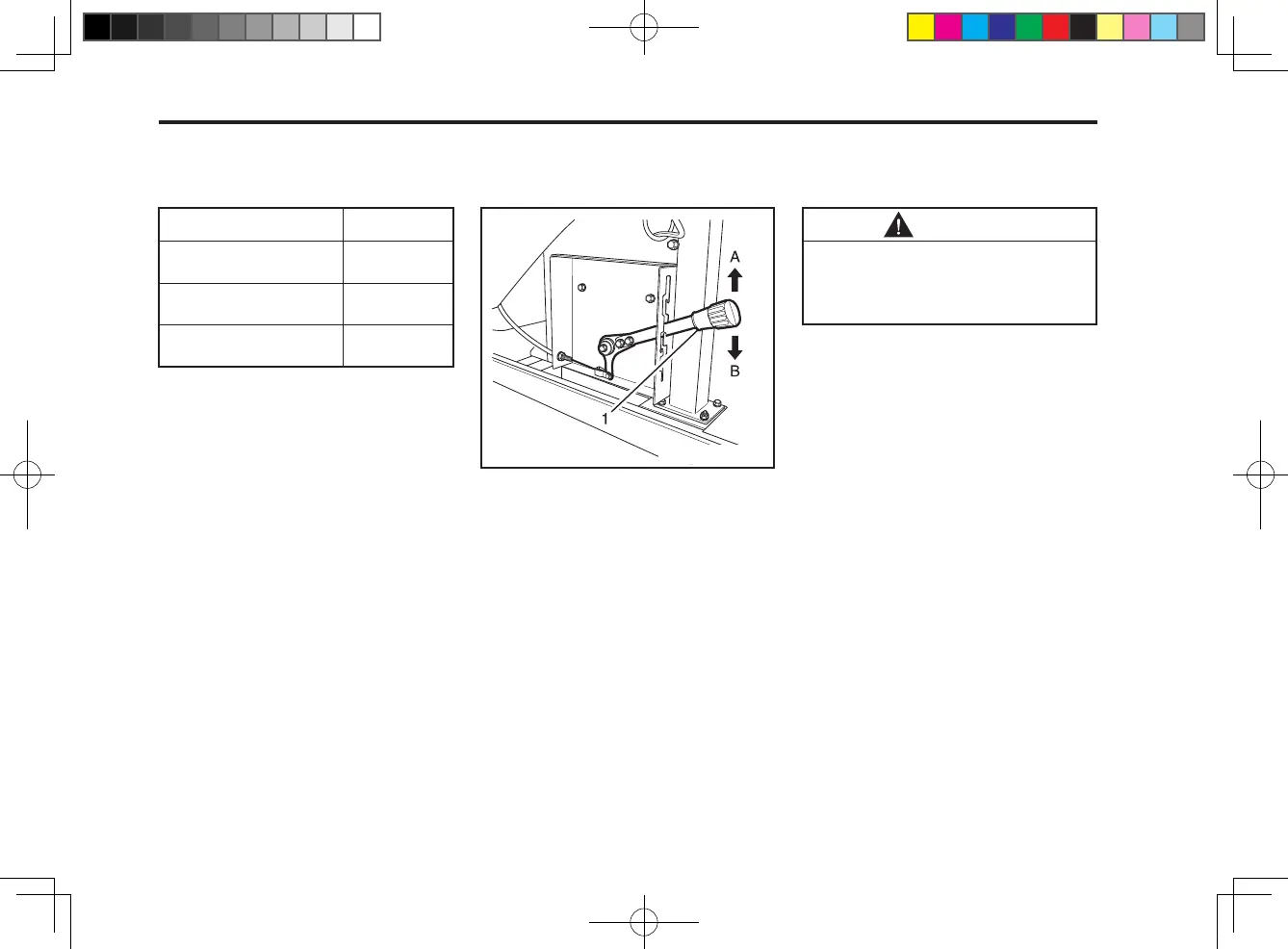

(1) Chaff Control Lever
(A) OPEN “A” (B) CLOSE “B”
ADjUSTMENT OF THE CHAFF
CONTROL
Control chaff with the chaff control
lever located between the hopper and
straw cutter.
1. W h en s e par a t ion i s ba d o r
grains with ear stems are found,
turn the lever down (Direction of
“B”)
2. When grain loss or crushed
grains are considerable, turn the
lever up (Direction of “A”)
417O722A
•
CAUTION
Cutting lodged crop
Being overloaded
Open
Normal working
Standard
Considerable grain loss
Considerable brokenears
Close
