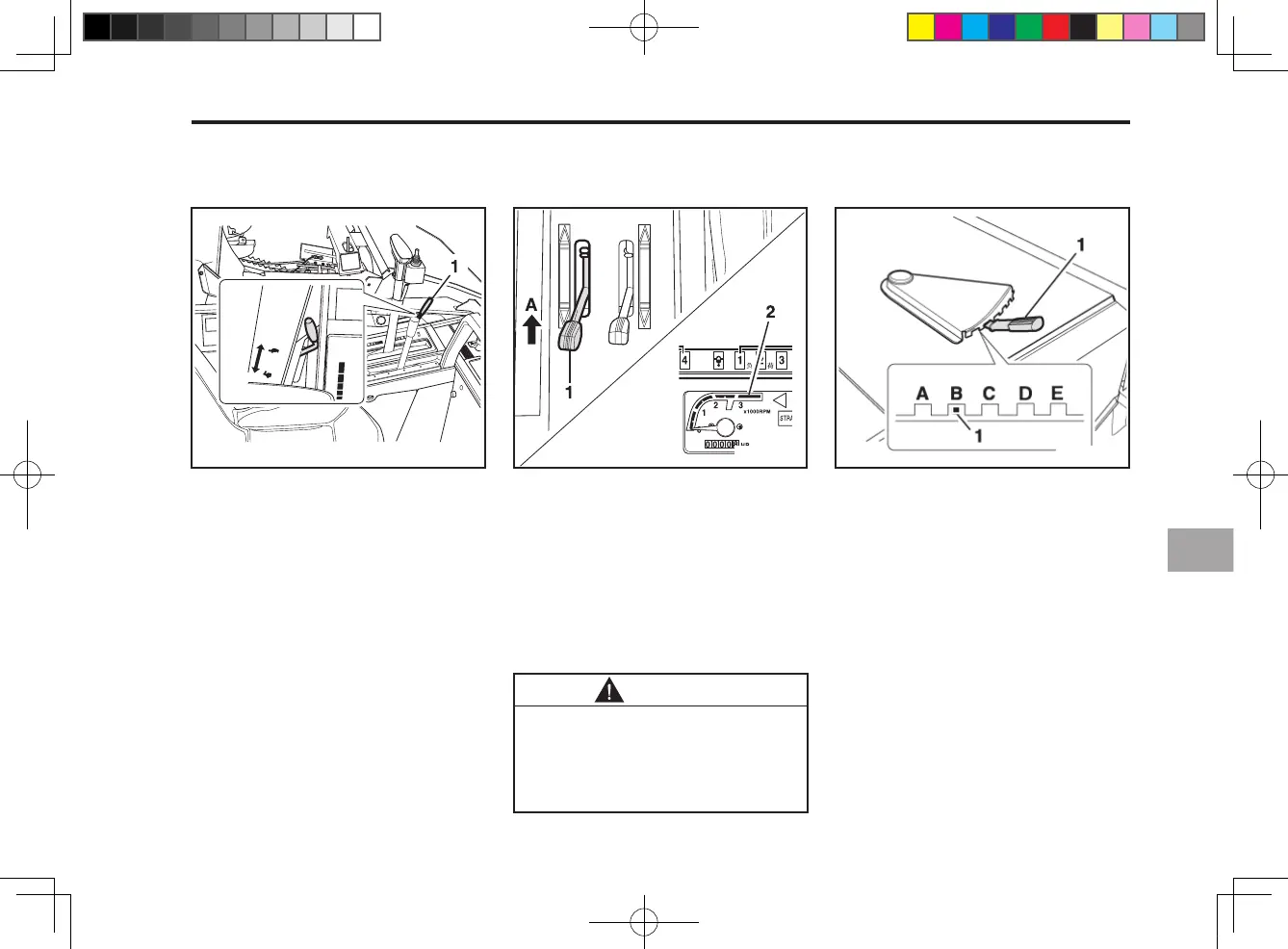

(1) Accelerator Lever
SPEED OF THE THRESHING
UNIT
1. Start the engine and set the
accelerator lever on the rabbit-
symbol position.
2. Engage the threshing clutch and
rotate the threshing rotor.
OPERATION OF THE THRESHING UNIT
3. With the threshing lever en-
gaged, adjust the engine speed
with the main shift lever to the
arrowed green zone.
(1) Threshing Clutch Lever
(2) Green Line (A) Engage
(1) Straw Treatment Adjusting Lever
(A) Close (B)Standard
(C) Open 1 (D) Open 2
(E) Open 3
ADjUSTING STRAW DEBRIS
TREATMENT
Please adjust the treatment lever
as described in the following table.
417O719A 417O720A E32O701A
•
CAUTION
