Transmission/Crankshaft/Crank Case
Replacement
L. crank case

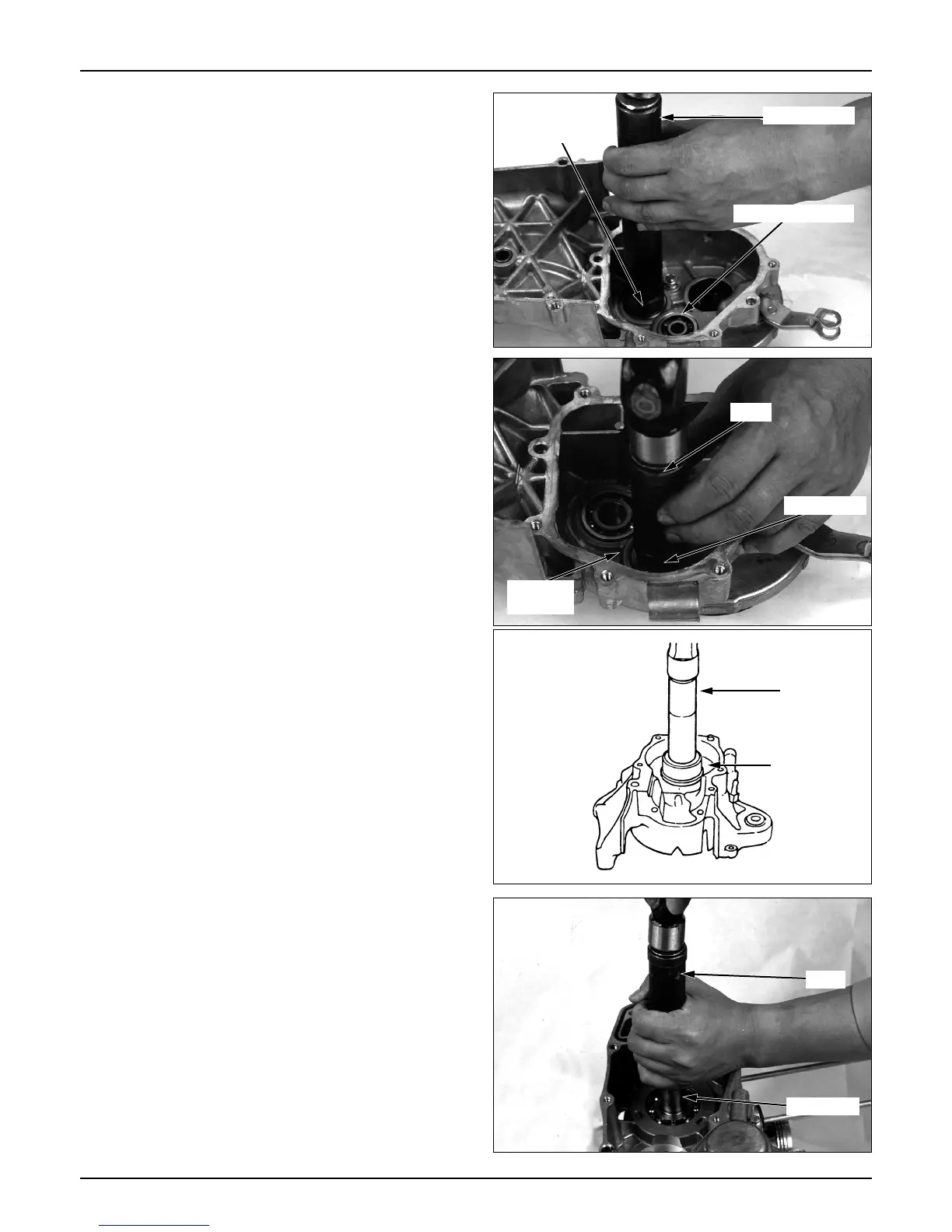

Use special tools to remove the drive shaft
bearing.
Tools:Bearing remover set
Remover shaft
Remover head
Remove the final shaft bearing and oil seal.
Remove the countergear bearing.
Apply clean engine oil to a new bearing, and
assemble it to the crank case.
Tools: Main shaft bearing:
Driver
Attachment, 32
35mm
Countershaft bearing:
Driver
Attachment, 42
47mm
Pilot 20mm
Install a new final shaft oil seal.
11-9
Crankshaft Assembly
Apply clean engine oil to the new R. crankshaft
bearing, and press in the bearing into the R.
crank case.
Tools: Driver
Attachment, 72
75mm
Pilot, 35mm
Use special tools to assemble the crankshaft to
the L. crank case.
Tools: Assembly shaft
Crankshaft assembly collar
Crankshaft
Driver
Remove shaft
Final shaft bearing
Drive shaft
bearing
Driver
Attachment
Attachment
Outer driver
Final shaft
bearing
