Ingnition Coil
Generator connector
Ignition System

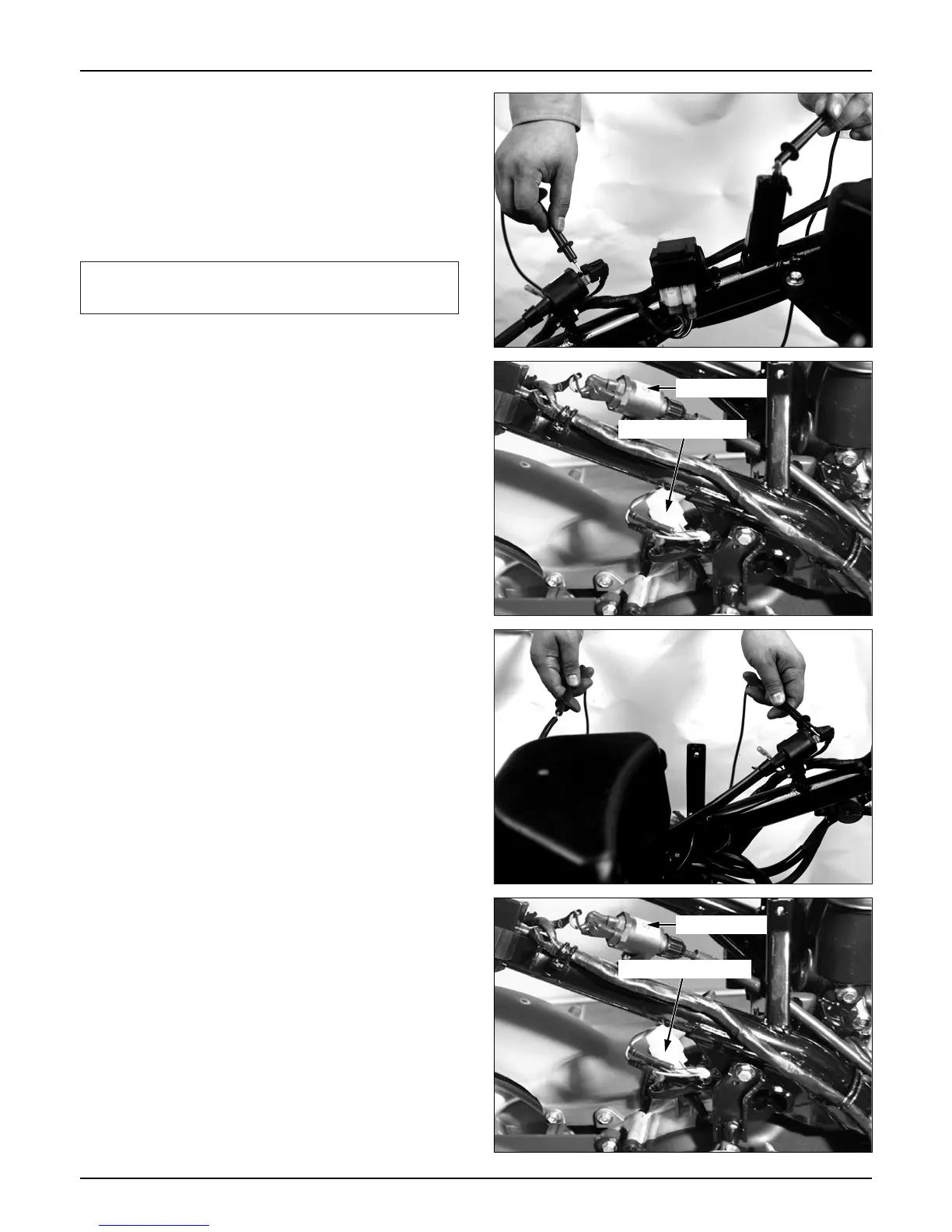

Ignition Coil Inspection
Remove the luggage box. ( 4-5)
Remove the body cover. ( 4-6)
Remove the center cover. ( 4-4)
Remove the primary wire.
NOTE
Measure the primary resistance between the
ignition coil terminal and earth.
Standard value: 0.1-0.2
Remove the spark plug cap from the plug.
Measure the secondary resistance between the
ignition coil spark plug cap and earth.
Standard value: 7.3-11K
If the measured value deviates from the
prescribed value, remove the plug cap from the
high-tension cord, and measure the secondary
resistance.
Standard value: 3.6-4.6K
Replacement
Remove the high-tension cord from plugs and
clamps. Remove the primary wire from the
ignition coil. Loosen 2 bolts to disassemble the
ignition coil.
Install in the reverse order of removal.
16-4
This test is inaccurate. Conduct the ignition coil
performance test with an ignition coil tester.
Ingnition Coil
Generator connector
