L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
Movable Drive Face

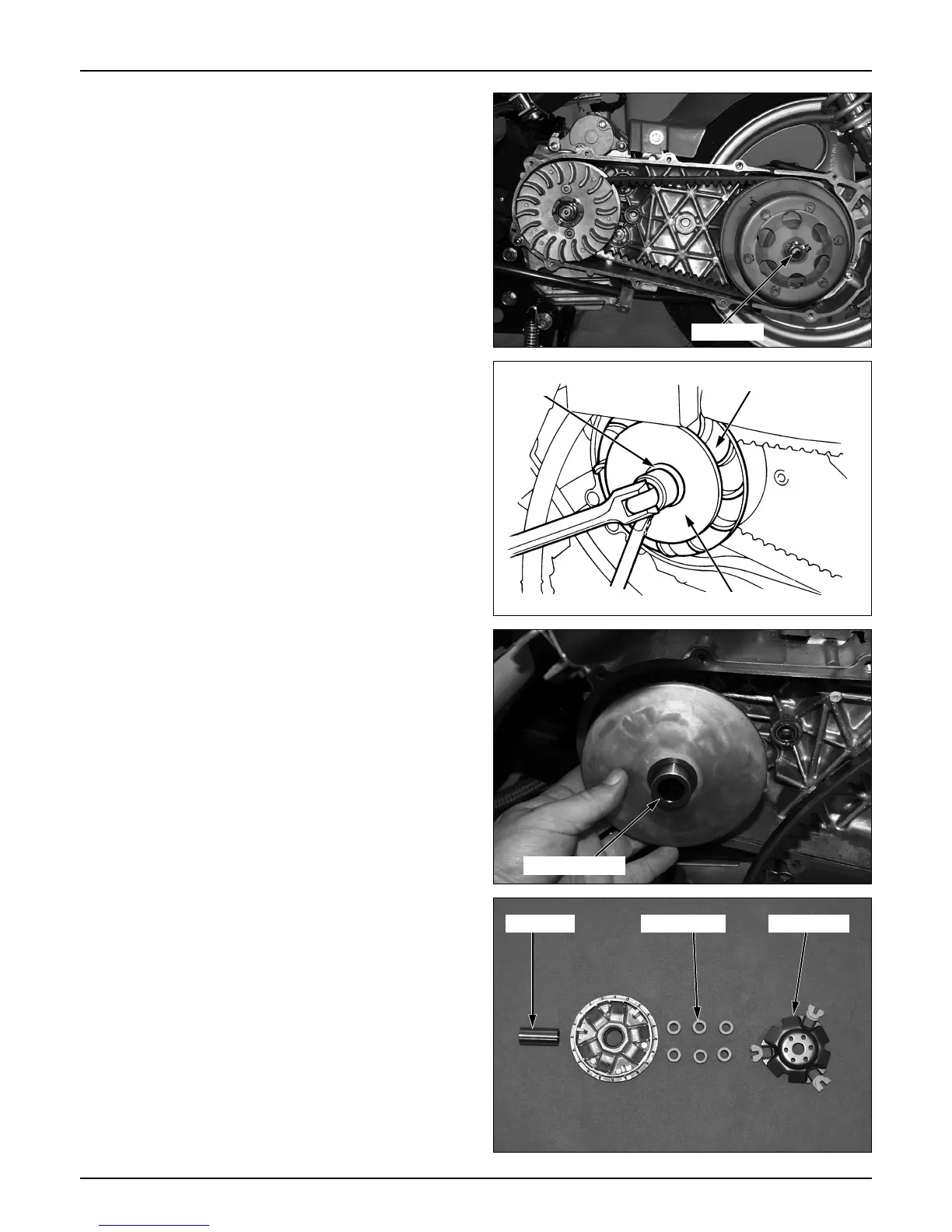

Removal
Remove the L. crank case cover.
Fix the drive pulley holder to the crank shaft.
Remove the drive pulley nut, washer and drive
face.
Tool: Drive pulley holder
Assemble the clutch outer to the drive shaft.
Fix the clutch outer with the universal holder, and
fasten with the setting nuts.
Torque value: 5.5kg-m (55N.m,40ft-Ib)
Tool: Universal holder
Assemble the L. crank case cover.
Remove the movable drive face and the drive
face boss.
Remove the ramp plate, weight roller, and O-ring
from the movable drive face.
7-9
Drive face boss
Ramp plateWeight rollerFace boss
Drive face
Nut
Drive pulley holder
Setting nut
