Light/Switch/Horn
Meters (Measuring Instruments)
Bulb Replacement

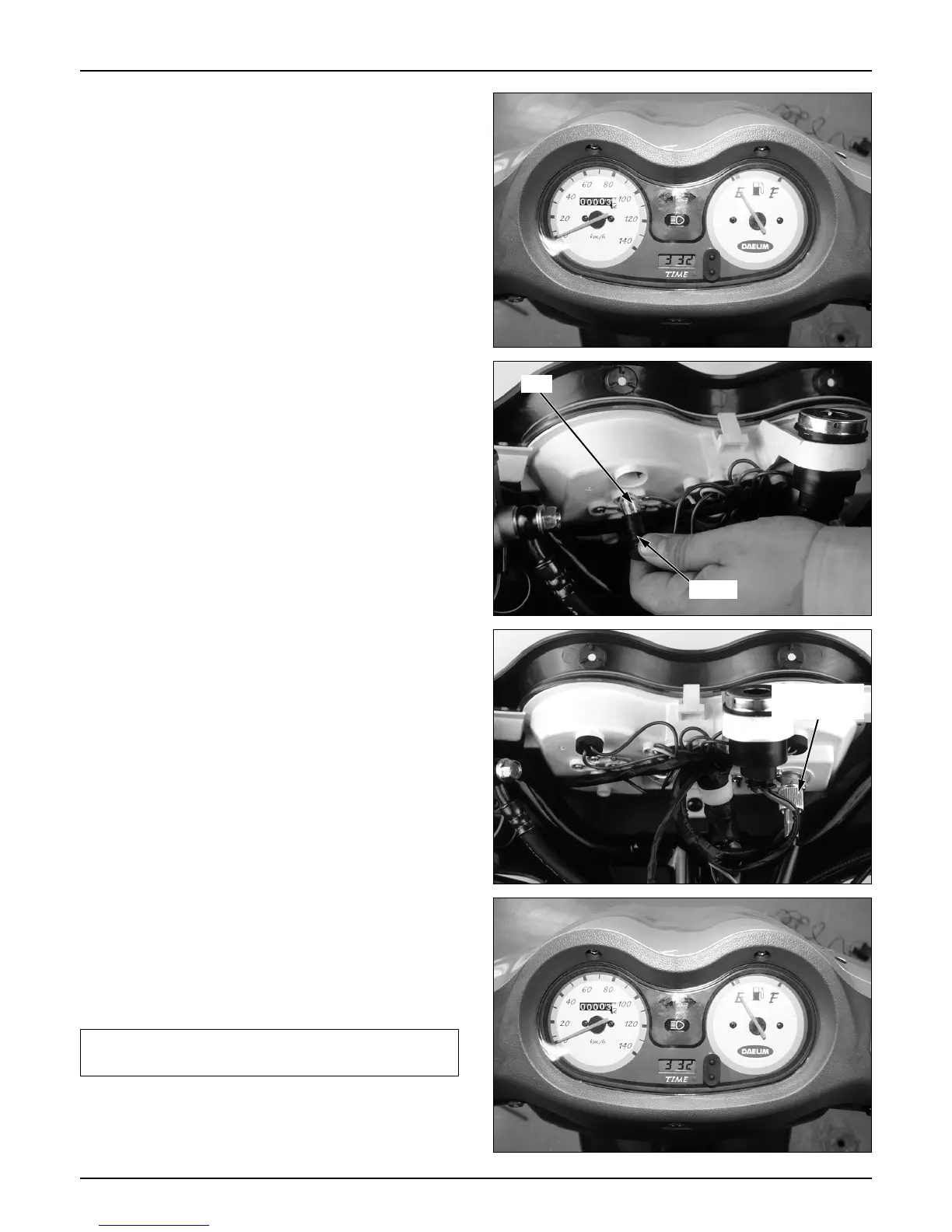

Remove the front handle cover.( 4-8)
Disconnect the winker and headlight wiring.
Remove the bulb socket, and replace bulbs.
Meter Replacement
Loosen the speedometer setting screws, and
remove the front wheel side speedometer.
Remove the speedometer cable from the meter,
and remove the speedometer.
To disassemble the meter, release the hook from
the meter upper case, and loosen the
speedometer and fuel meter assembly screws.
Install in the reverse order of removal.
NOTE
18-3
The fuel meter and wire must be connected
accurately.
Bulb
Socket
Speedometer
cable
