“T” mark
Front cover
Headlight
Ignition System

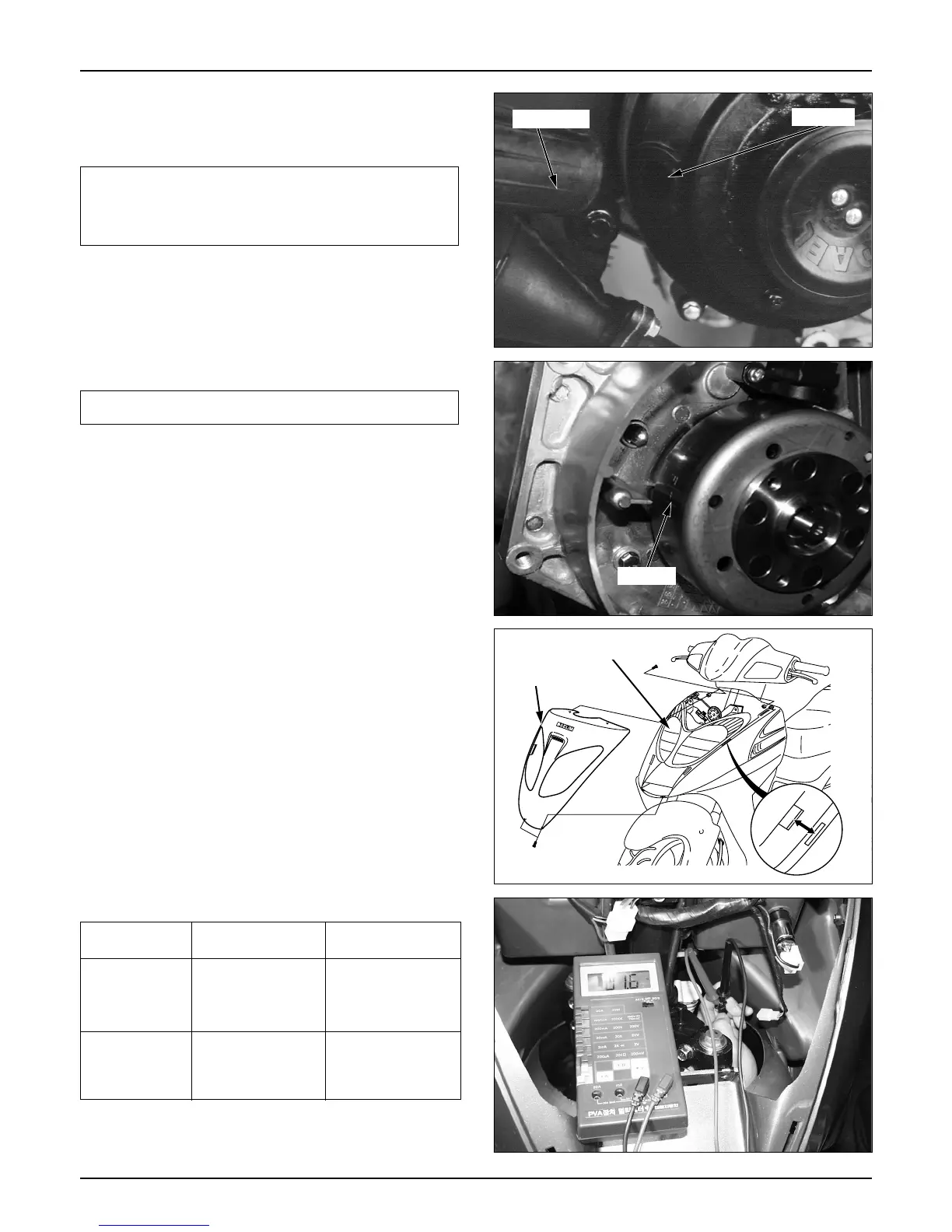

Ignition Timing Check
NOTE
Start and warm up the engine.
Connect the timing light to the high-tension cord.
NOTE
Remove the timing hole cap from the shroud, and
start the engine.
Align the “F” mark on the rotor with the index
mark on the case when the engine is idling to
specified rpm.
Idle speed: 8
BTDC 1,600 rpm.
Gradually increase the engine speed. If the index
mark is set within the advanced “F” mark at the
engine speed greater than 3,900(rpm), it indicates
the advance system is correct.
Side Stand Ignition Cut-off Switch
Inspection
Remove the front cover.( 4-3)
Remove the headlight.( 18-2)
Remove the coupler of the side stand switch.
Check for continuity between the terminal as
shown below ;
16-6
As the system uses the CDI unit, the ignition
timing need not be adjusted. Check the ignition
system if the ignition timing is incorrect.
Read the timing light manual prior to using it.
Timing light
Hole cap
ITEM
ON
(side stand
is lowered)
OFF
(side stand
is retracted)
TERMINAL
BLACK/WHITE
AND GREEN
BLACK/WHITE
AND GREEN
SPECIFICATION
NO
CONTINUITY
CONTINUITY
