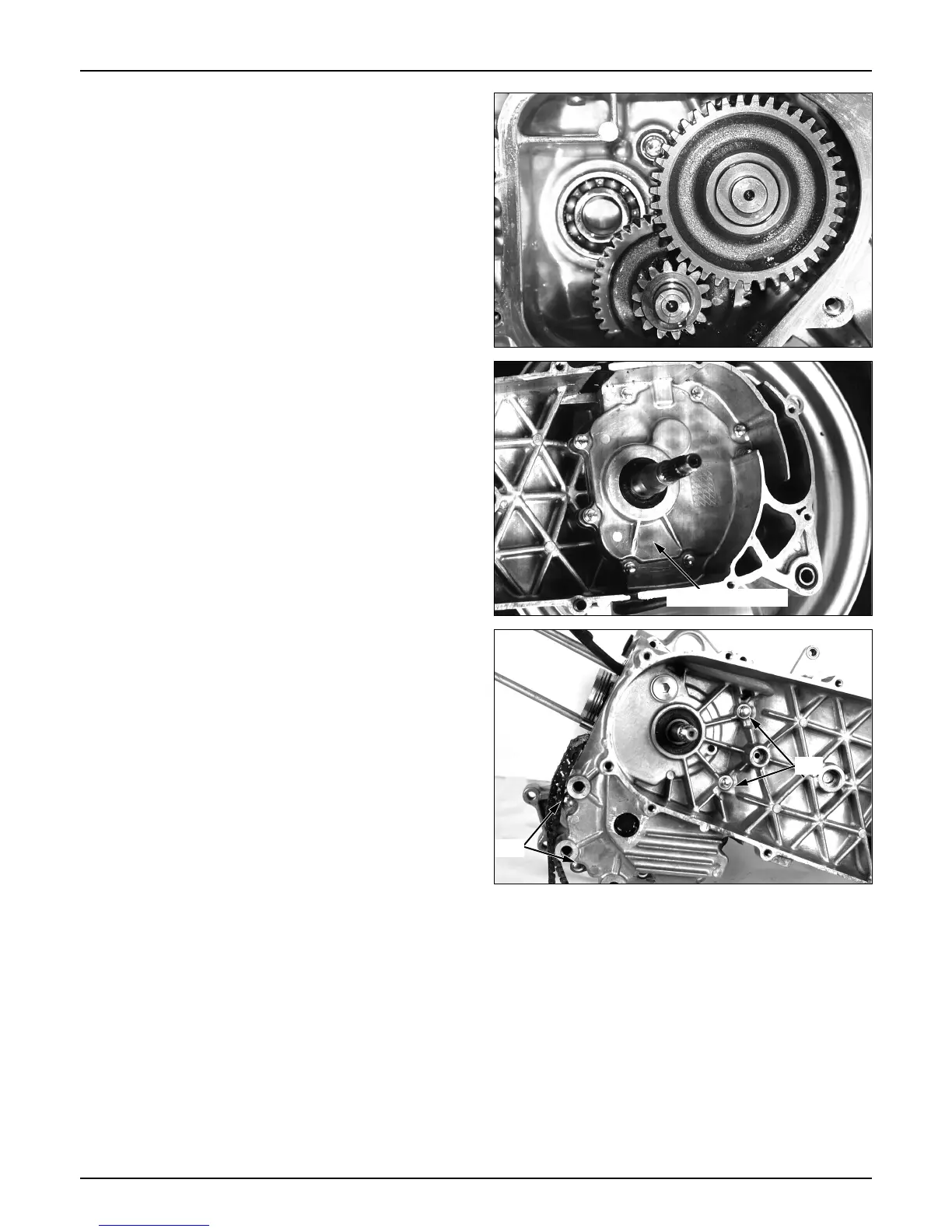

Transmission/Crankshaft/Crank Case
Crank Case Disassembly
Remove the engine from the frame. ( section 6)
Remove the R/L crank case cover.
Remove the transmission cover.
Remove the parts to disassemble crank case.
Loosen the seven R/L crank case setting bolts.
Install a new gasket and dowel pin.
Tighten the transmission cover with setting bolts.
- Assemble the rear wheel ( section 13)
- Assemble continuously variable transmission
( section 8)
- Assemble the R. crank case cover ( section 8)
Fill transmission oil.
11-6
Transmission cover
Bolt
Bolt
