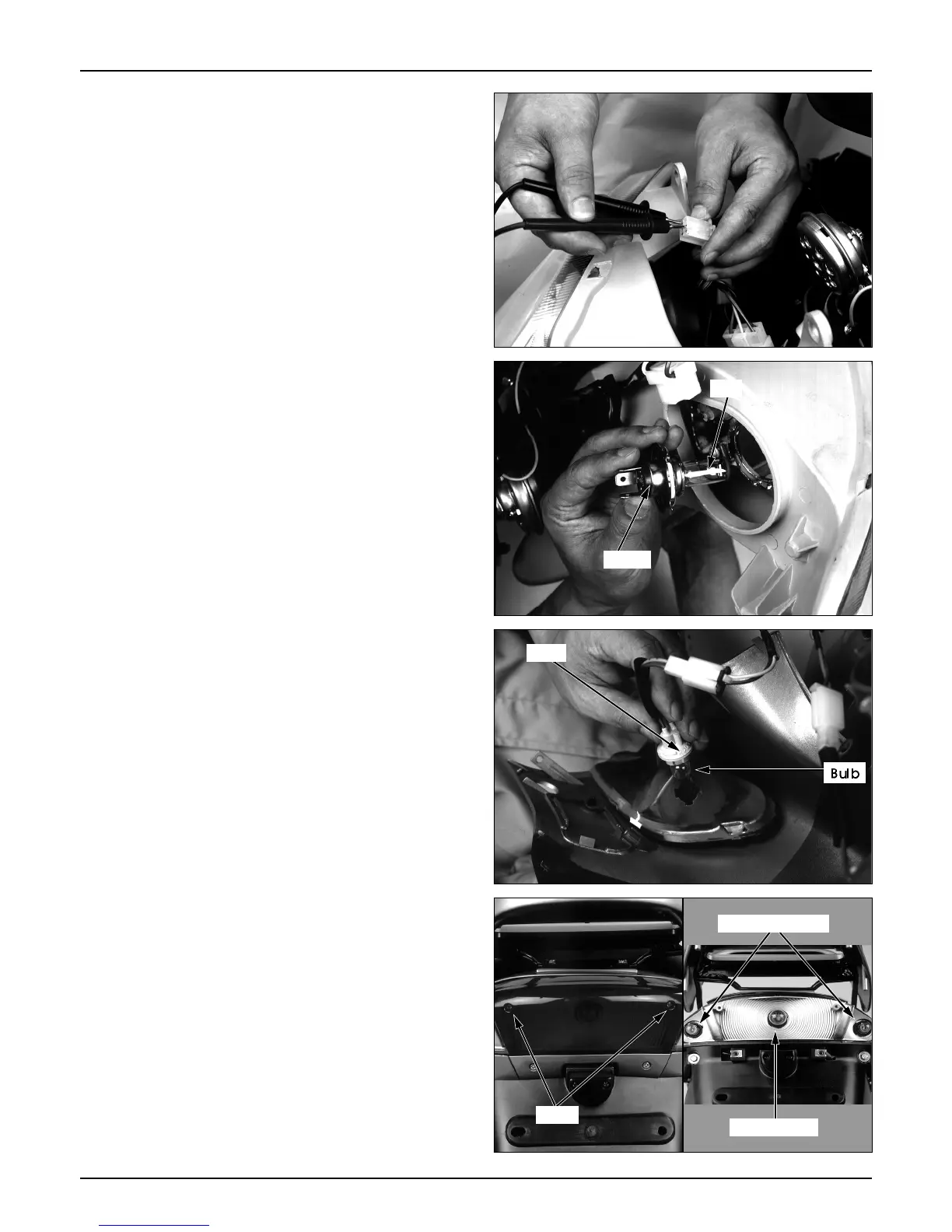

Light/Switch/Horn
Headlight
Removal
● Remove the front cover. (⇨ 4-3)
● Loosen the 4 headlight setting bolts.
● Remove the headlight wiring
● Check the headlight wiring for disconnection.
(⇨ 15-3)
Bulb Replacement
● Remove the headlight socket and position light
socket, and replace the light bulb.
● Install in the reverse order of removal.
Front Winker
Bulb Replacement
● Remove the front handle cover. (⇨ 4-8)
● Remove the R/L winker light bulb socket from
the handle cover, and replace bulbs.
Tail-Stop Light/Rear Winker
Bulb Replacement
● Remove the rear undercover.
● Loosen the 2 screws from the tail stop light lens,
and replace the tail stop light and rear winker
light bulbs.
18-2
Bulb
Socket
Soket
Screw
Rear winker bulb
Tail light bulb
