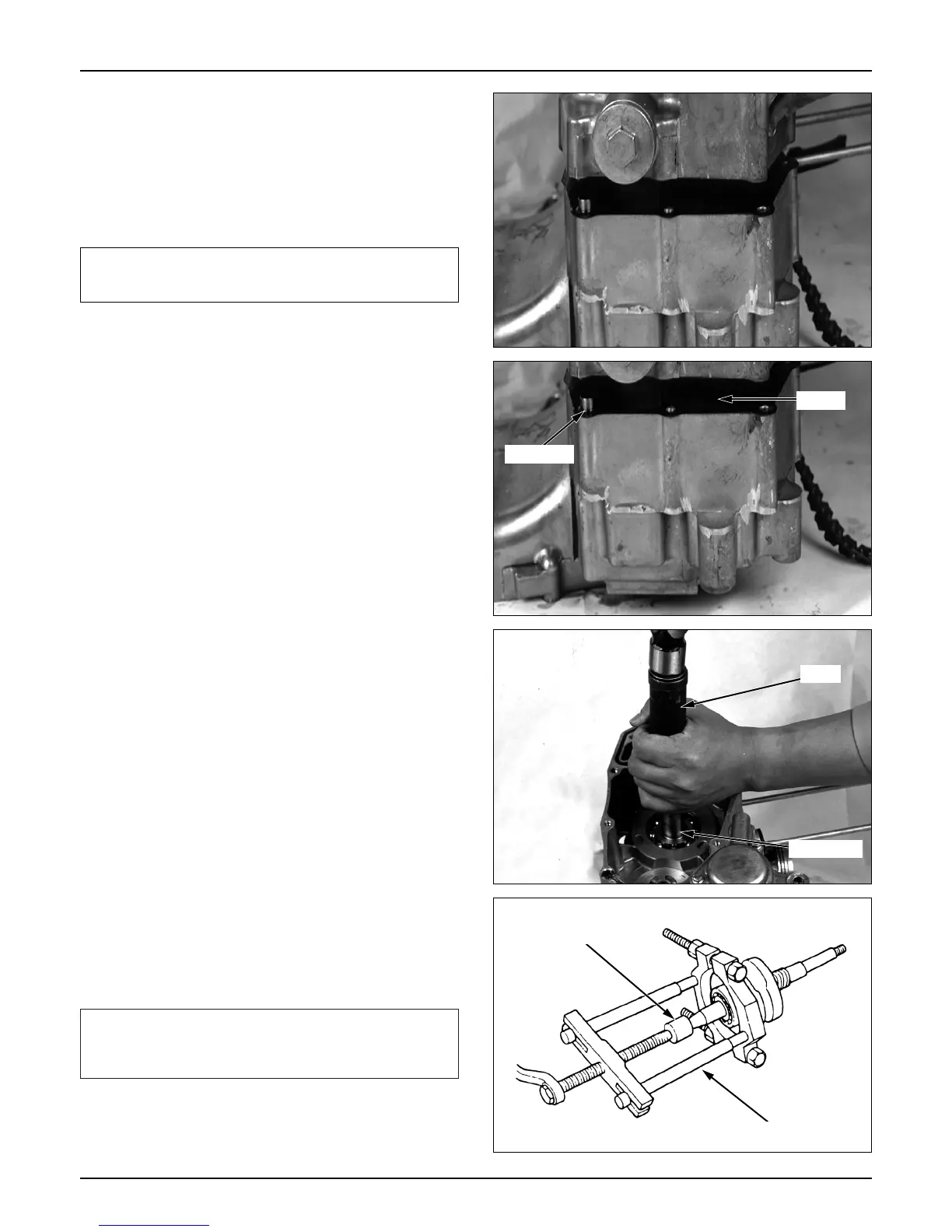

Transmission/Crankshaft/Crank Case
Remove the crank case bleeder tube.
Face the L. crank case downward.
Disassemble the R. crank case from the L. crank
case while tapping a few places on the L. crank
case with a plastic hammer.
NOTE
Disassemble the dowel pin and gasket.
11-7
Be careful not to distort the mating surface of the
crank case during disassembly.
Crankshaft Disassembly
Remove the R. crank case cover.( 8-4)
Remove the L. crank case cover.( 7-2)
Remove the crankshaft from the R. crank case by
using a crankshaft remover.
If there is the bearing left in the L. crank case, use
the driver handle and the outer driver to remove
it.
Tool : Driver
Attachment, 42
47mm
If there is the bearing left in the crankshaft, use a
bearing puller to remove it.
Tool: Universal bearing puller
NOTE
After removing the crankshaft from the R. crank
case, replace the R. crankshaft bearing with a
new one.
Dowel pin
Gasket
Crankshaft
Shaft protector
Universal bearing puller
Driver
