Transmission/Crankshaft/Crank Case

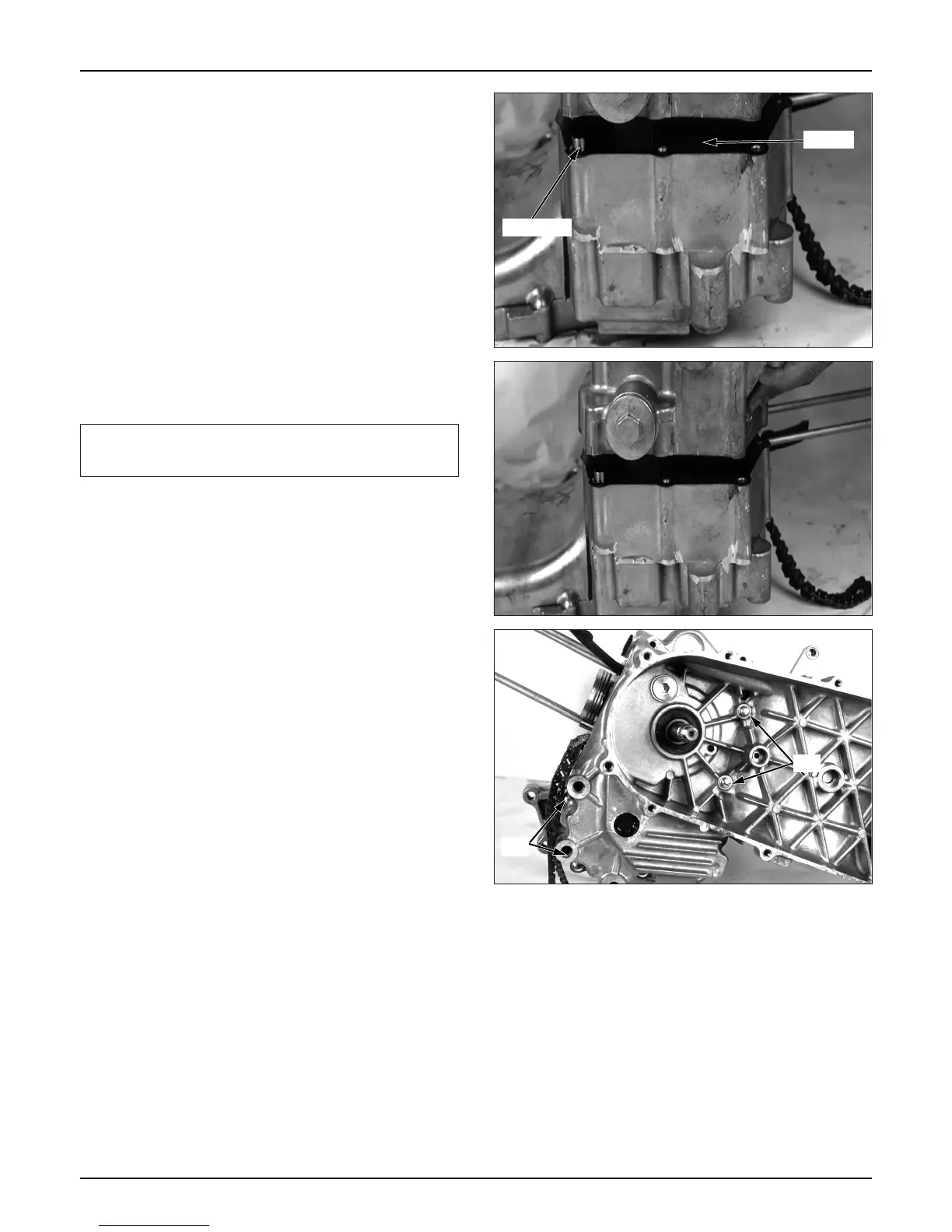

Crank Case Assembly
Install dowel pins and new gaskets.
Assemble the R. crank case to the L. crank case.
NOTE
Tighten the crank case bolts.
Torque value: 1.0kg-m (10N.m,7ft-lb)
- Install the R/L crank case cover.
- Assemble the disassembled parts.
Install the engine on the frame.
11-10
Make sure that the gasket is completely attached
without any clearance.
Bolt
Bolt
Dowel pin
Gasket
