Front Wheel/Front Fork/Steering
Inspection

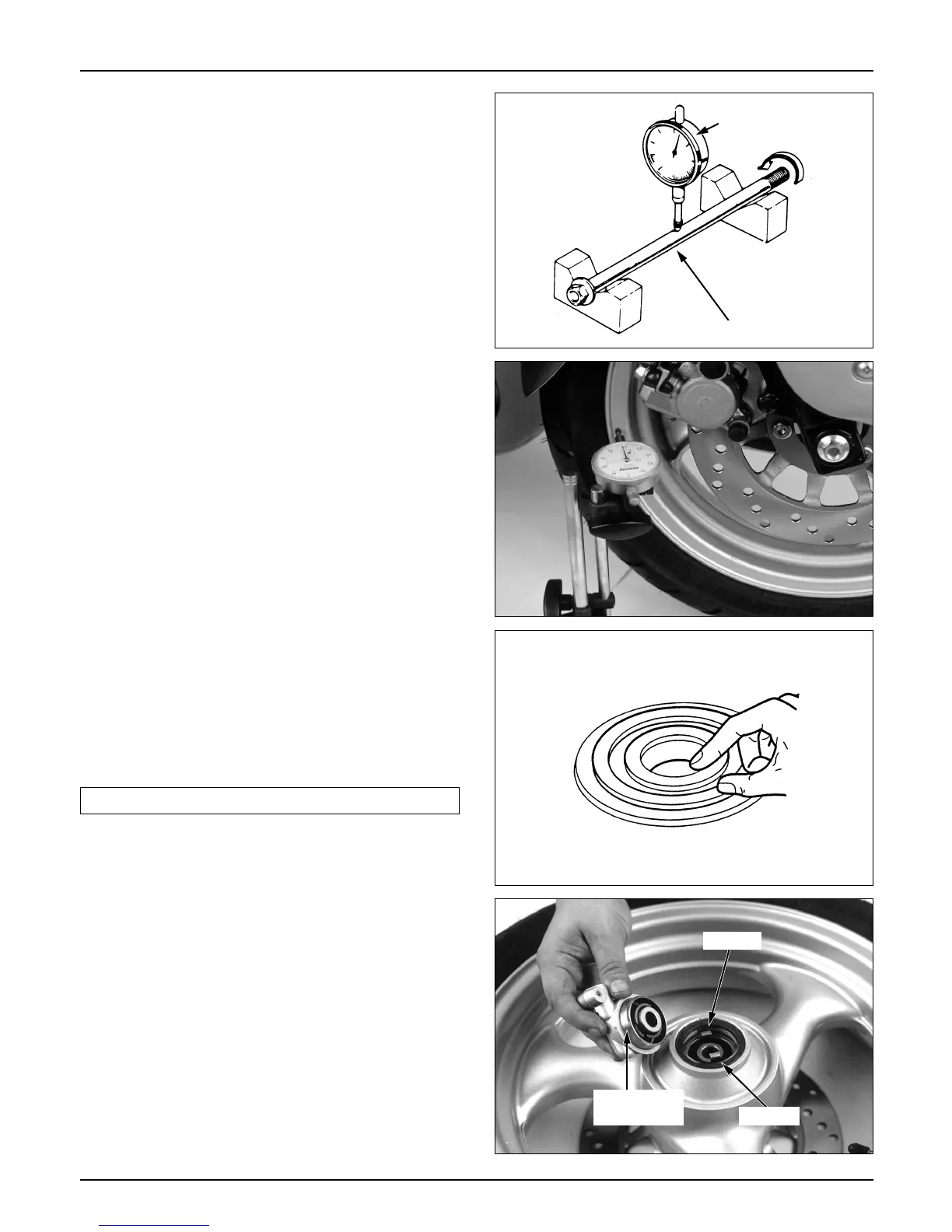

● Check the front axle for deflection. Place the front
axle on a V-block, and measure deflection with a
dial gauge.
Service limit: 0.2mm (0.008in)
● Place the front wheel on an inspection stand.
Slowly turn the wheel, and check the rim runout
with a dial gauge.
Service limit: Radial 2.0mm (0.08in)
Axial 2.0mm (0.08in)
Bearing inspection
● Manually turn the bearing inner race, and replace
if it makes noise or is worn. Check if the bearing
outer race is accurately fitted into the wheel hub,
and replace worn ones.
NOTE
Removal
● Remove the speedometer gear box, dust seal, and
speedometer gear retainer.
12-6
Replace bearings in pairs (left and right set).
Retainer
Dust seal
Speedometer
gear box
Didal gauge
Axle
