Front Wheel/Front Fork/Steering

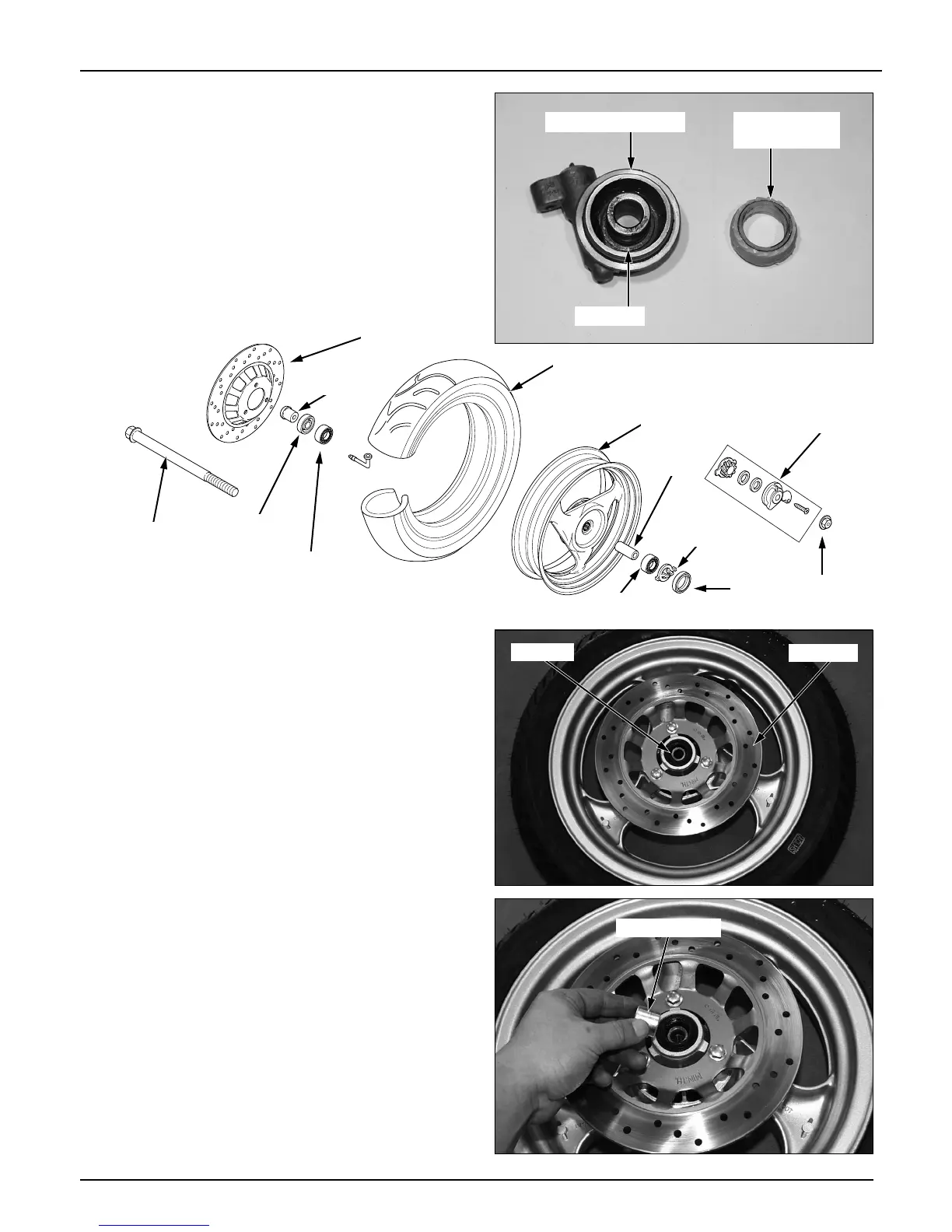

Speedometer gear replacement
● Remove the speedometer gear and washer from
the speedometer gear box.
● Check the gear for wear or damage.
● Install the washer.
● Apply grease to the speedometer gear prior to
assembling.
Assembly
● Apply grease to the right side dust seal rim.
● Install the right side dust seal.
● Install the brake disk.
● Install disk nuts.
Torque value: 1.5kg-m(15N.m, 11ft-lb)
● Install the right side collar.
12-8
Right side collar
Dust Seal
Axle
Brake disc
Right side
collar
Tire
Rim
Distance
collar
Speedometer gear box
Retainer
Radial
bearing
Dust
seal
Axle nut
Oil seal
Radial bearing
Brake disk
Dust Seal
Speedometer gear box
Speedometer
gear
Washer
