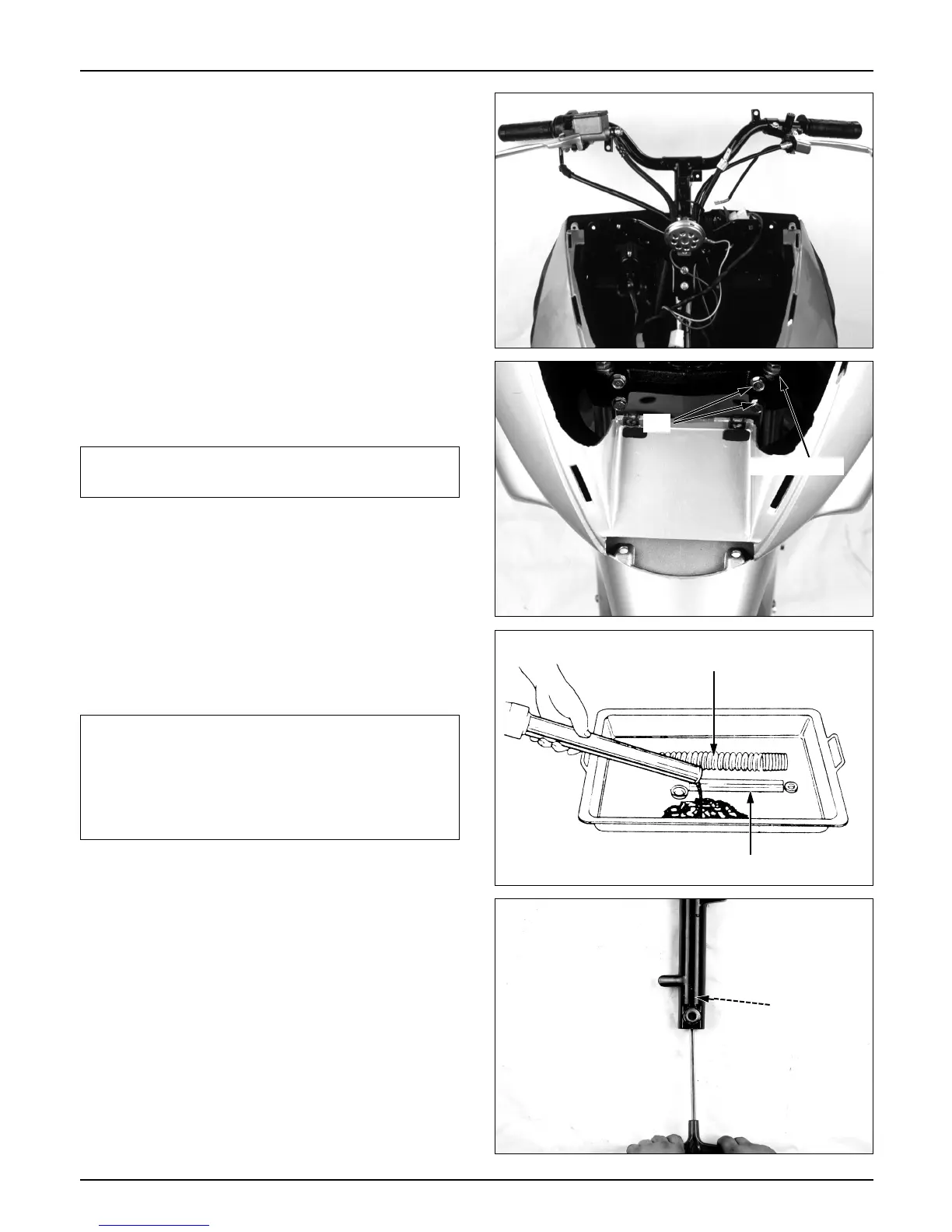

Front Wheel/Front Fork/Steering
Front Fork
Removal
● Remove the following parts.
- Front cover ( 4-3)
- Front fender ( 11-3)
- Front wheel
- Brake caliper ( 14-7)
● Loosen the fork tube cap bolt and remove the
front fork.
NOTE
● Loosen the 2 fork setting bolts to remove the fork
tube.
Disassembly
● Remove the fork tube cap bolt.
NOTE
● Wrap the bottom case with a piece of cloth, and
remove the socket bolt.
12-10
Loosen the fork tube cap bolt, but do not remove
it.
If the screw is completely loosened, the fork tube
cap bolt may spring out by the force of the
spring. Take due precautions.
Remove the fork spring, and expand and release
the fork pipe several times to drain fork oil.
Bolt
Fork tube cap
Spring
Collar
Socket bolt
