Front Wheel/Front Fork/Steering

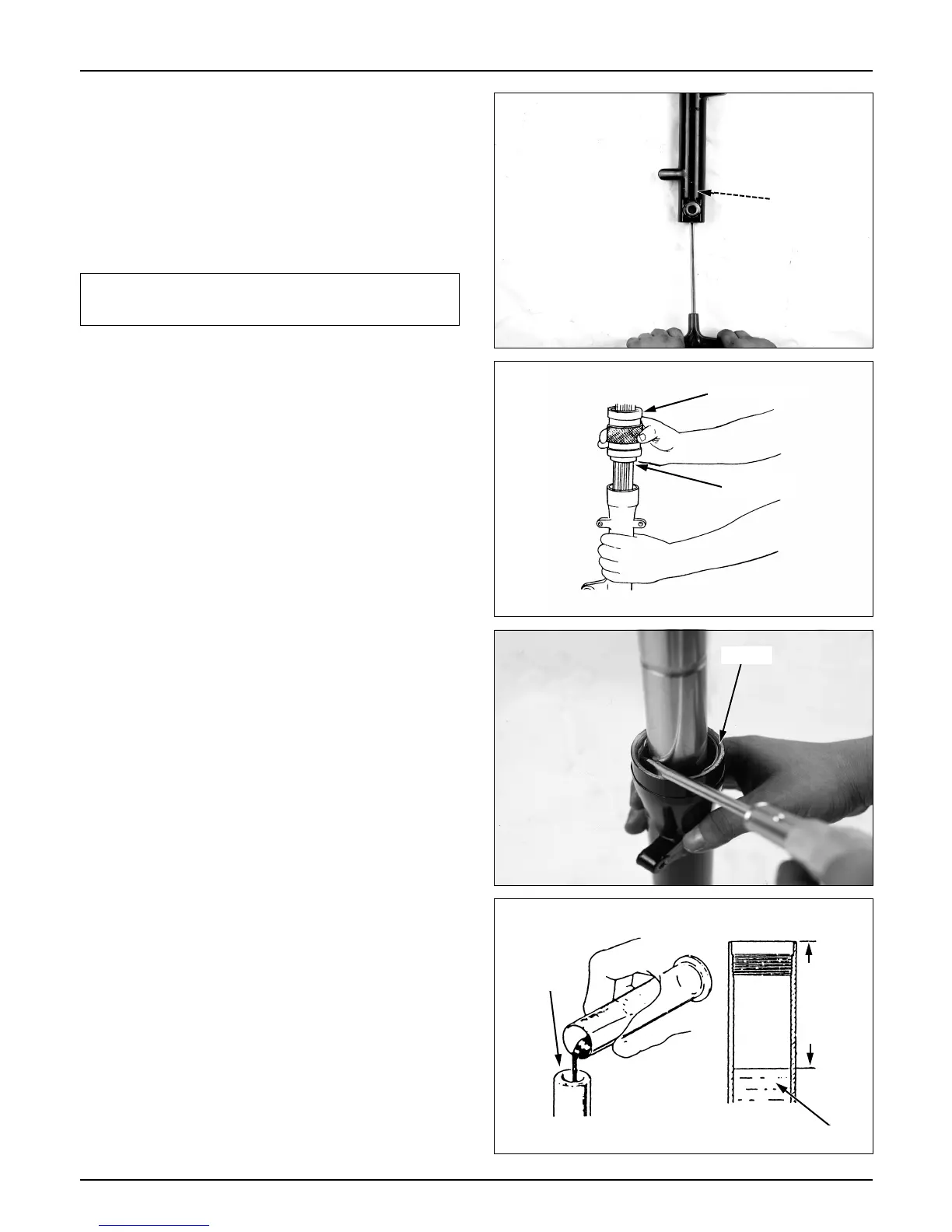

● Wrap the bottom case with a piece of cloth, and fix
it to the vise.
● Apply screw locking agent to the socket bolt
thread, and assemble the socket bolt to the fork
piston.
Torque value: 2.0kg-m (20N.m, 14ft-lb)
NOTE
● Apply ATF to a new oil seal.
● Assemble the oil seal to the bottom case.
● Insert the oil seal with special tools until the
attachment groove of the bottom case set ring is
exposed.
Tools: Fork seal driver
Fork seal driver body
● Install the set ring.
● Accurately assemble the set ring to the bottom
case.
● Install the dust seal.
●
Fill a prescribed amount of automatic transmission
fluid(ATF) into the fork tube.
Capacity: 80
㎤㎤
● Slowly press the fork tube 2-3 times to discharge
air.
12-13
When a vise is used to hold the bottom case, do
not insert the case itself but insert the bracket.
Set ring
Attachment
Fork oil
Fork oil level
Oil level
Fork seal driver
Socket bolt
