Lubrication
2-6
Removal/Installation

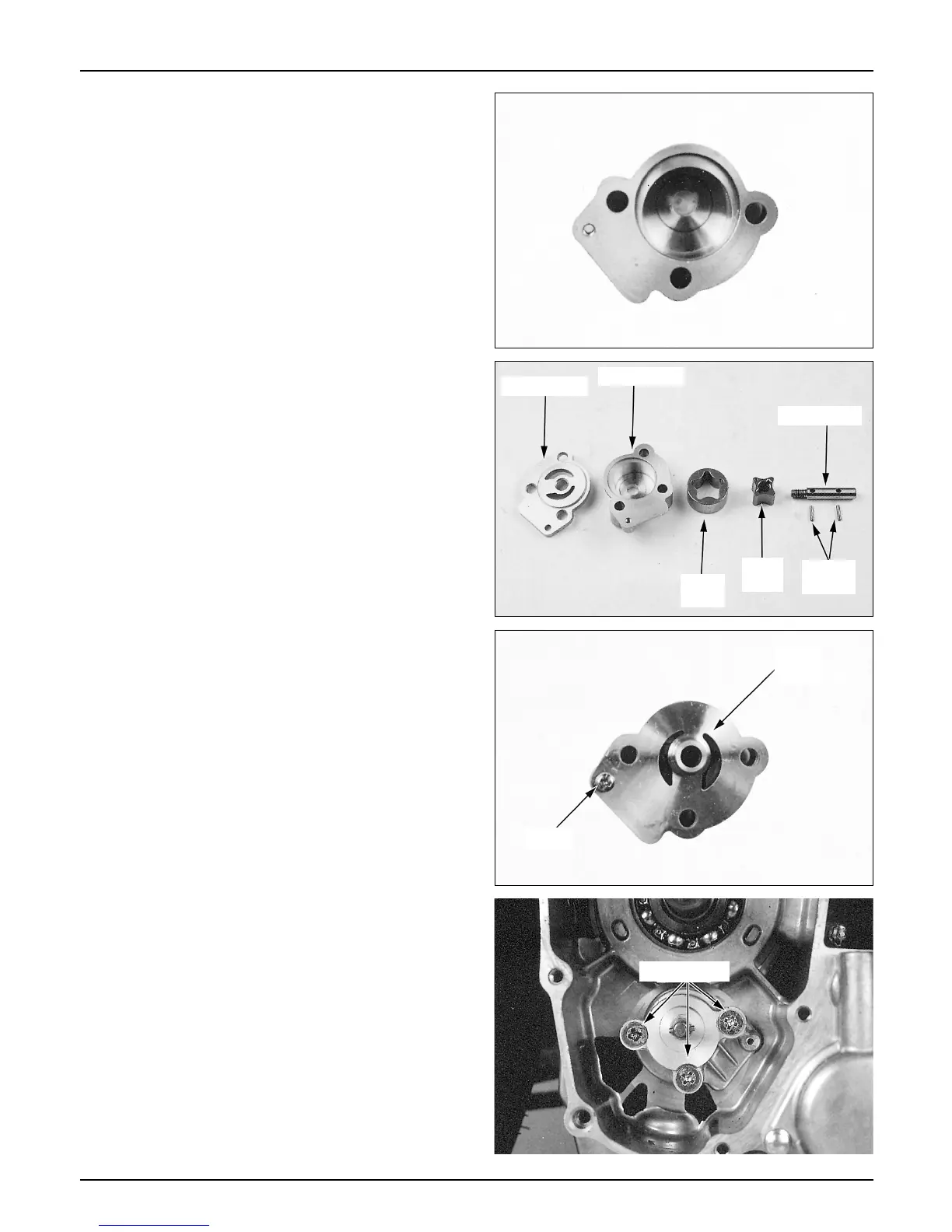

● Remove the inner and outer rotors from the
pump body.
● Clean all parts with fresh cleaning oil.
● Attach the oil pump plate to the pump body.
● Tighten screws.
Installation
● Assemble the oil pump to the R. crank case cover.
● Install the following parts.
- Oil pump drive gear and driven gear
- Starter clutch
- Starter driven gear and reduction gear
- A.C. generator
- R. crank case cover
- Shroud and cooling fan
- Center cover
- Body cover
- Luggage box
● Install the inner and outer rotors.
● Assemble the pump shaft with setting pins.
Screw
Pump
Plate
Outer
rotor
Inner
rotor
Setting
pin
Pump shaft
Pump body
Pump plate
Setting bolts
