Daher TBM 900 - Cruise Performance; Maximum Cruise

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 5

Performance

Edition 0 - October 31, 2013

Rev. 6

Page 5.11.1

5.11 - Cruise performance

Max

imum cruise

7100 lbs

6300 lbs

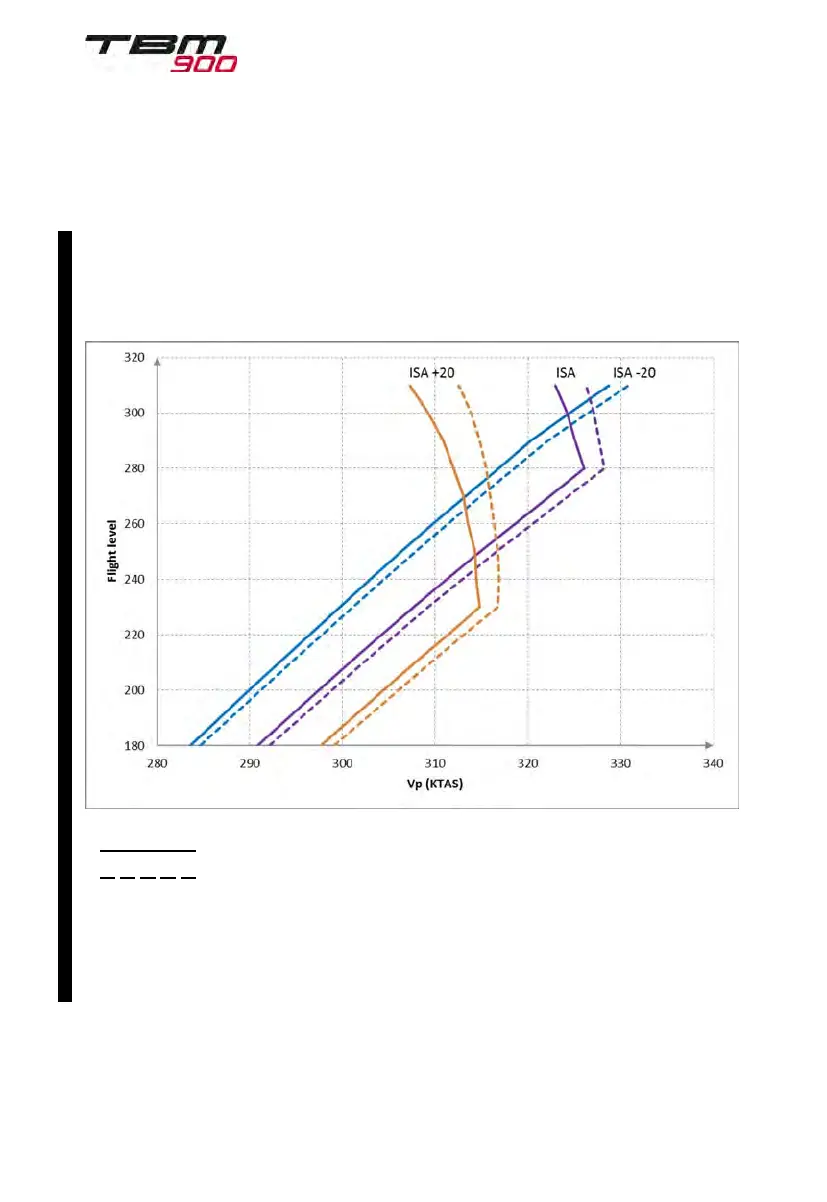

Figure 5.11.1 - Cruise performance (Maximum cruise)

PIM - DO NOT USE FOR FLIGHT OPERATIONS
