Pilot's Operating Handbook
Section 8
Handling, servicing and maintenance
Edition 0 - October 31, 2013
Rev. 4
Page 8.7.8
Oxygen
The replenishment device of the oxygen cylinder is installed directly on the cylinder
hea
d. It consists of a charging valve and of a pressure gage graduated
from 0 to 2000 PSIG. A chart - see figure 8.7.4, located on the inside of the cylinder
service door, gives the cylinder charge maximum pressure according to the
environment temperature.

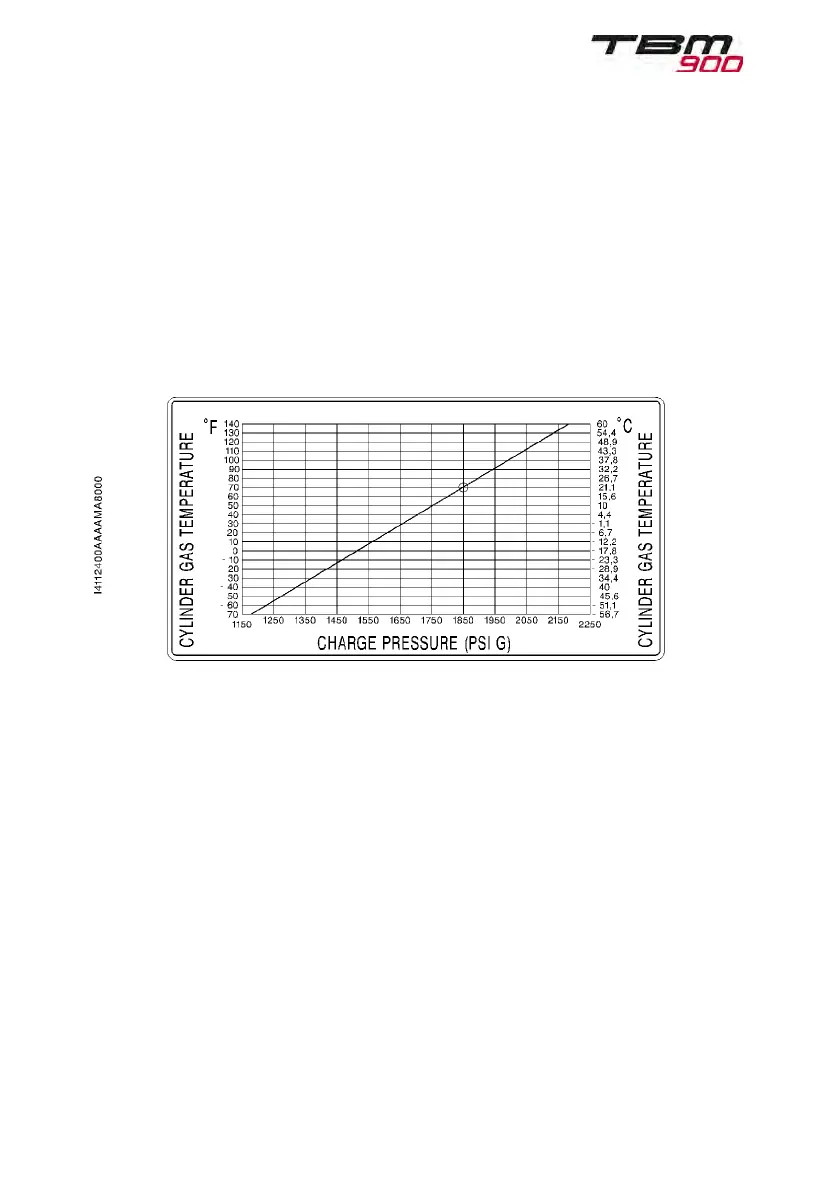

Figure 8.7.4 - Charge pressure chart
