- Condition mode
The THR
OTTLE is moved to the condition side by lifting the knob.
As long as the THROTTLE is in condition mode, the propeller is in feather
position.The THROTTLE can be positioned to CUT OFF, idle LO-IDLE or idle
HI-IDLE.
Change from idle HI-IDLE to LO-IDLE position requires moving the THROTTLE
rearwards.
Change from idle LO-IDLE to CUT OFF position is only possible after having
overridden the idle gate. To override idle gate, raise the THROTTLE and move
it rearwards.

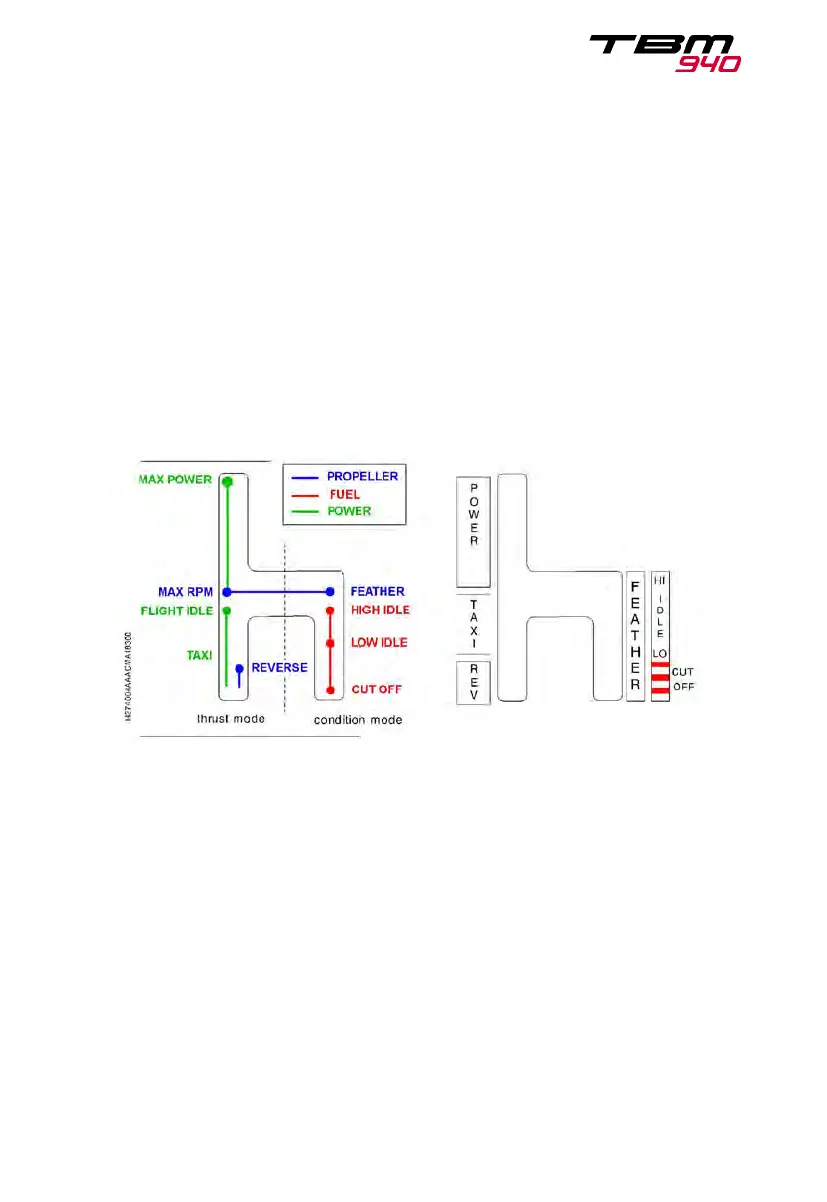

Figure 7.6.3 - THROTTLE
