Dahua Technology DH-XVR Series - 5.12 IoT Function

User's Manual
210
Step 1 On the rule line that you added, in the
Type
list, select
Intrusion
.

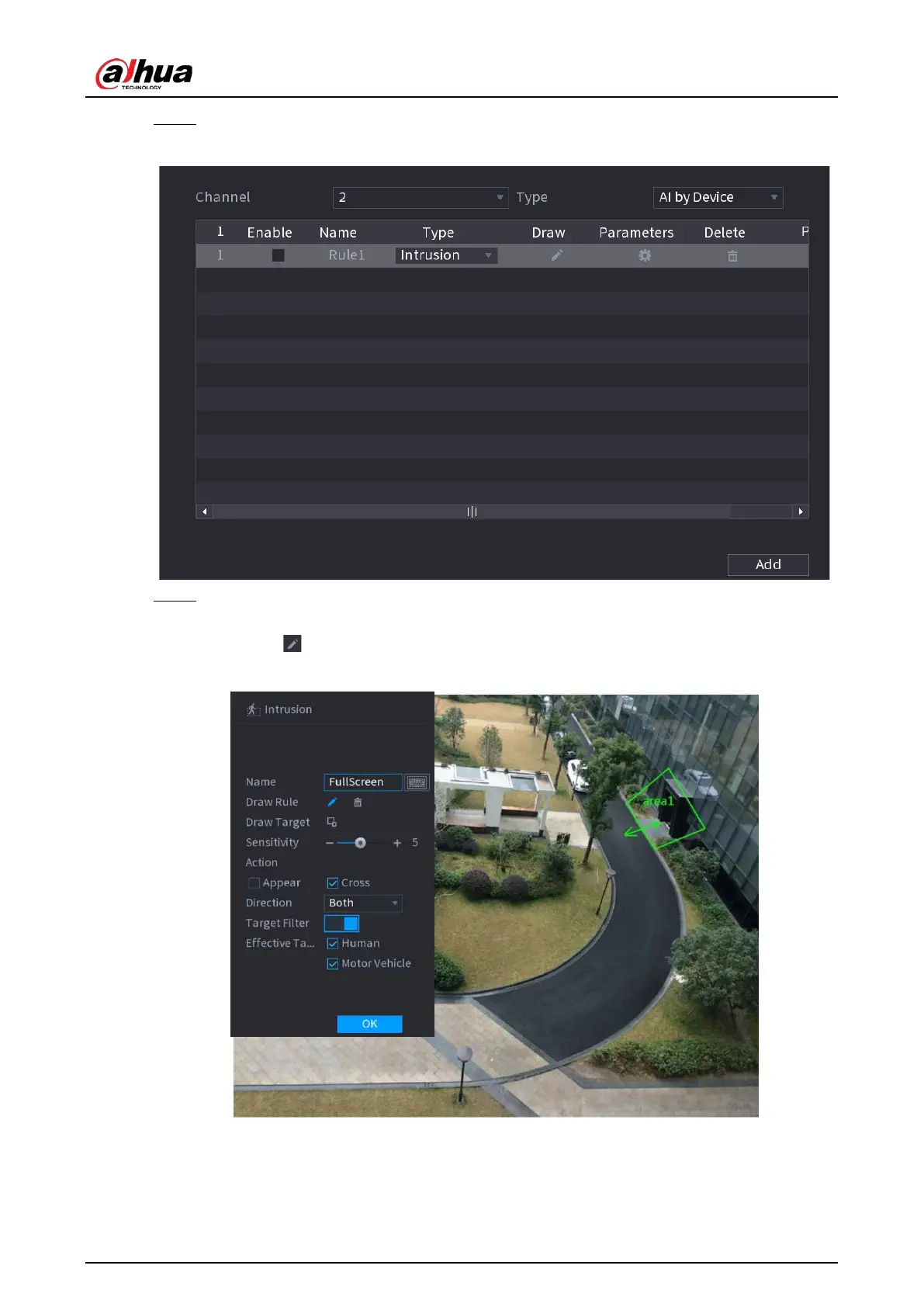

Figure 5-168 Intrusion
Step 2 Draw an area.
1) In the
Channel
list, select the channel that you want to configure the rules for.
2) Click .
Figure 5-169 Intrusion rule
3) Configure the settings for the parameters of drawing rules.
