130

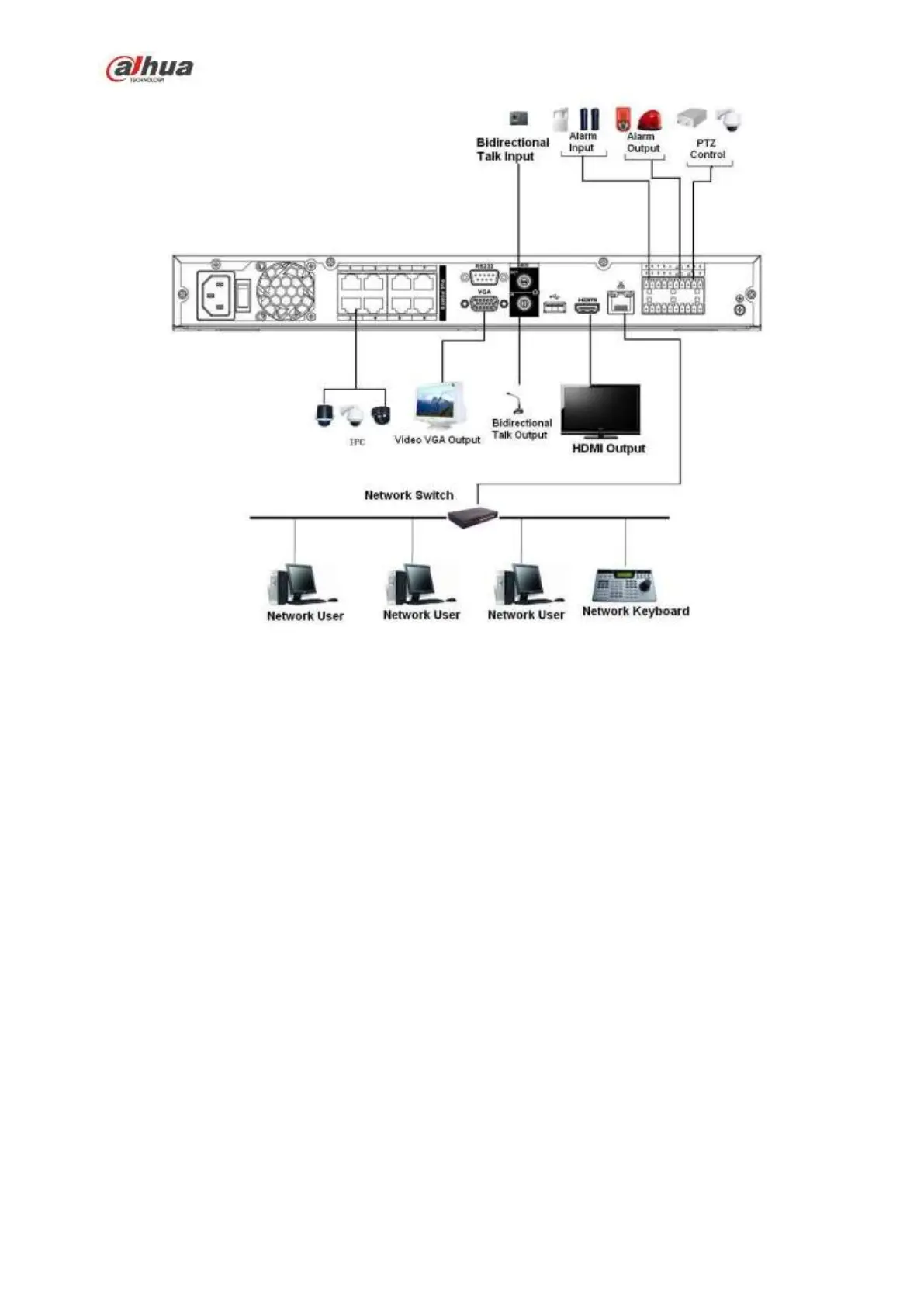

Figure 3-
15
3.5.16
NVR7
4 Series
Please refer
to Figure 3-
16
for co
nnection sa
m
ple.
The follow
ing figure is
based on the 74
series produ
ct.
142
144
Table of Contents
Table of Contents
2
Features and Specifications
14
Overview
14
Features
14
Specifications
15
NVR100/100-P Series
15
NVR11/11-P Series
17
NVR21-S2/NVR21-P-S2/NVR21-8P-S2 Series
20
NVR11H/11H-P Series
22
NVR11HS Series
24
NVR21HS-S2/21HS-P-S2/21HS-8P-S2 Series
26
NVR41/41-P/41-8P/41-W Series
28
NVR41H/41H-P/41H-8P Series
30
NVR22-S2/22-P-S2/22-8P-S2 Series
31
NVR42N Series
33
NVR42/42-P/42-8P Series
35
NVR42-16P Series
36
NVR42-4K/42-8P-4K Series
38
NVR52-4KS2/52-8P-4KS2/52-16P-4KS2 Series
40
NVR44/44-8P/44-16P Series
42
NVR44-4K Series
44
NVR54-4KS2/54-16P-4KS2 Series
45
NVR48-4K Series
47
NVR58-4KS2/58-16P-4KS2 Series
49
NVR48/48-16P Series
50
NVR72/72-8P Series
52
NVR74/74-8P/74-16P Series
54
NVR78/78-16P/78-RH Series
56
NVR70/70-R Series
57
NVR42V-8P Series
59
Front Panel and Rear Panel
62
Front Panel
62
NVR11/11-P/41/41-P/41-W/21-S2/21-P-S2/21-8P-S2 Series
62
NVR11H/11H-P/41H/41H-P/41H-8P Series
62
NVR11HS Series
63
NVR41-8P Series
63
NVR42/42-P/42-8P/72/72-8P Series
64
NVR21HS-S2/21HS-P-S2/21HS-8P-S2/22-S2/22-P-S2/22-8P-S2 Series
65
54-4KS2/58-4KS2 Series
66
NVR44/44-8P/44-16P/74/74-8P/74-16P Series
67
NVR48/48-16P/78/78-16P Series
69
NVR78-RH Series
71
NVR70/70-R Series
73
NVR42V-8P Series
75
Rear Panel
76
NVR100/100-P Series
76
NVR11/11-P Series
77
NVR41/41-P/41-8P/41-W Series
78
NVR21-S2/21-P-S2/21-8P-S2 Series
80
NVR11H/11H-P/41H/41H-P/41H-8P Series
82
NVR11HS Series
83
NVR21HS-S2/21HS-P-S2/21HS-8P-S2 Series
84
NVR22-S2/22-P-S2/22-8P-S2 Series
85
NVR42/42N/42-P/42-8P/42-16P Series
86
NVR42-4K/52-4KS2/52-8P-4KS2/52-16P-4KS2 Series
88
NVR42-8P-4K Series
90
NVR44/44-8P/44-16P Series
92
NVR44-4K/48-4K/54-4KS2/58-4KS2/54-16P-4KS2/58-16P-4KS2 Series
94
NVR48/48-16P Series
96
NVR72 Series
98
NVR72-8P Series
99
NVR74 Series
101
NVR74-8P/74-16P Series
103
NVR78 Series
105
NVR78-16P Series
106
NVR78-RH Series
108
NVR70 Series
110
NVR70-R Series
112
NVR42V-8P Series
114
Alarm Connection
115
Alarm Port
115
Alarm Input Port
116
Alarm Input and Output Port
117
Alarm Relay Specifications
117
Bidirectional Talk
118
Device-End to PC-End
118
PC-End to the Device-End
118
Mouse Operation
119
Remote Control
120
Device Installation
123
Check Unpacked NVR
123
About Front Panel and Rear Panel
123
HDD Installation
123
NVR100/100-P Series
123
NVR11/11-P/41/41-P/41-8P/41-W/21-S2/21-P-S2/21-8P-S2 Series
124
Nvr11H/11H-P/41H/41H-P/41H-8P/11Hs/21Hs-S2/21Hs-P-S2/21Hs-8P-S2
125
Series
125
Nvr42/42N/42-P/42-8P/42-16P/72/72-8P/42-4K/42-8P-4K/52-4Ks2/52-8P-4Ks2/52
126
4KS2/22-S2/22-P-S2/22-8P-S2 Series
126
NVR44/44-8P/44-16P/74/74-8P/74-16P/44-4K/54-4KS2/54-16P-4KS2 Series
126
NVR48/48-16P/NVR78/78-16P/48-4K/58-4KS2/58-16P-4KS2 Series
127
NVR78-RH Series
128
NVR70/70-R Series
129
NVR42V-8P Series
130
CD-ROM Installation
130
Connection Sample
132
NVR100/NVR100-P Series
132
NVR11/11-P/41/41-P/41-8P/41-W/21-S2/21-P-S2/21-8P-S2 Series
132
NVR11H/11H-P/41H/41H-P/41H-8P Series
133
NVR11HS Series
134
NVR21HS-S2/21HS-P-S2/21HS-8P-S2 Series
135
NVR22-S2/22-P-S2/22-8P-S2 Series
136
NVR42N Series
137
NVR42/42-P/42-8P/42-16P/52-4KS2/52-8P-4KS2/52-16P-4KS2 Series
138
NVR42-4K Series
138
NVR42-8P-4K Series
139
NVR44-4K/48-4K/54-4KS2/54-16P-4KS2/58-4KS2/58-16P-4KS2 Series
139
NVR44/44-8P/44-16P Series
140
NVR48/48-16P Series
141
NVR72 Series
142
NVR72-8P Series
142
NVR74 Series
143
NVR74-8P/74-16P Series
144
NVR78 Series
145
NVR78-16P Series
146
NVR78-RH Series
147
NVR70 Series
148
NVR70-R Series
149
NVR42V-8P Series
150
Local Basic Operation
152
Boot up and Shutdown
152
Boot up
152
Shutdown
152
Change/Reset Password
152
Change Password
152
Reset Password
153
Startup Wizard
154
Navigation Bar
158
Main Menu
159
Dual-Screen Operation
159
Output Screen
159
Tour
159
Ptz
159
Color
159
Search
159
Alarm Status
159
Channel Info
160
Remote Device
160
Network
160
HDD Manager
160
USB Manager
160
Smart Add
160
Remote Device
164
Remote Device Connection
164
Short-Cut Menu
165
166
Channel Name
167
Upgrade
168
Upnp
169
Built-In Switch Setup
169
Preview
170
Preview Control Interface
171
Right Click Menu
172
Preview Display Effect Setup
173
Video Color
173
Display
175
TV Adjust
176
Preview Tour Parameters
176
Fish Eye (Optional)
177
Fish Eye De-Warp During Preview Interface
177
Fish Eye De-Warp During Playback
180
Ptz
180
PTZ Settings
180
PTZ Control
181
PTZ Function Setup
183
Call PTZ Function
186
Record and Snapshot
187
Encode
187
Overlay
188
Snapshot
189
Schedule
190
Schedule Record
190
Schedule Snapshot
193
Motion Detect Record/Snapshot
195
Motion Detect Record
195
Motion Detect Snapshot
197
Alarm Record/Snapshot
198
Alarm Record
198
Alarm Snapshot
199
Manual Record/Snapshot
200
Manual Record
200
Manual Snapshot
201
Holiday Record/Snapshot
201
Holiday Record
201
Holiday Snapshot
203
Other Record/Snapshot
203
Playback and Search
203
Real-Time Playback
203
Search Interface
204
Smart Search
208
Accurate Playback by Time
209
Mark Playback
209
Picture Playback
210
Backup
211
File Backup
211
Import/Export
212
Backup Log
213
USB Device Auto Pop-Up
214
Alarm
215
Detect Alarm
215
Motion Detect
215
Tampering
219
Video Loss
220
IVS (Optional)
221
Tripwire （Optional
221
Intrusion (Cross Warning Zone) （Optional
225
Object Detect （Optional
227
Scene Change （Optional
228
Face Detect (Optional)
229
Audio Detect (Optional)
229
Alarm Output
230
Alarm Setup
231
Abnormality
236
Network
238
Tcp/Ip
238
Connection
240
Wifi Ap
241
Wifi
242
230
243
Pppoe
244
Ddns
245
Upnp
247
IP Filter
248
Email
250
Ftp
251
Snmp
253
Multicast
253
Alarm Centre
255
Auto Register
255
P2P
256
Easy Space
258
Switch
259
Network Test
259
Network Load
260
HDD Setup
261
Format
261
HDD Information
262
Advanced
264
HDD Detect
266
Manual Detect
267
Detect Report
267
RAID Manager
269
RAID Config
269
Hotspare Disks
270
Basic Setups
271
Device Setup
271
Data and Time
272
Holiday
273
Device Maintenance and Manager
273
System Info
273
Version
273
Bps
274
Online User
274
Remote Device Information
275
Remote
276
Device Status
276
Firmware
277
Log
278
Voice
279
File Manage
279
Schedule
280
Account
280
Add User
282
Modify User
284
Change Password
284
Add/Modify Group
284
Security Question
286
Update
286
Local Update
286
Uboot
287
Default
287
Rs232
288
Auto Maintain
289
Logout /Shutdown/Restart
290
Web Operation
291
General Introduction
291
Preparation
291
Log in
292
LAN Mode
293
Real-Time Monitor
295
Ptz
296
Image/Alarm-Out
298
298
Alarm Output
298
Zero-Channel Encode
298
WAN Login
299
Setup
300
Camera
300
Remote Device
300
302
Encode
305
Snapshot
306
Video Overlay
307
Path
307
Channel Name
308
IPC Upgrade
308
Network
309
Tcp/Ip
309
Connection
310
Wifi Ap
311
Wifi
312
299
312
Cdma/Gprs
312
Mobile
313
Pppoe
314
Ddns
314
IP Filter
316
Email
316
Upnp
318
Snmp
319
Multicast
320
Auto Register
320
Alarm Centre
321
Https
321
Create Server Certificate
322
Download Root Certificate
322
View and Set HTTPS Port
325
Login
326
P2P
326
Event
327
Video Detect
327
Motion Detect
327
Video Loss
331
Tampering
332
IVS (Optional)
332
Tripwire
332
Intrusion (Cross Warning Zone)
334
Object Detect
336
Change Scene
337
Face Detect (Optional)
338
Audio Detect (Optional)
339
Alarm
339
Local Alarm
339
Net Alarm
342
IPC External Alarm
342
IPC Offline Alarm
343
Abnormality
344
Storage
346
Schedule
346
HDD Manager
348
Local Storage
348
Hdd
348
Ftp
348
Record Control
349
RAID Manager
350
RAID Config
350
Hotspare Disks
350
Storage
351
Main Stream
351
Sub Stream
351
Snapshot
352
Setting
352
General
352
Date and Time
353
Holiday Setup
354
Account
354
User Name
355
Group
356
Display
358
Tour
359
Alarm out
359
Default
360
Import/Export
360
Auto Maintain
361
Upgrade
361
Rs232
362
Ptz
362
Information
364
Version
364
Log
364
Online User
365
Playback
365
Search Record
366
File List
366
Playback
367
Download
368
Load more
368
Download by File
368
Download by Time
369
Watermark
370
Alarm
370
Log out
371
Un-Install Web Control
372
Glossary
373
Faq
374
Appendix A HDD Capacity Calculation
379
Appendix B Compatible Network Camera List
380
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Dahua DHI-NVR5208-8P-4KS2 and is the answer not in the manual?
Ask a question
Dahua DHI-NVR5208-8P-4KS2 Specifications
General
Brand
Dahua
Model
DHI-NVR5208-8P-4KS2
Category
Network Hardware
Language
English
Related product manuals
Dahua DHI-NVR5208-4KS2
361 pages
Dahua DHI-NVR5216-16P-4KS2E
23 pages
Dahua DHI-NVR5432-EI
471 pages
Dahua DHI-NVR4216-4KS2
24 pages
Dahua DHI-NVR2108-8P-4KS2
23 pages
Dahua DHI-NVR608R-64-4KS2
402 pages
Dahua DS04-AI400
39 pages
Dahua D-NVR1104HS-W-S2
33 pages
Dahua D-NVR4108HS-4KS2/L
33 pages
Dahua NVR5208-EI
489 pages
Dahua NVR4216-16P-4KS2
411 pages
Dahua Lite NVR2104-4KS2
463 pages
Need help?
General
To Next Page
