180
Figure 4-64
Quick Setup

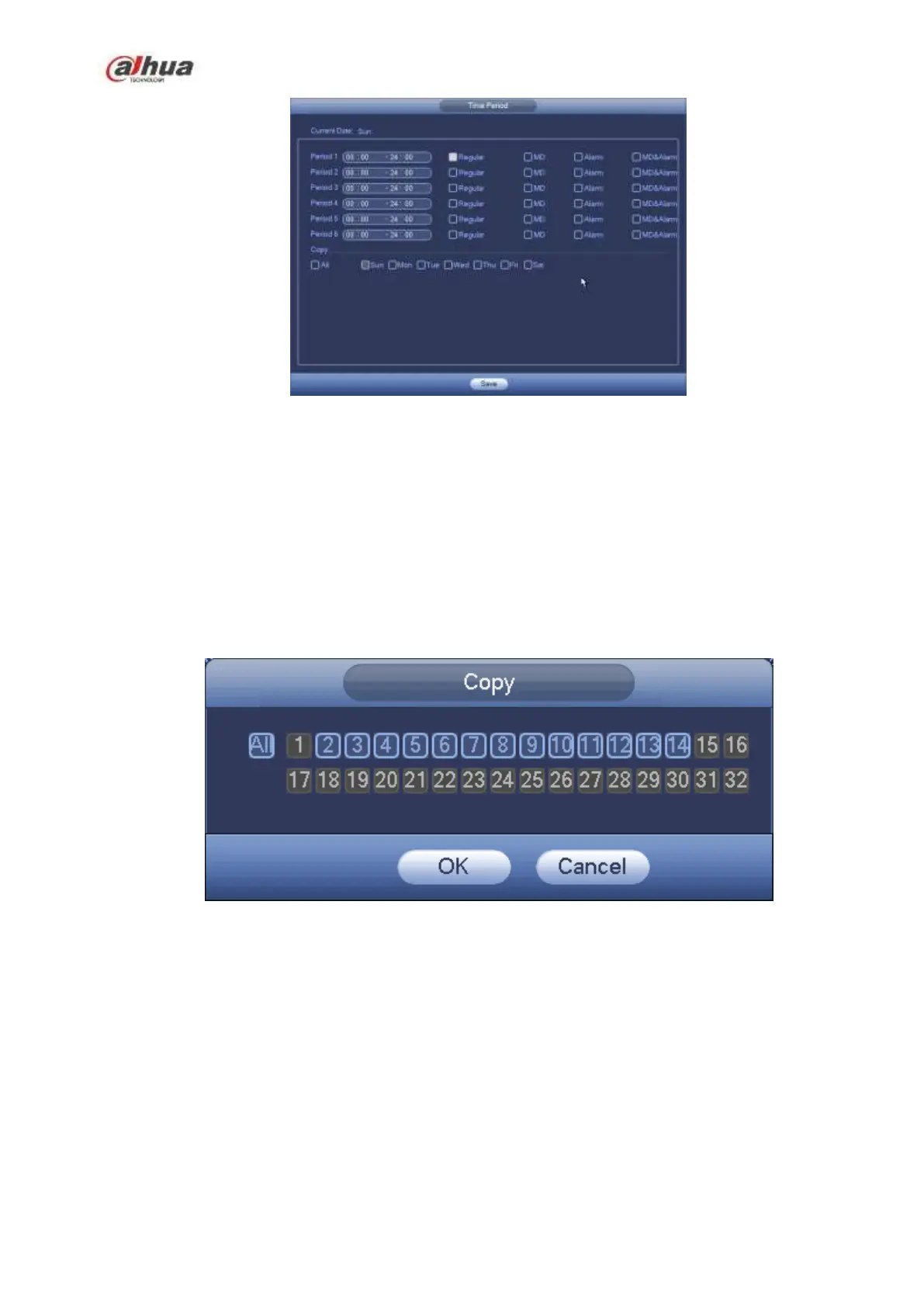

Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy
button, you can go to interface Figure 4-65. You can see current channel name is grey such as channel 1.
Now you can select the channel you want to paste such as channel 5/6/7. If you want to save current
setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current
copy setup. Click the OK button in the Encode interface, the copy function succeeded.
Please note, if you select ALL in Figure 4-65, the record setup of all channels are the same and the Copy
button becomes hidden.
Figure 4-65
Click OK button to save current setup.
4.10.2.2 Schedule Snapshot
From Main menu->Setting->Storage->Record or on the preview interface, right click mouse and then
select record item, you can see Figure 4-66.
Select snapshot channel and enable snapshot function. Click Save button.
