2 Front Panel and Rear Panel
2.1 Front Panel
2.1.1 NVR11/11-P/41/41-P/41-W/21-S2/21-P-S2/21-8P-S2 Series

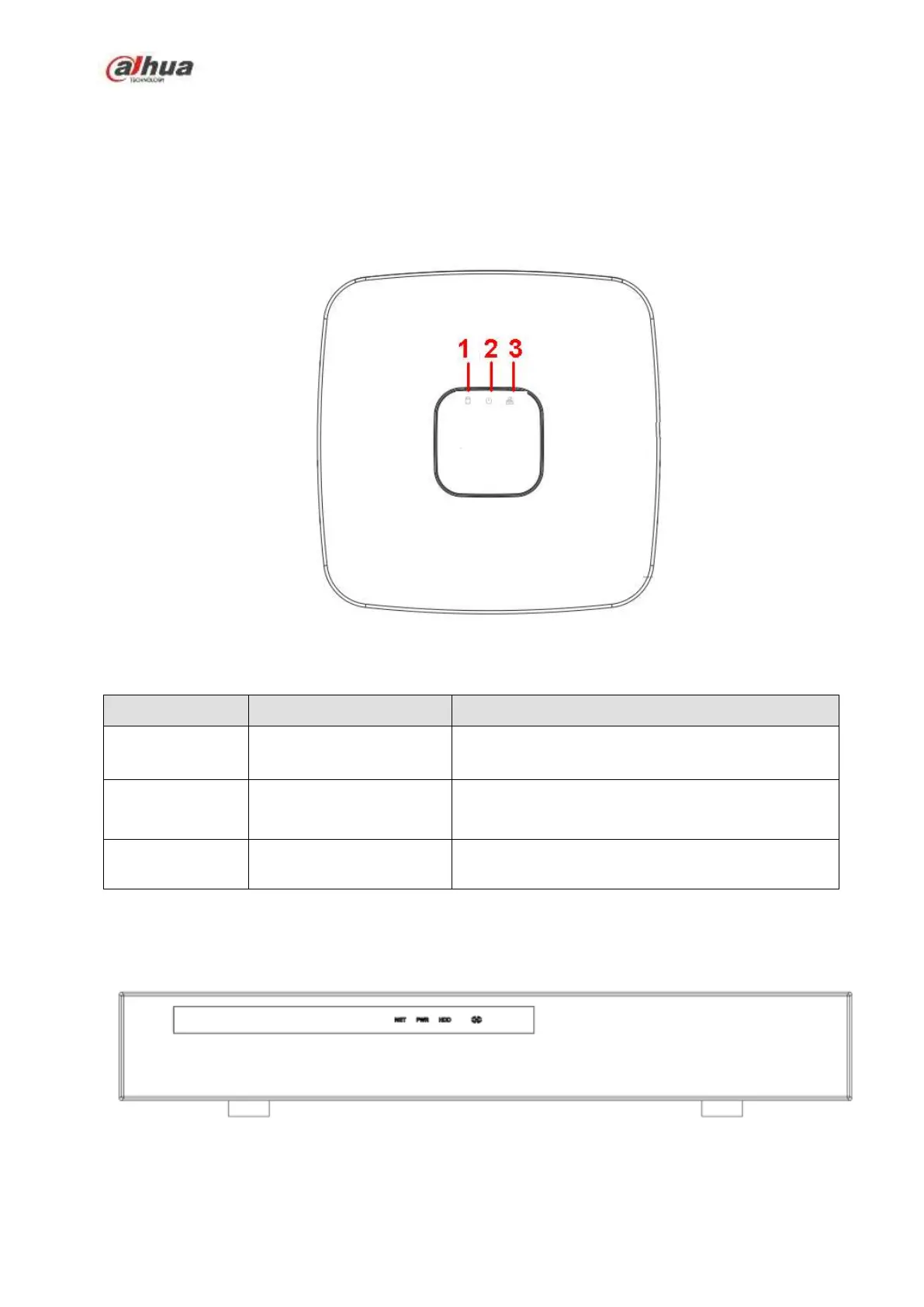

The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 NVR11H/11H-P/41H/41H-P/41H-8P Series
The front panel is shown as in Figure 2-2.
Figure 2-2
Please refer to the following sheet for detailed information.

Dahua DHI-NVR5208-8P-4KS2 Specifications

General

Model	DHI-NVR5208-8P-4KS2
PoE Ports	8
Multi-screen Display	Yes
OSD	Yes
Video Detection and Alarm	Yes
Relay Output	1
Smart Phone	Yes
USB	2 x USB 2.0
Video Input	8
Storage Capacity	Up to 10TB per HDD
HDD Bays	2
Network Interface	1 RJ-45 port (10/100/1000 Mbps)
Video Output	HDMI, VGA
Max. User Access	128
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤ 10W
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Operating Humidity	10% to 90%
