5.8.5.9 RS232

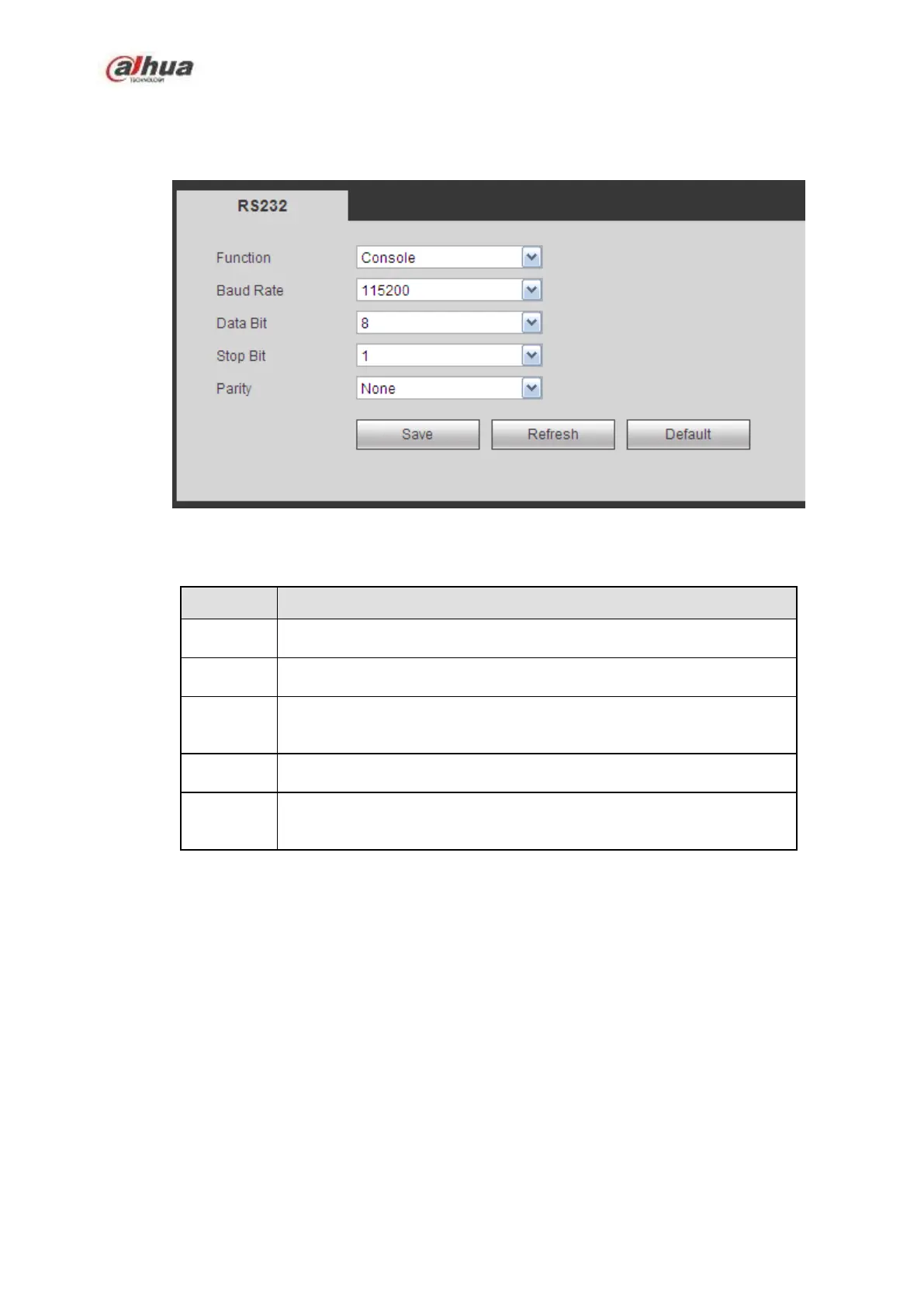

The RS232 interface is shown as in Figure 5-112.
Figure 5-112
Please refer to the following sheet for detailed information.
Select the corresponding dome protocol.
Default setup is console.
Select the baud rate.
Default setup is 115200.
The value ranges from 5 to 8.
Default setup is 8.
There are two options: 1/2.
Default setup is 1.
There are five options: none/odd/even/space/mark.
Default setup is none.
5.8.5.10 PTZ
The PTZ interface is shown as in Figure 5-113 (Local) and Figure 5-114 (Remote).
Before setup, please check the following connections are right:
PTZ and decoder connection is right. Decoder address setup is right.
Decoder A (B) line connects with NVR A (B) line.
Click Save button after you complete setup, you can go back to the monitor interface to control speed
dome.
