50
Icon
Name
Function
NET
Network status
indicator light
The red light becomes on when the network
connection is abnormal.
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
HDD
HDD status
indictor light
The red light becomes on when HDD is abnormal.
IR
Remote control
receiver
It is to receive signal from the remote control.
2.1.3 NVR11HS Series

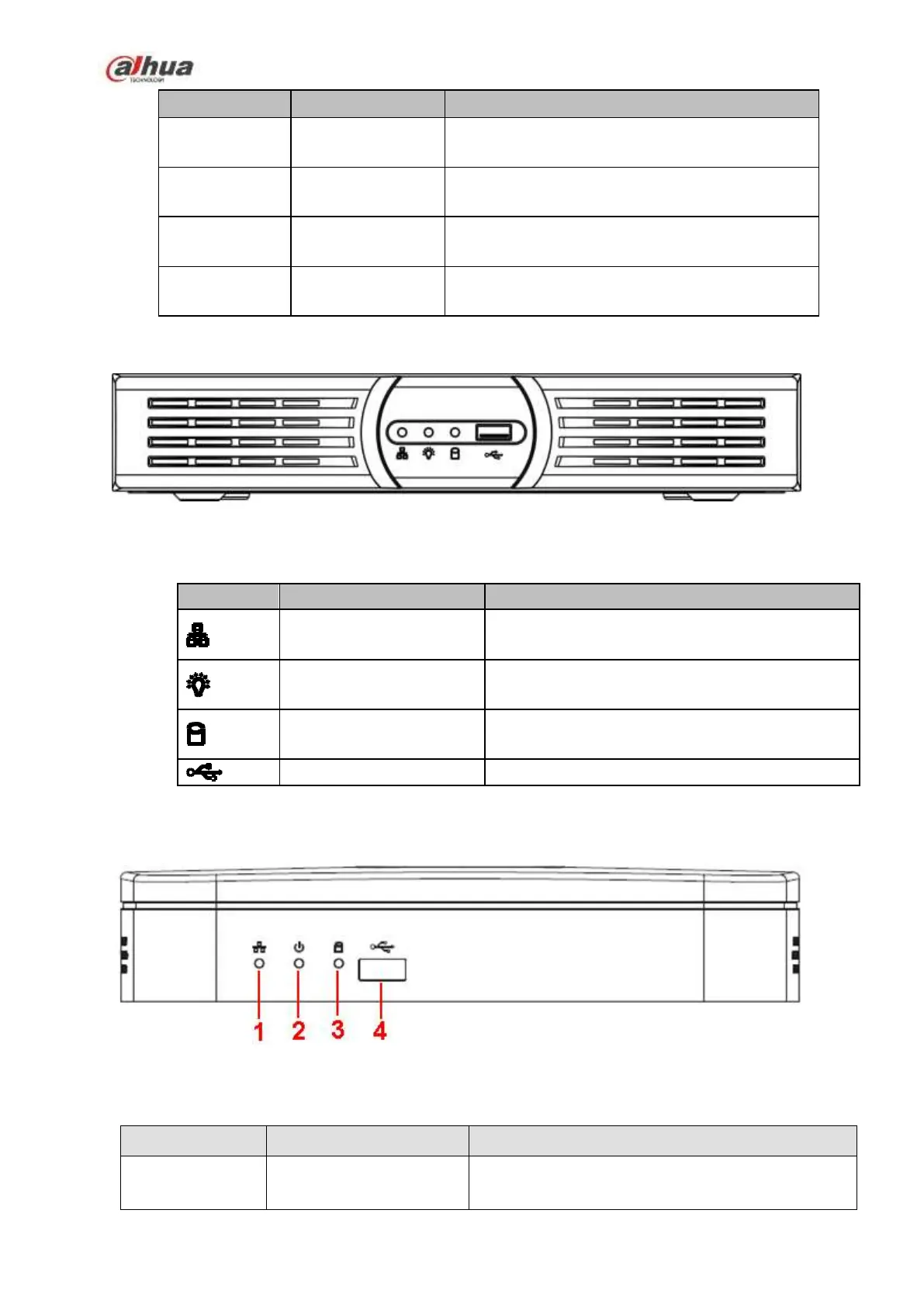

The front panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for detailed information.
Icon
Name
Function
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
Power status indicator
light
The red light becomes on when the power
connection is OK.
HDD status indicator light
The red light becomes on when the HDD is
abnormal.
USB port
Connect to USB mouse,USB devices and etc.
2.1.4 NVR41-8P Series
The front panel is shown as below. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
SN
Name
Function
1
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
