72
Port Name
Connection
Function
VGA
VGA video output
port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio signal to
the devices such as the sound box.
Bidirectional talk output.
Audio output on 1-window video monitor.
Audio output on 1-window video playback.
GND
Ground end
PoE
PORTS
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to provide
power to the network camera.
2.2.8 NVR22-S2/22-P-S2/22-8P-S2 Series

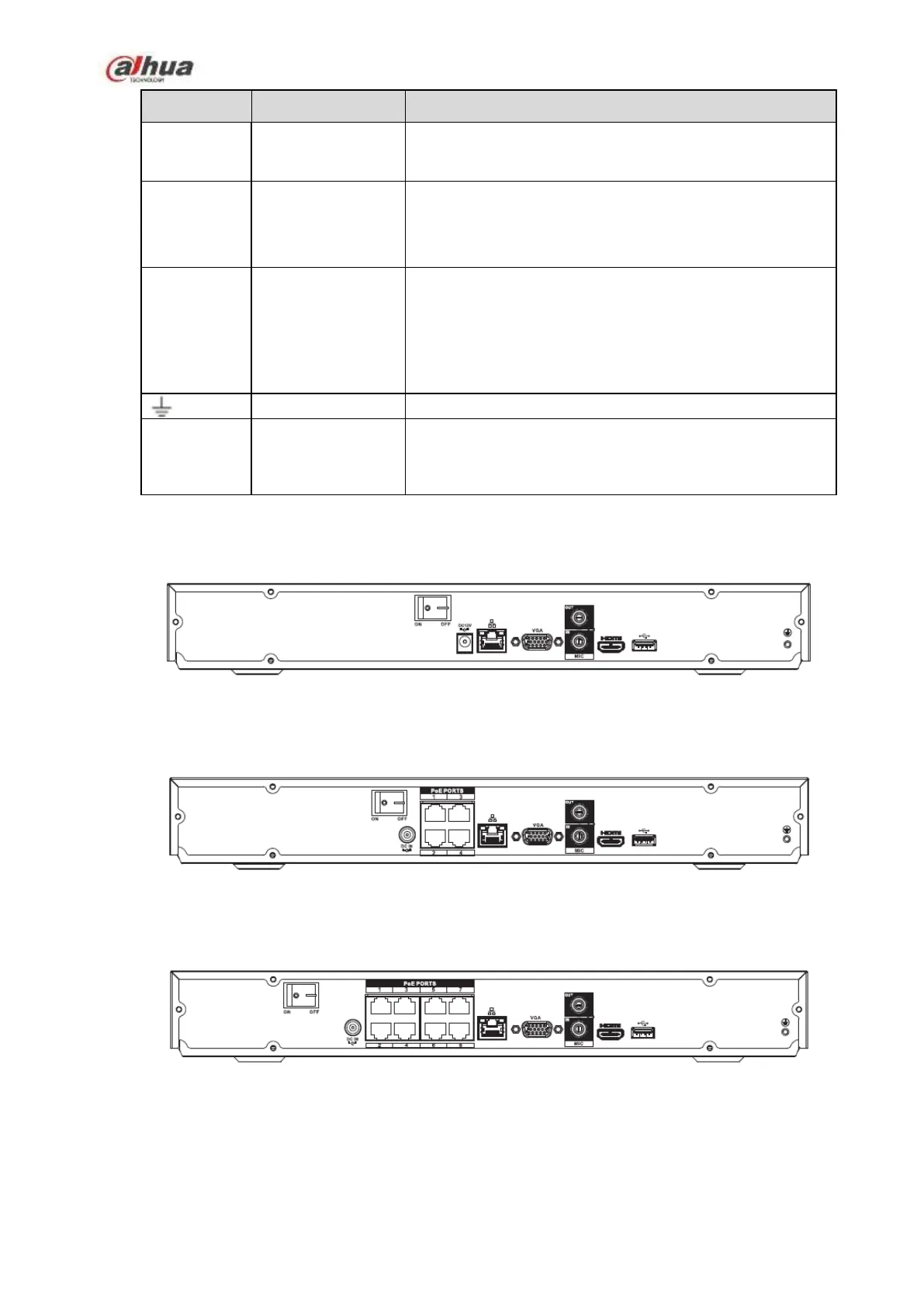

The NVR22-S2 series rear panel is shown as below. See Figure 2-35.
Figure 2-35
The NVR22-P-S2 series rear panel is shown as below. See Figure 2-36.
Figure 2-36
The NVR22-8P-S2 series rear panel is shown as below. See Figure 2-37.
Figure 2-37
Please refer to the following sheet for detailed information.
