Interface Operation 60

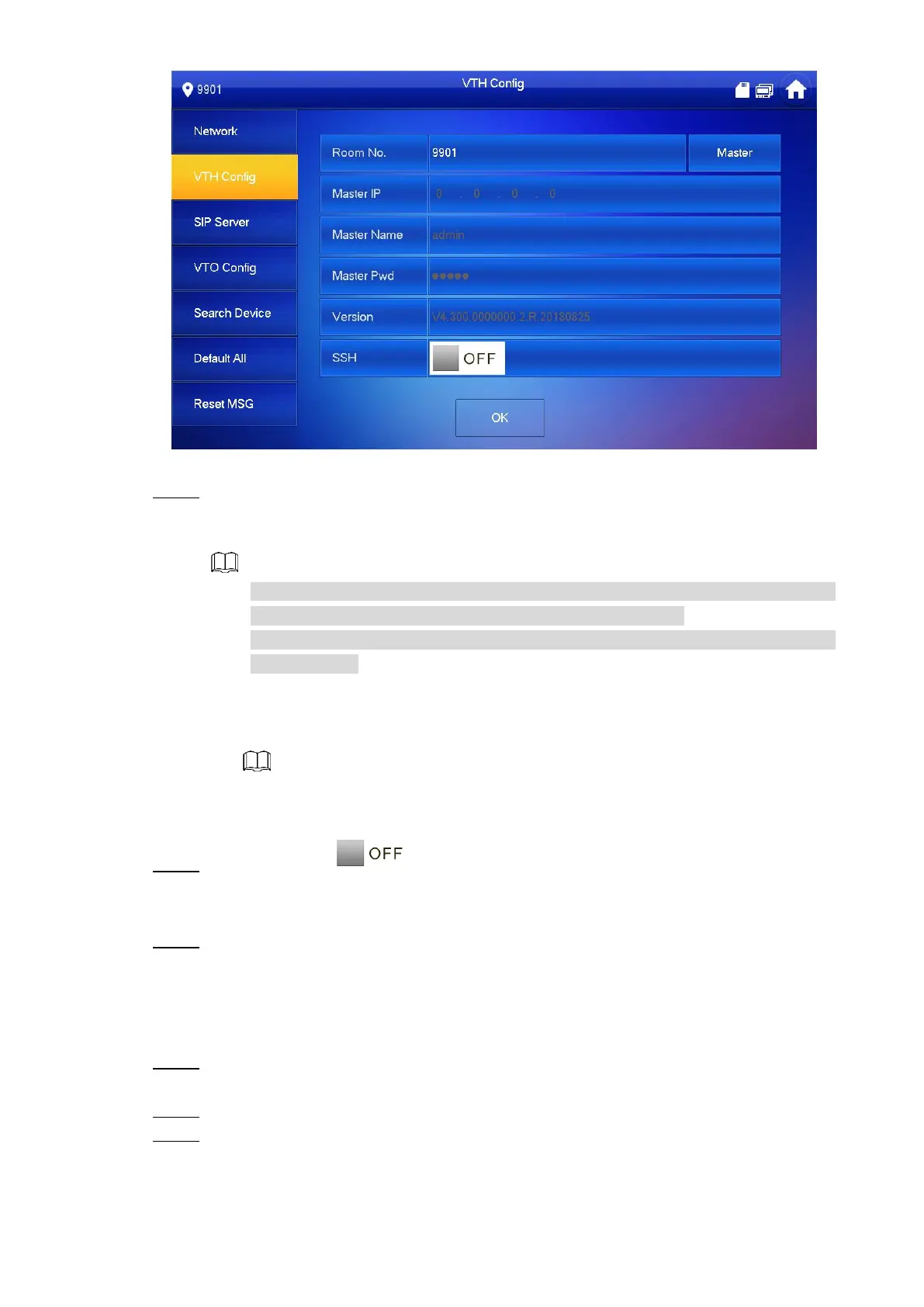

Figure 6-24
Set VTH info. Step 4
Be used as a master VTH.
Enter “Room No.” (such as 9901 or 101#0).
“Room no.” shall be the same with “VTH Short No.”, which is set when adding
VTH at WEB interface. Otherwise, it will fail to connect VTO.
In case of extension VTH, room no. shall end with #0. Otherwise, it will fail to
connect VTO.
Be used as an extension VTH.
1) Press [Master] and switch to “Extension”.
2) Enter “Room No.” (such as 101#1) and “Master IP” (IP address of master VTH).
“User Name” and “Password” are the user name and password of master VTH.
Default user name is admin, and the password is the one set during initialization.
(Optional) press to enable SSH. Step 5
After SSH is enabled, the debugging terminal connects VTH through SSH protocol, so
as to operate and debug it.
Press [OK] to save settings. Step 6
6.3.4 VTO Config
Add VTO and fence station info, and bind VTH with VTO on the VTH side.
Press [Setting] for over 6 seconds. Step 1
The system pops up “Password” prompt box.
Enter the password set during initialization, and press [OK]. Step 2
Press [VTO Config]. Step 3
The system displays “VTO Config” interface, as shown in Figure 6-25.
