185
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this
series DVR for the first time, please refer to this part first.
2.1 Front Panel
2.1.1 HCVR5104C/HCVR51XXC-V2/HCVR71XXC-V2/
HCVR4104/4108C-S2/ HCVR5104 5108C-S2/ HCVR7104C-S2/
HCVR2108C-S2/ HCVR410XC-S3/HCVR510XC-S3/7104C-S3/
XVR410XC/XVR510XC/7104C/XVR51XXC-4M/ XVR41XXC-S2/
XVR51XXC-S2 Series

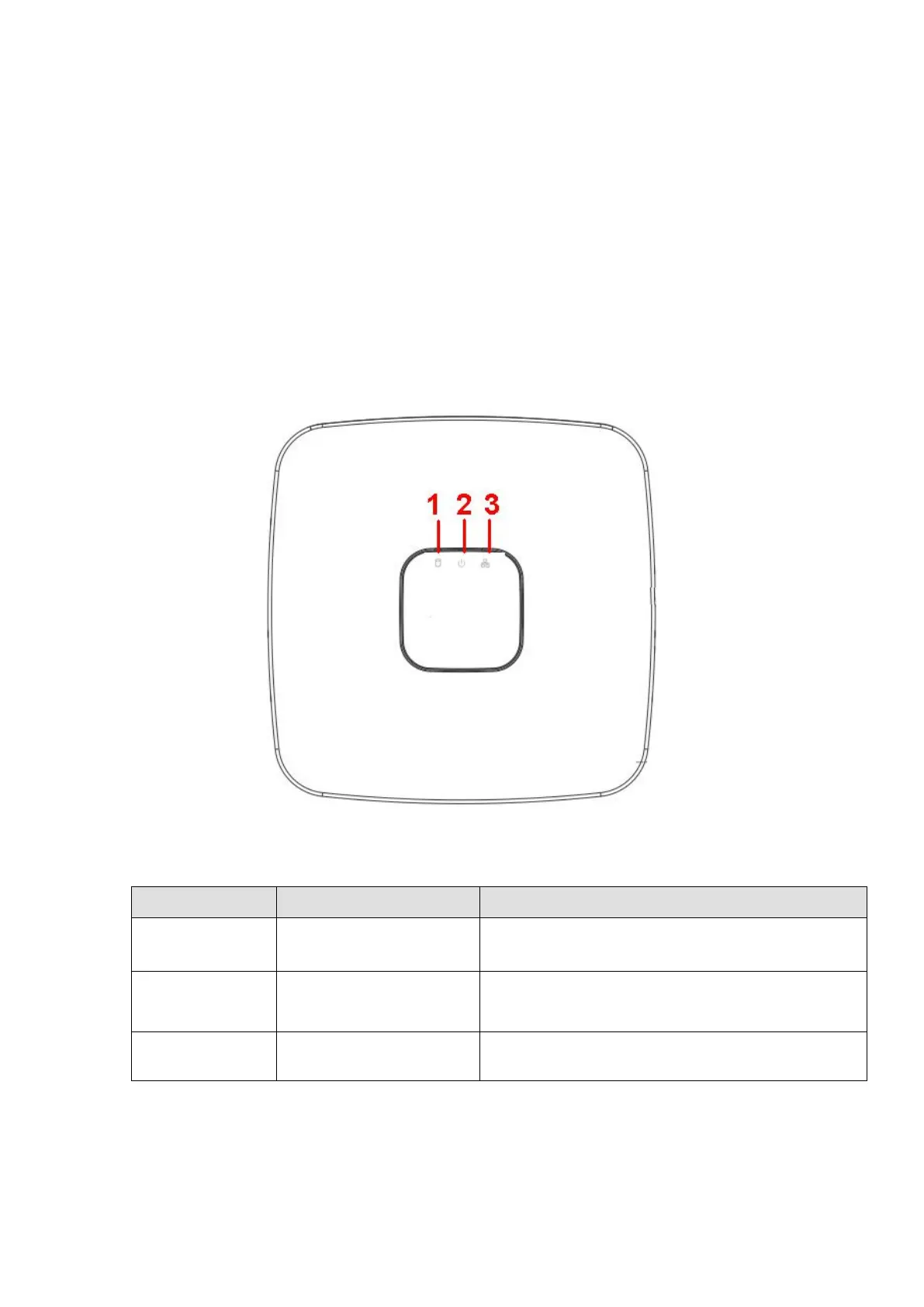

The front panel is shown as below. See Figure 2- 1.
Figure 2- 1
Please refer to the following sheet for front panel button information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 HCVR51XXH/HCVR51XXHE/ HCVR51XXH-V2 /
HCVR51XXHE-V2/HCVR71XXH-V2 / HCVR71XXHE-V2 Series
The front panel is shown as below. See Figure 2- 2.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5108HS and is the answer not in the manual?

Dahua XVR5108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Video Output1 HDMI, 1 VGA
USB Interface2 USB 2.0
Power Supply12V DC/2A
Video Channels8 channels
HDD CapacityUp to 6TB
Operating Temperature-10°C to +55°C (+14°F to +131°F)
Audio Input/Output1/1 RCA
Internal HDD1 SATA interface, up to 6TB
Max IP Camera Input12 channels
Recording Resolution1080P/720P
HDMI Output1
VGA Output1
Operating Humidity10%–90% (RH), non-condensing
IP Video Input8+4 channels
