Dahua XVR5108HS User Manual

346

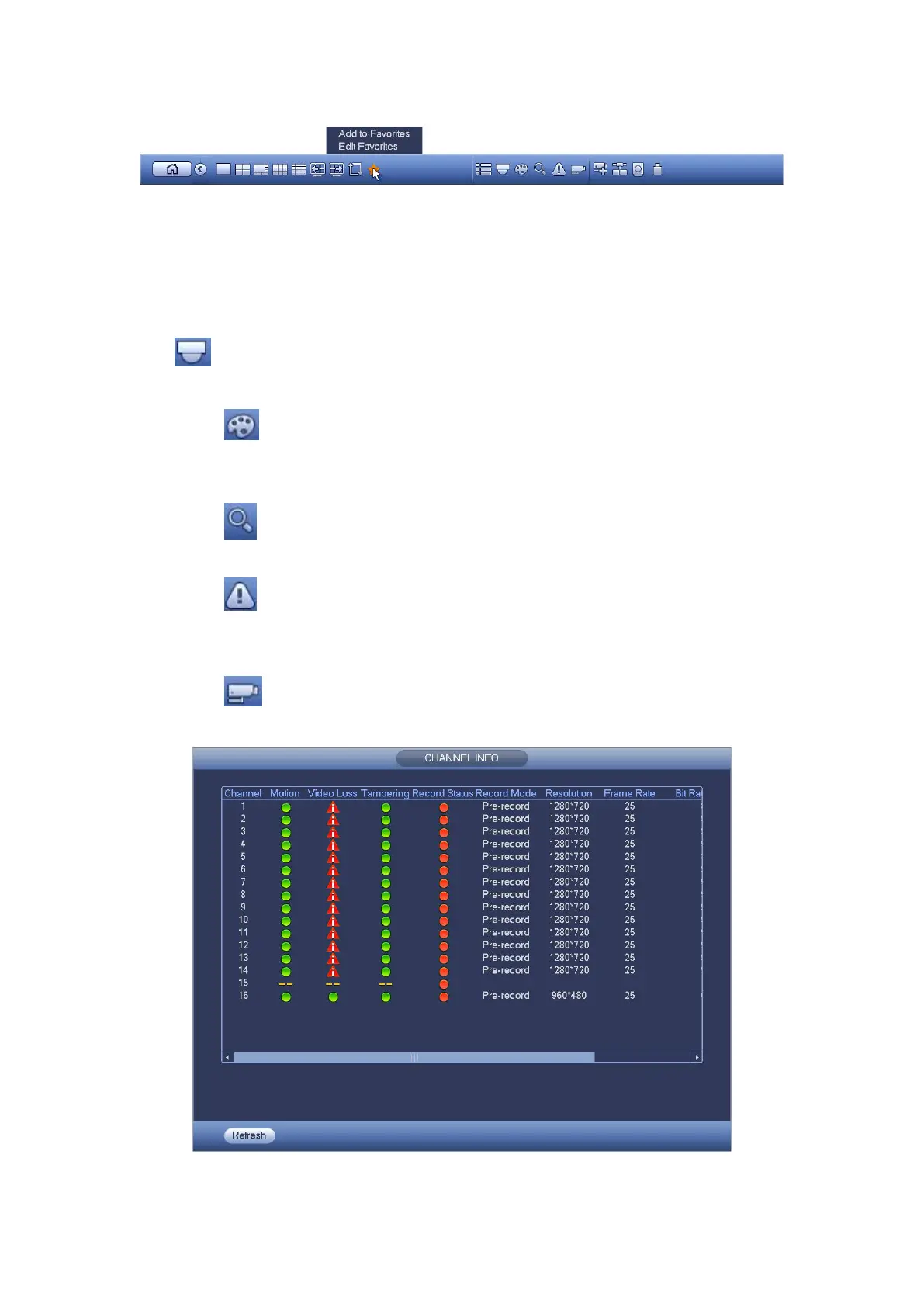

Figure 4- 67
4.4.6 Channel
It is to pop up channel tree. You can left click to select a channel on the tree and then drag
it to the preview window on the left pane.
4.4.7 PTZ
Click , system goes to the PTZ control interface. Please refer to chapter 4.3.3.
4.4.8 Color
Click button , system goes to the color interface. Please refer to chapter 4.3.5.
4.4.9 Search
Click button , system goes to search interface. Please refer to chapter 4.7.1
4.4.10 Alarm Status
Click button , system goes to alarm status interface. It is to view device status and
channel status. Please refer to chapter 4.9.3.
4.4.11 Channel Info
Click button , system goes to the channel information setup interface. It is to view
information of the corresponding channel. See Figure 4- 68.
Figure 4- 68

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
Multi-channel Playback	Up to 8 channels
