Dahua XVR5108HS User Manual

501
Parameter
Function
Scan
 Select Scan from the dropdown list.
 Click Set button, you can set scan left and right limit.
 Use direction buttons to move the camera to you desired location
and then click left limit button. Then move the camera again and
then click right limit button to set a right limit.
Preset
 Select Preset from the dropdown list.
 Turn the camera to the corresponding position and Input the
preset value. Click Add button to add a preset.
Tour

Select Tour from the dropdown list.

Input preset value in the column. Click Add preset button, you
have added one preset in the tour.

Repeat the above procedures you can add more presets in one
tour.

Or you can click delete preset button to remove one preset from
the tour.
Pattern
 Select Pattern from the dropdown list.
 You can input pattern value and then click Start button to begin
PTZ movement such as zoom, focus, iris, direction and etc. Then
you can click Add button to set one pattern.
Aux
 Please input the corresponding aux value here.
 You can select one option and then click AUX on or AUX off
button.
Light and
wiper
You can turn on or turn off the light/wiper.

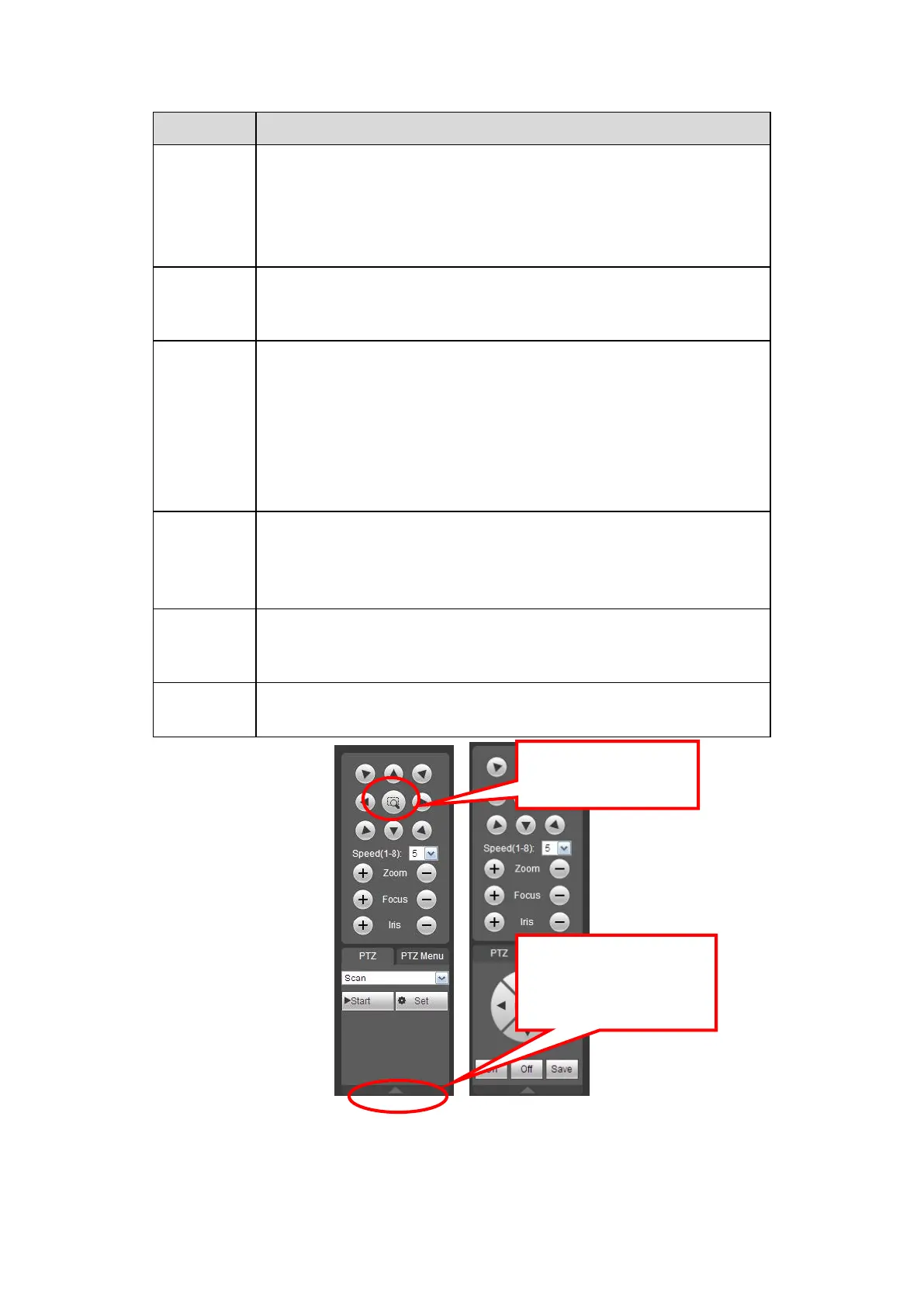

Figure 5- 18
5.8 Image/Relay-out
You can click this icon to
display or hide the PTZ
control platform.
3D Intelligent Positioning
Key

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
