2.1.3 HCVR51XXHC/ HCVR51XXHC-V2/ HCVR71XXHC-V2 Series

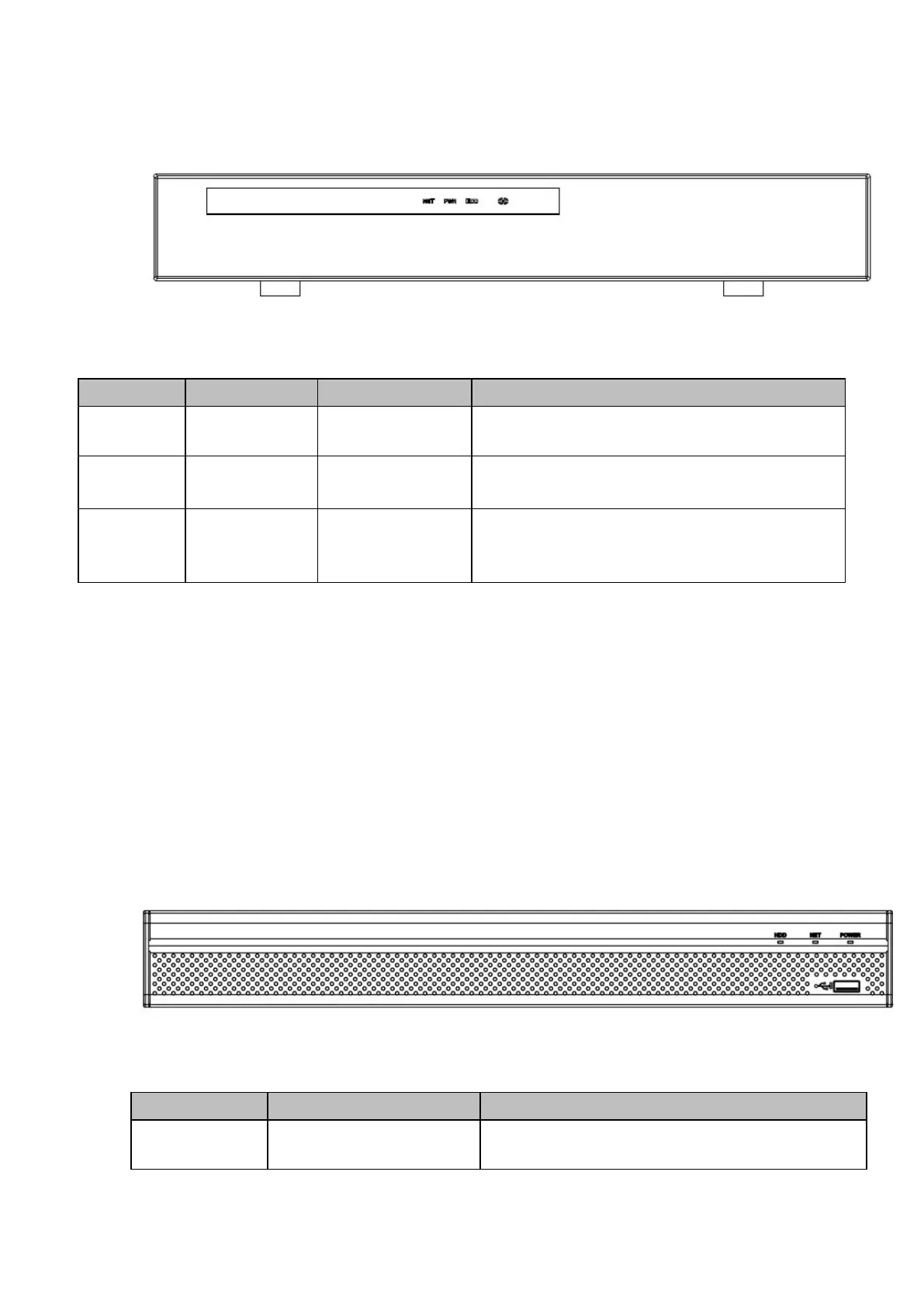

The interface is shown as below. See Figure 2- 3.
Figure 2- 3
Please refer to the following sheet for front panel button information.
SN
Icon
Name
Function
1
NET
Network abnormal
indicator light
Network error occurs or there is no network
connection, the light becomes red to alert you.
2
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
3
HDD
HDD abnormal
indicator light
HDD error occurs or HDD capacity is below
specified threshold value, the light becomes red
to alert you.
2.1.4 HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/
HCVR710XH-S2/ HCVR710XHE-S2/
HCVR41XXHE-S3/HCVR51XXH-S3/HCVR51XXHE-S3/HCVR71X
XH-S3/HCVR71XXHE-S3 /HCVR41XXHS-S2/ HCVR21XXHS-S2/
HCVR21XXHS-S3/HCVR41XXHS-S3/51XXHS-S3/7104HS-S3/
XVR41XXHE/XVR51H/XVR51XXHE/XVR71XXH/XVR71XXHE
/HCVR41XXHS-S2/ HCVR21XXHS-S2/
XVR21XXHS/XVR41XXHS/XVR51XXHS/XVR7104HS/HCVR71XX-
4M/HCVR710XH-4K/XVR51XXHS-4M/XVR51XXHS-4KL/XVR51X
XH-4M/ XVR51XXH-4KL/
XVR71XXHE-4KL/XVR51XXH-S2/XVR51HE-S2/ XVR41XXHS-S2/
XVR51XXHS-S2 Series
The front panel is shown as below. See Figure 2- 4.
Figure 2- 4
Please refer to the following sheet for front panel button information.
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
